AXIS Q1656-B Box Camera 02164-031

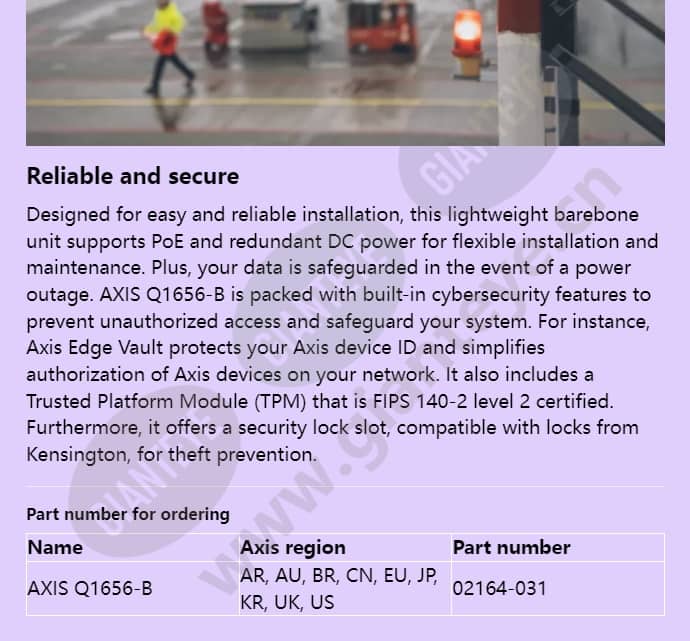

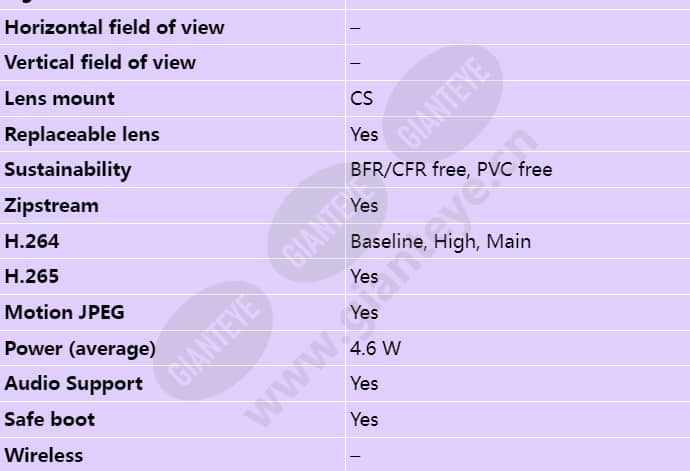

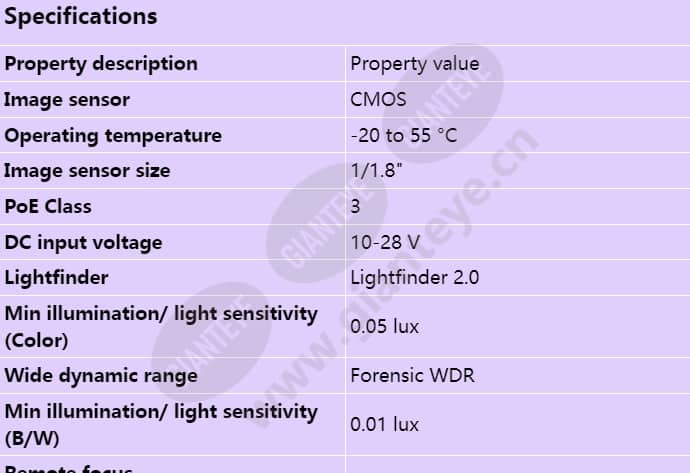

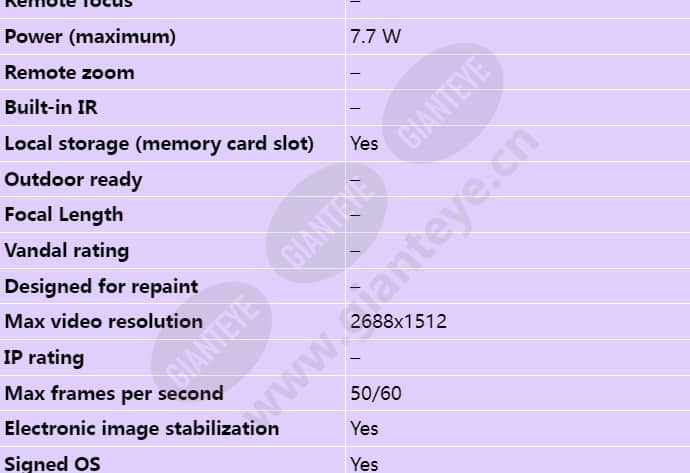

with locks from Kensington, for theft prevention. Part number for ordering Name Axis region Part number AXIS Q1656-B AR, AU, BR, CN, EU, JP, KR, UK, US 02164-031 Image sensor CMOS Image sensor size 1/1.8" Lightfinder Lightfinder 2.0 Wide dynamic range Forensic WDR Min illumination/ light sensitivity (Color) 0.05 lux Min illumination/ light sensitivity (B/W) 0.01 lux Max video resolution 2688x1512 Max frames per second 50/60 Electronic image stabilization Yes Lens mount CS Replaceable lens Yes Zipstream Yes H.264 Baseline, High, Main H.265 Yes Motion JPEG Yes Audio Support Yes PoE Class 3 Signed OS Yes Secure boot Yes Local storage (memory card slot) Yes Operating temperature -20 to 55 °C Sustainability BFR/CFR free, PVC free Power (max) 7.7 W Power (average) 4.6 W DC input voltage 10-28 V
