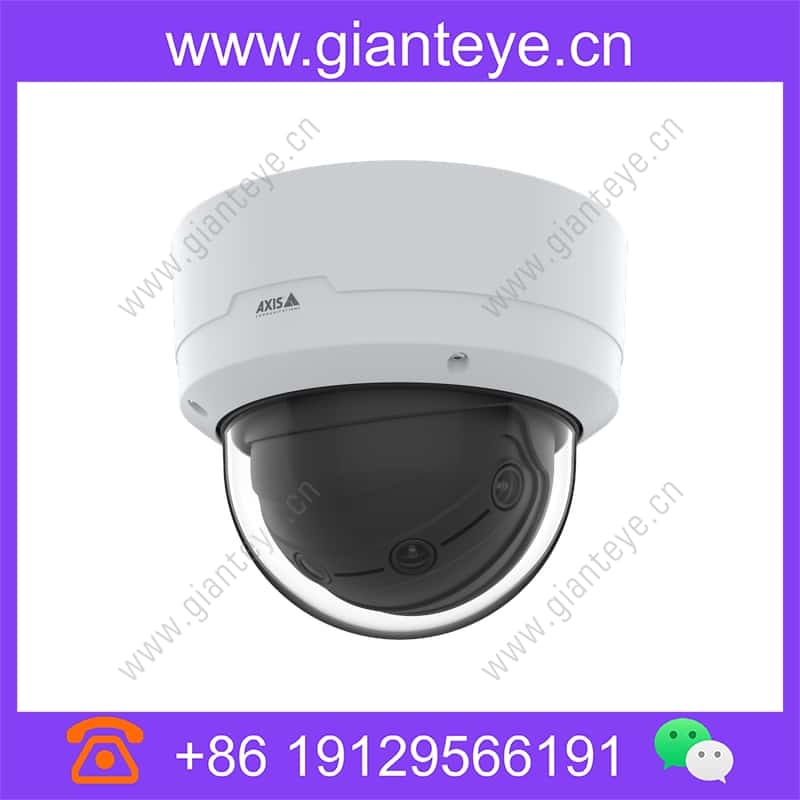

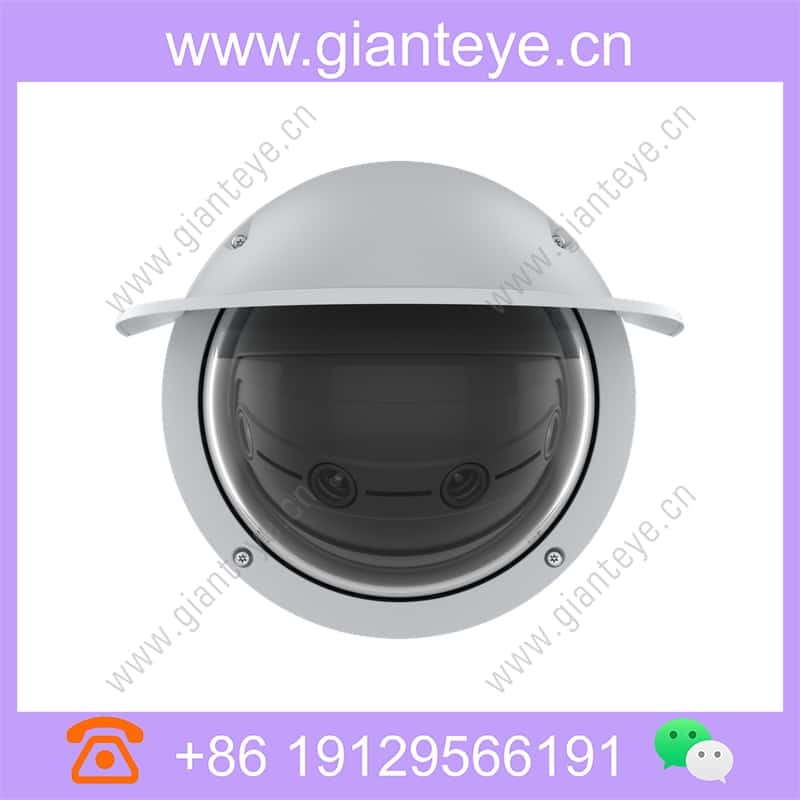

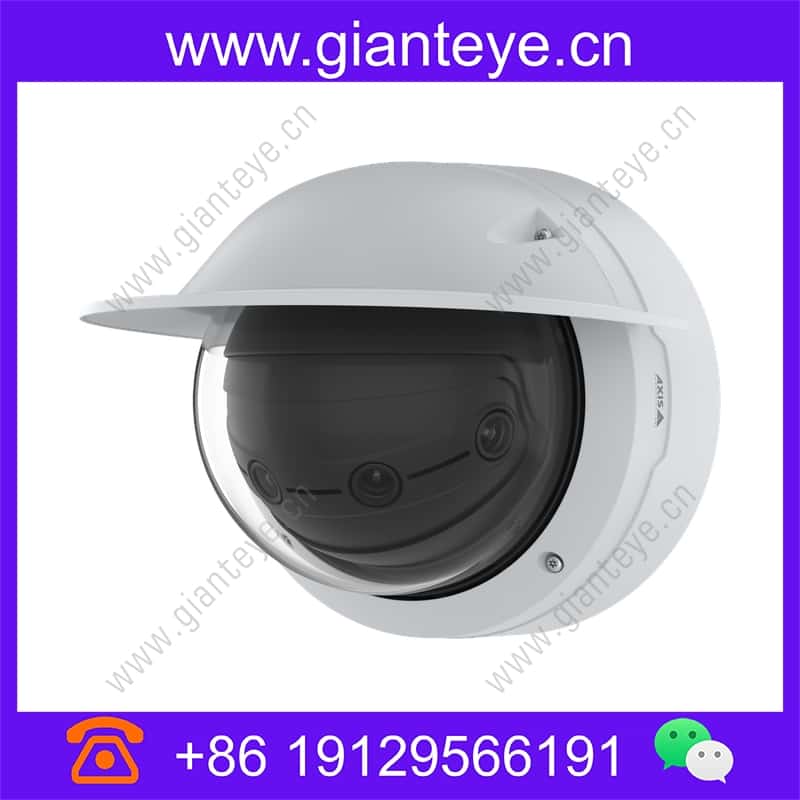

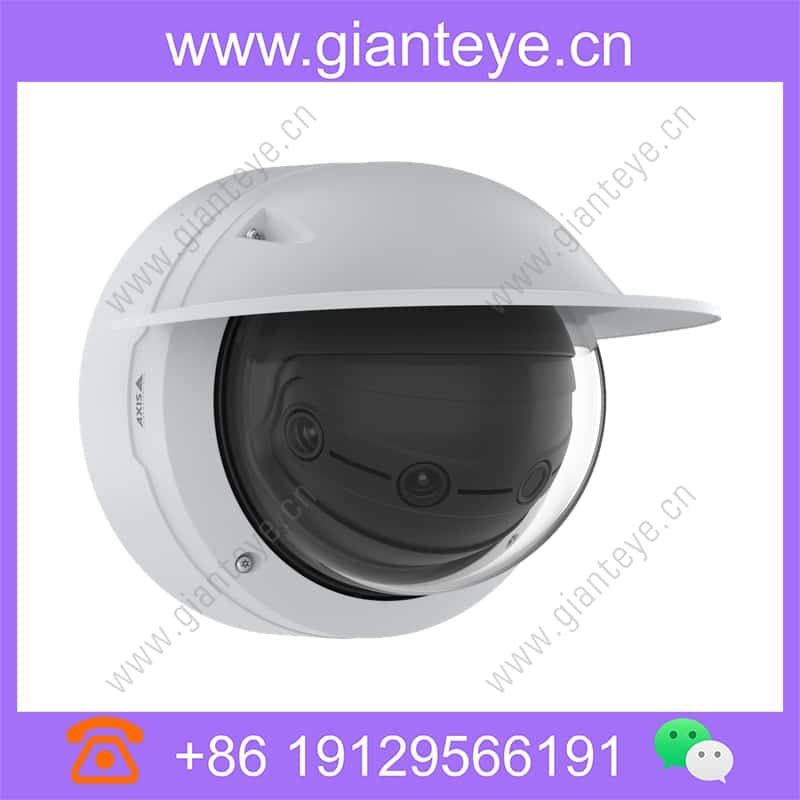

AXIS Q4809-PVE Panoramic Camera 02658-001

Brand: AXIS
Model: AXIS-Q4809-PVE

from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified, secure cryptographic key storage and operations. Part number for ordering Name Axis region Part number AXIS Q4809-PVE AR, AU, BR, CN, EU, JP, KR, UK, US 02658-001 Image sensor CMOS Image sensor size 1/2.3" Lightfinder Lightfinder Wide dynamic range Forensic WDR Max video resolution 10240x2560 Max frames per second 30 Day and Night functionality Yes Focal length 5.05 mm Horizontal field of view 180 ° Vertical field of view 45 ° Zipstream Yes H.264 Baseline, High, Main H.265 Yes Audio Support Yes Signed OS Yes Secure boot Yes Local storage (memory card slot) Yes Operating temperature -40 to 50 °C Outdoor Ready Yes Vandal rating IK10 IP rating IP66, IP67 Sustainability BFR/CFR free, PVC free

Product Features


Seamless 180° view, high-pixel, 26 MP

  • 10K multisensor camera with one IP address

  • 180° horizontal, 45° vertical coverage

  • AI-powered with support for advanced analytics

  • Horizon straightening and lossless zoom

  • Built-in cybersecurity with Axis Edge Vault


This multisensor camera offers 26 MP at 30 fps to deliver images with high pixel density—perfect when you want to see all the details. Plus, a deep learning processing unit enables the use of advanced analytics.


Ultra clear overviews in great detail

With up to 10K horizontal resolution at 30 fps, this multisensor camera offers seamless stitching of all four images to deliver smooth and cohesive 180° panoramic overviews for complete situational awareness. It offers 180° horizontal coverage, and 45° vertical coverage for great details with high pixel density. With Axis Forensic WDR, it captures high-quality images even when there’s both dark and light areas in the scene. Thanks to lossless zoom, it’s possible to zoom in without degrading image sharpness—ideal when tracking objects across great distances. In addition, edge-to-edge technology lets you easily add whatever connectivity devices you need. Furthermore, horizon straightening ensures visually balanced images. Plus, the operator’s viewing experience will be more natural due to the straightened horizon in the image.


Cost-effective and flexible

AXIS Q4809-PVE offers you the benefits of four cameras while paying for just one. That means there’s one camera to install, one cable to draw, one IP address, one video management software (VMS) license, and just one license for any analytics you choose to install. It features built-in motors for remote pan/tilt/roll functionality and fast, cost-efficient installation. Additionally, it offers a variety of mounting options – on walls, ceilings, or in corridors as flush or pendant. Furthermore, when paired with an Axis radar device, you can take advantage of AXIS Radar Data Visualizer, a powerful application that adds value to and increases the functionality of Axis multisensor cameras. Using radar data, this application collects and processes radar data and presents it as visual, customizable overlays in the camera feed.


Powerful and secure AI-based camera

Built on a dual Axis system-on-chip, this AI-powered camera includes a deep learning processing unit (DLPU) so you can run powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and types of vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified, secure cryptographic key storage and operations.


Part number for ordering

NameAxis regionPart number
AXIS Q4809-PVE AR, AU, BR, CN, EU, JP, KR, UK, US 02658-001

Technical Specifications

Property DescriptionProperty Value
Image sensorCMOS
Image sensor size1/2.3"
LightfinderLightfinder
Wide dynamic rangeForensic WDR
Min illumination/ light sensitivity (Color)-
Min illumination/ light sensitivity (B/W)-
Max video resolution10240x2560
Max frames per second30
Day and Night functionalityYes
Electronic image stabilization
Focal length5.05 mm
Horizontal field of view180 °
Vertical field of view45 °
ZipstreamYes
H.264Baseline, High, Main
H.265Yes
Audio SupportYes
Signed OSYes
Secure bootYes
Remote focus
Remote zoom
Built-in IR
OptimizedIR
Local storage (memory card slot)Yes
Operating temperature-40 to 50 °C
Outdoor ReadyYes
Vandal ratingIK10
IP ratingIP66, IP67
SustainabilityBFR/CFR free, PVC free
