AXIS SKD02-T Non-armored Cable Kit 03306-001 03307-001 03308-001
cable kit includes: 1x Ex d M25x1.5 cable gland 2x Cat 6A RJ45 connector SKD02-T is available in different lengths: 10 m (33 ft) 25 m (82 ft) 95 m (312 ft) Specifications Outer diameter: ø 8.9 +/- 0,3 mm (ø 0.35 ± 0.01 in) Maximum bending radius: 8 x diameter during installation, 4 x diameter after installation Material outer jacket: PUR FHF – flame retardant according to IEC 60332-1-2 Construction: CAT 6A, 4 x 2 x AWG 23/1 Image 1. Jacket 2. Isolation foil 3. Copper wire shielding 4. Shielding foil 5. Data elements Part number for ordering Name Axis region Part number SKD02-T Non-Armored Cable Kit 95 m AR, AU, BR, EU, IN, KR, UK 03308-001 SKD02-T Non-Armored Cable Kit 25 m AR, AU, BR, EU, IN, KR, UK 03307-001 SKD02-T Non-Armored Cable Kit 10 m AR, AU, BR, EU, IN, KR, UK 03306-001
Product Features
Non-armored data cable
Network cable
Ex-certified cable gland included
For hazardous areas
For hazardous areas
This non-armored data cable is specially designed for hazardous areas in accordance with IEC/EN 60079-14 for use in arctic and tropical temperatures, -60 °C to 80 °C (-76 °F to 176 °F). The cable meets the transmission characteristics for Cat 6A of IEC 61156-5 Edition 2. It is halogen-free and resistant to mechanical stress, oils, and greases.
SKD02-T is a high-speed Industrial Ethernet cable for fixed installations in dry, wet, or damp rooms.

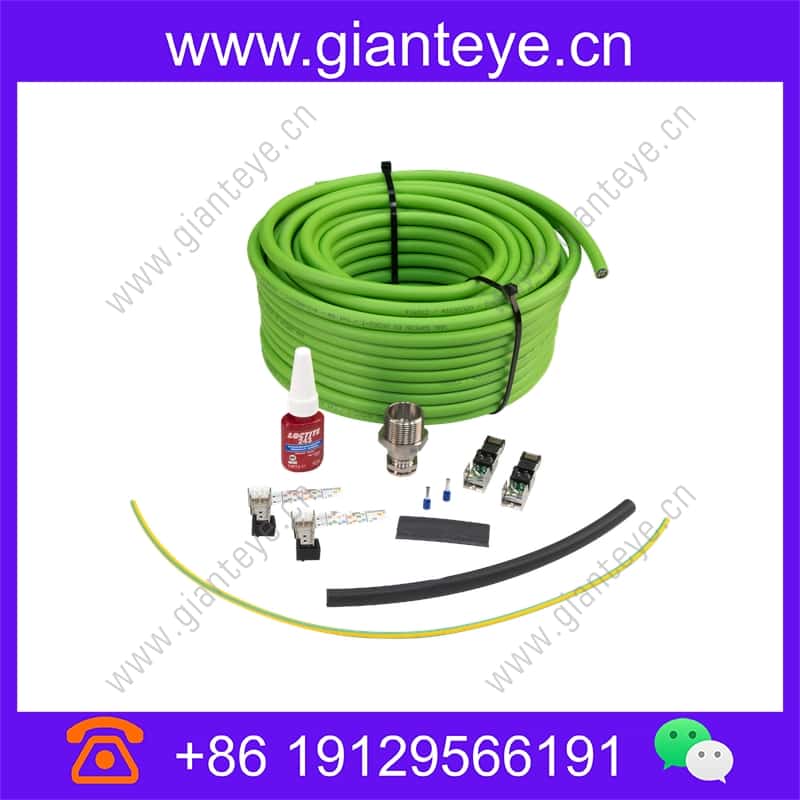

The non-armored cable kit includes:
- 1x Ex d M25x1.5 cable gland
- 2x Cat 6A RJ45 connector
SKD02-T is available in different lengths:
- 10 m (33 ft)
- 25 m (82 ft)
- 95 m (312 ft)
Specifications
Outer diameter: ø 8.9 +/- 0,3 mm (ø 0.35 ± 0.01 in)
Maximum bending radius: 8 x diameter during installation, 4 x diameter after installation
Material outer jacket: PUR FHF – flame retardant according to IEC 60332-1-2
Construction: CAT 6A, 4 x 2 x AWG 23/1

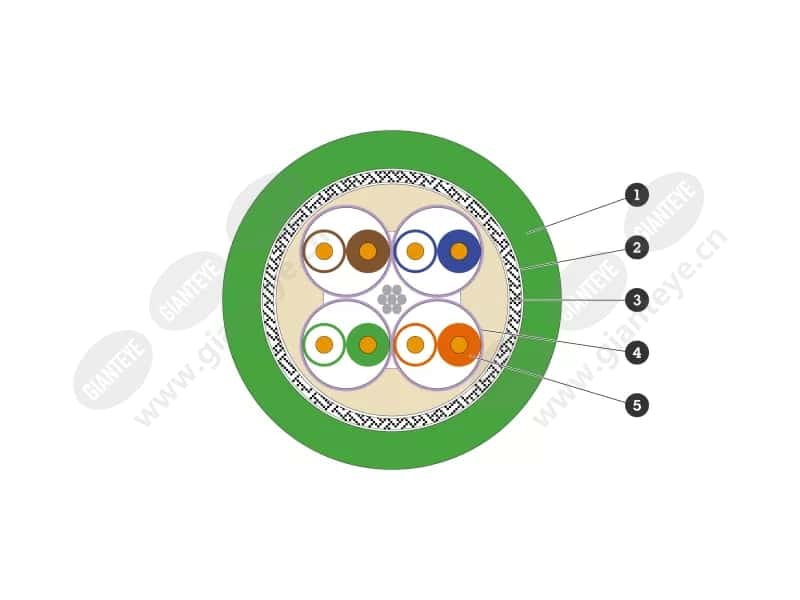

1. Jacket
2. Isolation foil
3. Copper wire shielding
4. Shielding foil
5. Data elements
Part number for ordering
| Name | Axis region | Part number |
|---|---|---|
| SKD02-T Non-Armored Cable Kit 95 m | AR, AU, BR, EU, IN, KR, UK | 03308-001 |
| SKD02-T Non-Armored Cable Kit 25 m | AR, AU, BR, EU, IN, KR, UK | 03307-001 |
| SKD02-T Non-Armored Cable Kit 10 m | AR, AU, BR, EU, IN, KR, UK | 03306-001 |
