AXIS T91B67 Pole Mount 01473-001

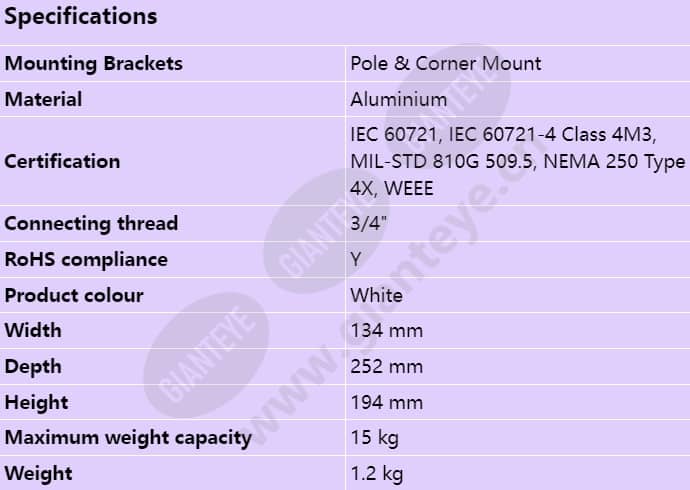

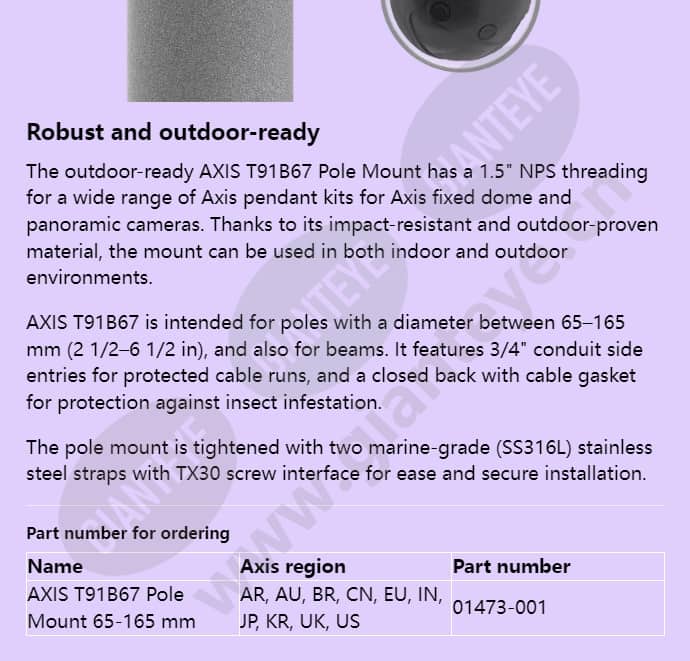

for poles with a diameter between 65–165 mm (2 1/2–6 1/2 in), and also for beams. It features 3/4" conduit side entries for protected cable runs, and a closed back with cable gasket for protection against insect infestation. The pole mount is tightened with two marine-grade (SS316L) stainless steel straps with TX30 screw interface for ease and secure installation. Part number for ordering Name Axis region Part number AXIS T91B67 Pole Mount 65-165 mm AR, AU, BR, CN, EU, IN, JP, KR, UK, US 01473-001 Mounting Brackets Pole & Corner Mount Product colour White Material Aluminium Maximum weight capacity 15 kg Connecting thread 3/4" RoHS compliance Y Certification IEC 60721, IEC 60721-4 Class 4M3, MIL-STD 810G 509.5, NEMA 250 Type 4X, WEEE Width 134 mm Depth 252 mm Height 194 mm Weight 1.2 kg
