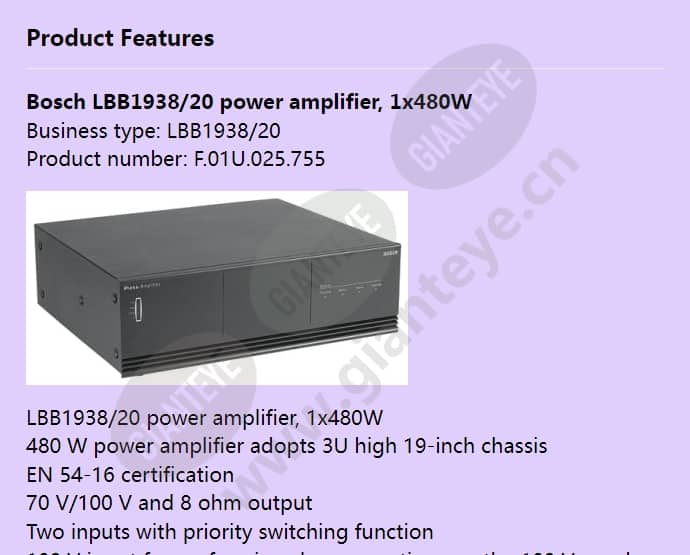

Bosch LBB1938/20 Power Amplifier 1x480W F.01U.025.755

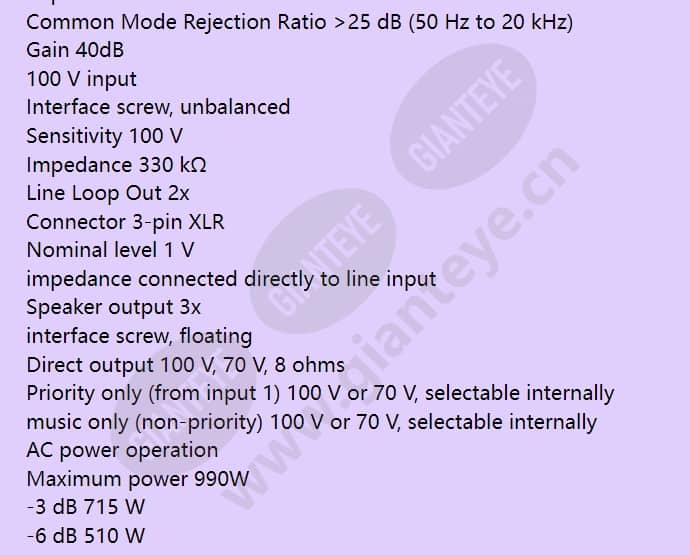

to line input Speaker output 3x interface screw, floating Direct output 100 V, 70 V, 8 ohms Priority only (from input 1) 100 V or 70 V, selectable internally music only (non-priority) 100 V or 70 V, selectable internally AC power operation Maximum power 990W -3 dB 715 W -6 dB 510 W Pilot Tone* 110 W Idle 25W 24 VDC operation Maximum power 32 A (770 W) -3 dB 26 A (625 W) -6 dB 18 A (430 W) Pilot Tone* 3.8 A (91 W) Idle 0.7 A (17 W) Dimensions (H x W x D) 145 x 430 x 370 mm (19 inches wide, 3U high including feet) Weight about 25 kg Install independent, 19-inch rack color charcoal black Operating temperature -10 ºC to +55 ºC (+14 ºF to +131 ºF) Storage and Shipping Temperature -40 ºC to +70 ºC (-40 ºF to +158 ºF) relative humidity <95% Fan noise level <48 dB SPL, 1 meter (maximum output)
