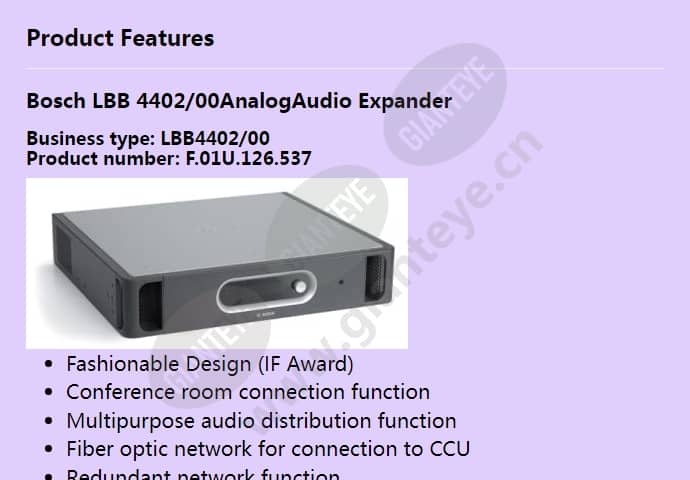

Bosch LBB4402/00 Analog audio expander F.01U.126.537

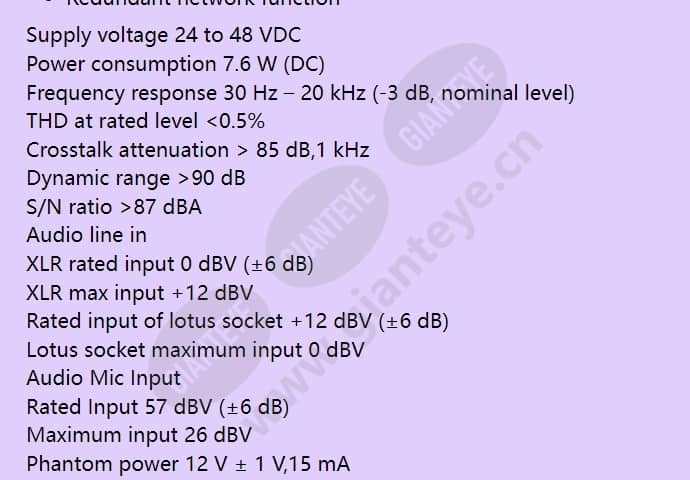

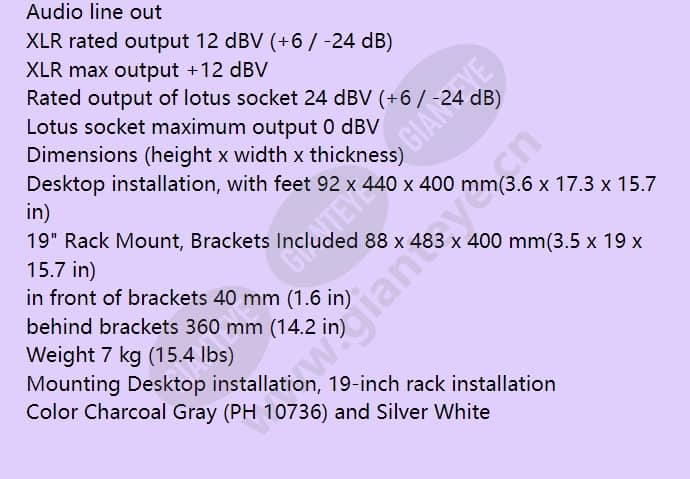

dB S/N ratio >87 dBA Audio line in XLR rated input 0 dBV (±6 dB) XLR max input +12 dBV Rated input of lotus socket +12 dBV (±6 dB) Lotus socket maximum input 0 dBV Audio Mic Input Rated Input 57 dBV (±6 dB) Maximum input 26 dBV Phantom power 12 V ± 1 V,15 mA Audio line out XLR rated output 12 dBV (+6 / -24 dB) XLR max output +12 dBV Rated output of lotus socket 24 dBV (+6 / -24 dB) Lotus socket maximum output 0 dBV Dimensions (height x width x thickness) Desktop installation, with feet 92 x 440 x 400 mm(3.6 x 17.3 x 15.7 in) 19" Rack Mount, Brackets Included 88 x 483 x 400 mm(3.5 x 19 x 15.7 in) in front of brackets 40 mm (1.6 in) behind brackets 360 mm (14.2 in) Weight 7 kg (15.4 lbs) Mounting Desktop installation, 19-inch rack installation Color Charcoal Gray (PH 10736) and Silver White
