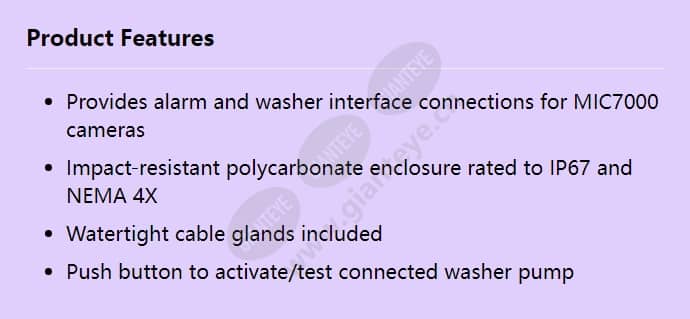

Bosch MIC-ALM-WAS-24 MIC Alarm/Washer Interface Unit Interface box alarm washer pump 24VAC F.01U.286.248

MIC-ALM-WAS-24 and the MIC7000 camera) Communications Protocol Proprietary half-duplex RS-485, 57600 baud Power 24 VAC Alarm Input 4 normal dry contacts (selectable N.O./N.C.)2 monitored tamper alarm inputs, 2.2K ohm end-of-line termination Alarm Output 3 open collector outputs, 32 VDC, 150 mA Relay Output 1 dry contact relay, 24VAC/VDC, 5 A (for washer pump) Alarm/Data 3-wire RS-485 (to external alarm/washer accessory unit) up to 100 m Ingress Protection Rating/ Standard IP67NEMA 4, 4X, 6, 12, 13 Operating Temperature -40 °C to +60 °C (-40 °F to +140 °F) Cold Start-up Temperature -40 °C (-40 °F) (Requires 60 minute warm-up prior to operation) Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F) Humidity 0-100% Dimensions(L x W x H) 200 mm x 120 mm x 79 mm(7.9 in. x 4.7 in. x 3.1 in.)
