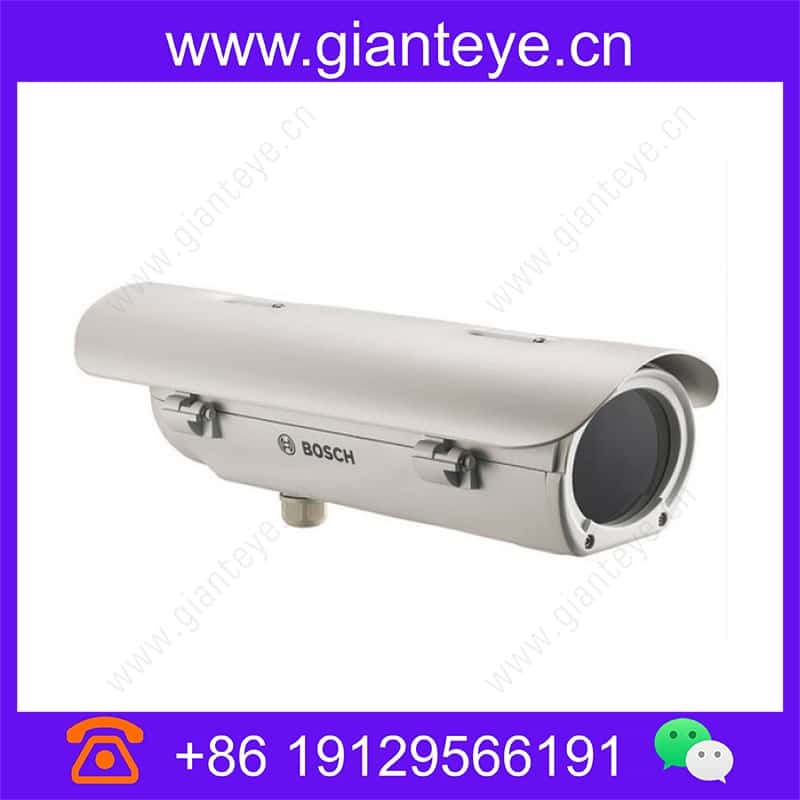

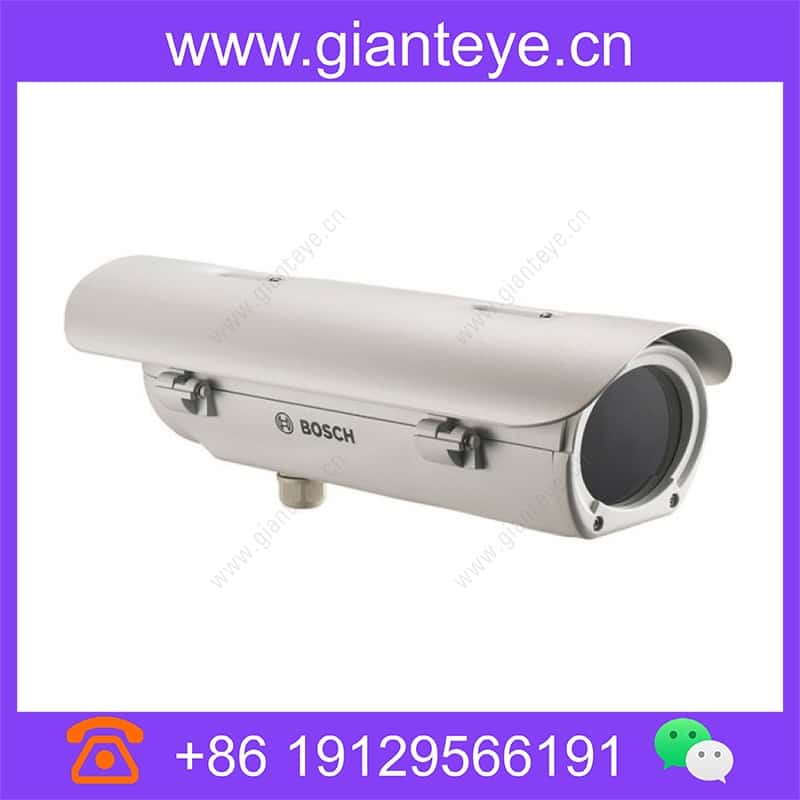

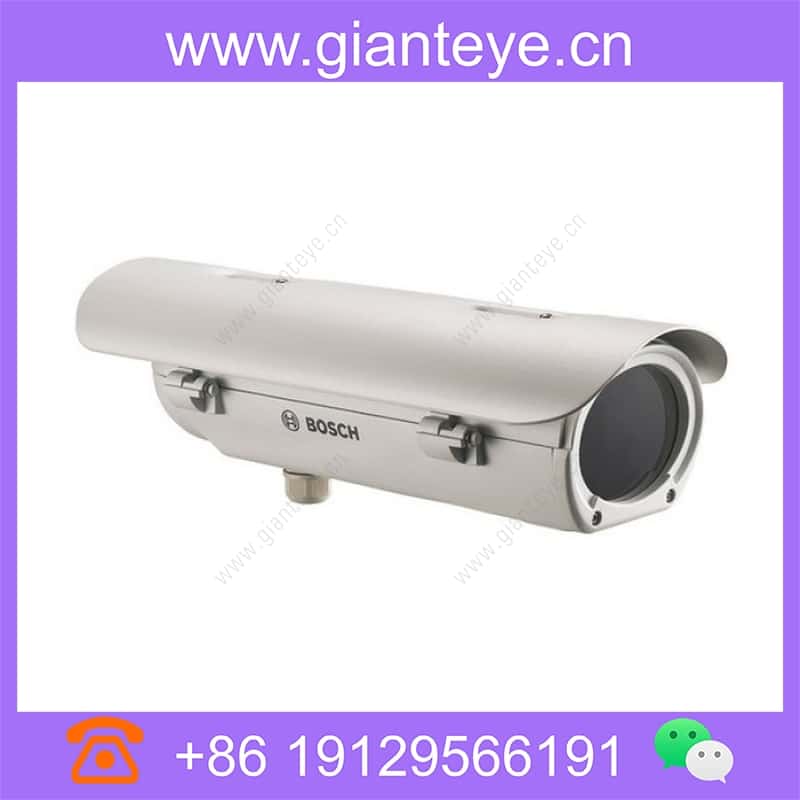

Bosch NHT-8000-F19QF DINION THERMAL Thermal Imaging Camera 60Hz QVGA 19mm F.01U.321.186

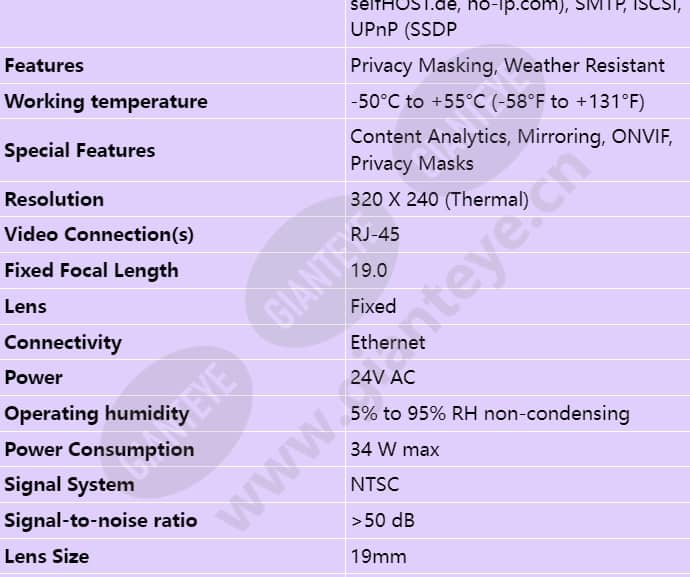

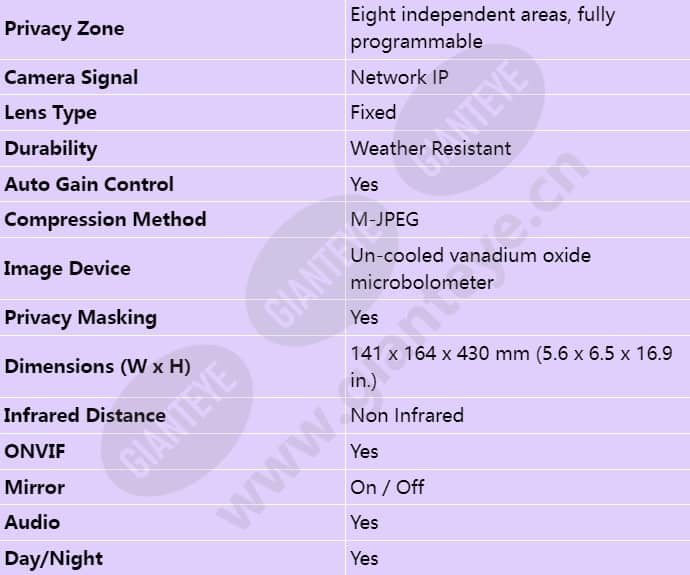

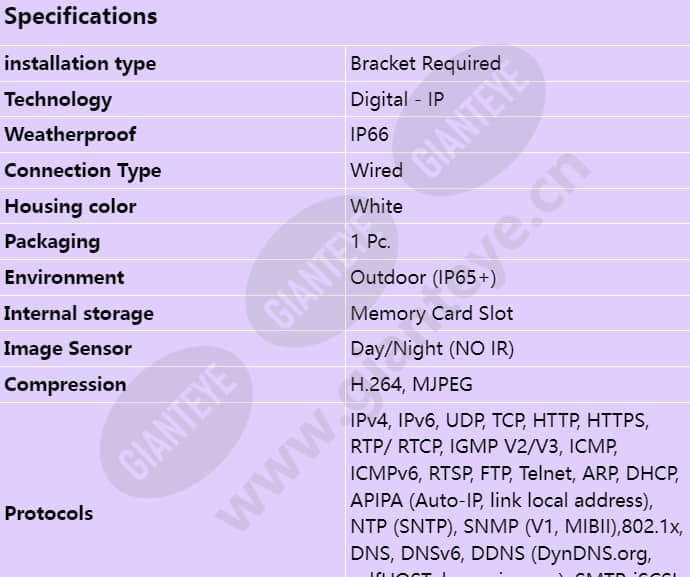

(Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII),802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP Privacy Zone Eight independent areas, fully programmable Power Consumption 34 W max Operating Temperature -50°C to +55°C (-58°F to +131°F) Operating Humidity 5% to 95% RH non-condensing Signal System NTSC Lens Size 19mm Camera Signal Network IP Lens Type Fixed Weatherproof IP66 Mirror On / Off Infrared Distance Non Infrared Resolution 320 X 240 (Thermal) Compression Method M-JPEG Connection Type Wired Image Device Un-cooled vanadium oxide microbolometer Dimensions (W x H) 141 x 164 x 430 mm (5.6 x 6.5 x 16.9 in.) Durability Weather Resistant Mount Type Bracket Required Audio Yes Privacy Masking Yes ONVIF Yes Auto Gain Control Yes Day/Night Yes
