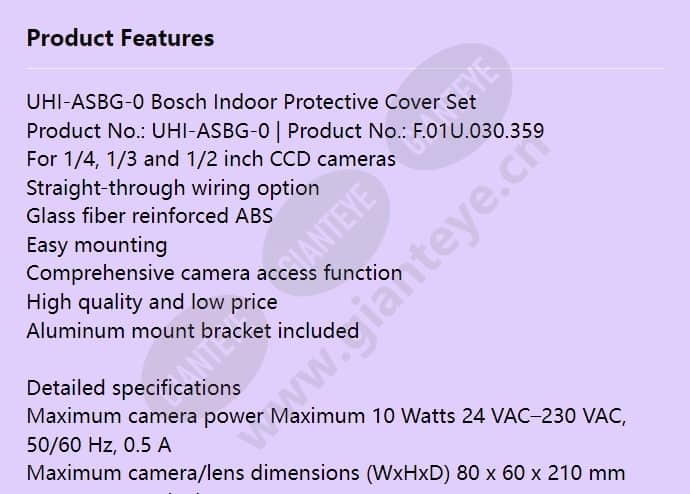

Bosch UHI-SBG-0 Indoor Camera Housing F.01U.030.359

Brand: Bosch
Model: UHI-ASBG-0

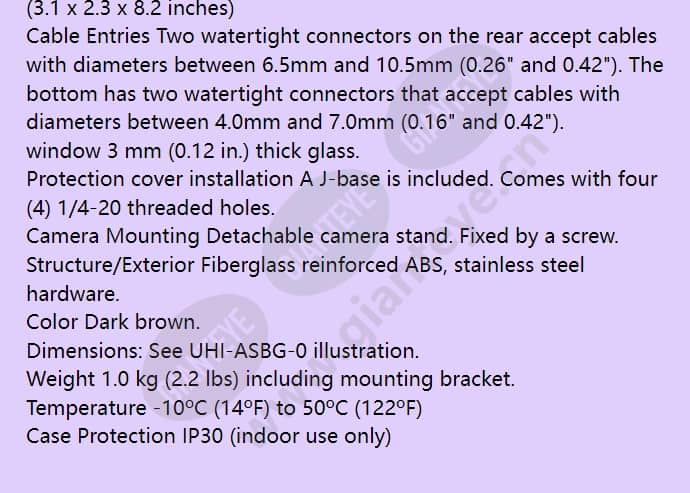

VAC, 50/60 Hz, 0.5 A Maximum camera/lens dimensions (WxHxD) 80 x 60 x 210 mm (3.1 x 2.3 x 8.2 inches) Cable Entries Two watertight connectors on the rear accept cables with diameters between 6.5mm and 10.5mm (0.26" and 0.42"). The bottom has two watertight connectors that accept cables with diameters between 4.0mm and 7.0mm (0.16" and 0.42"). window 3 mm (0.12 in.) thick glass. Protection cover installation A J-base is included. Comes with four (4) 1/4-20 threaded holes. Camera Mounting Detachable camera stand. Fixed by a screw. Structure/Exterior Fiberglass reinforced ABS, stainless steel hardware. Color Dark brown. Dimensions: See UHI-ASBG-0 illustration. Weight 1.0 kg (2.2 lbs) including mounting bracket. Temperature -10ºC (14ºF) to 50ºC (122ºF) Case Protection IP30 (indoor use only)
