FUJINON CF12.5HA-1 Machine Vision Lens 12.5mm F1.4-F22 C-mount

Brand: FUJINON
Model: CF12.5HA-1

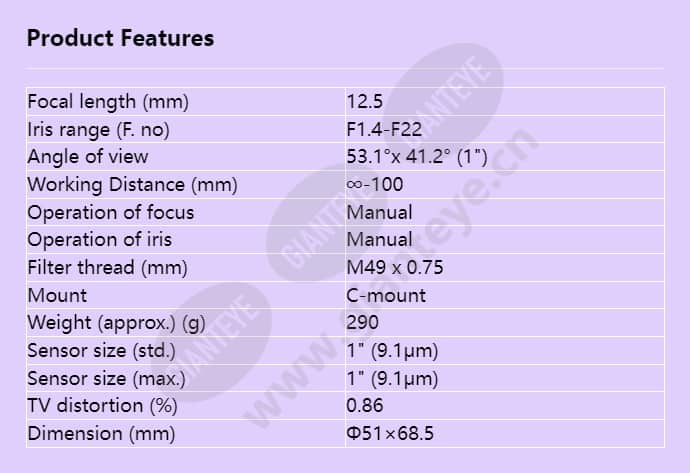

Focal length (mm) 12.5 Iris range (F. no) F1.4-F22 Angle of view 53.1°x 41.2° (1") Working Distance (mm) ∞‐100 Operation of focus Manual Operation of iris Manual Filter thread (mm) M49 x 0.75 Mount C-mount Weight (approx.) (g) 290 Sensor size (std.) 1" (9.1μm) Sensor size (max.) 1" (9.1μm) TV distortion (%) 0.86 Dimension (mm) Φ51×68.5
