FUJINON FD32x12.5SR4A-CV1 Security Camera Lens 32x 12.5-400mm C-mount

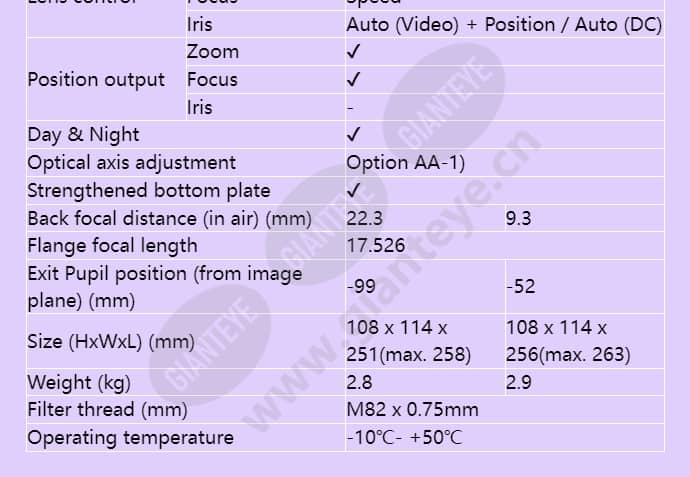

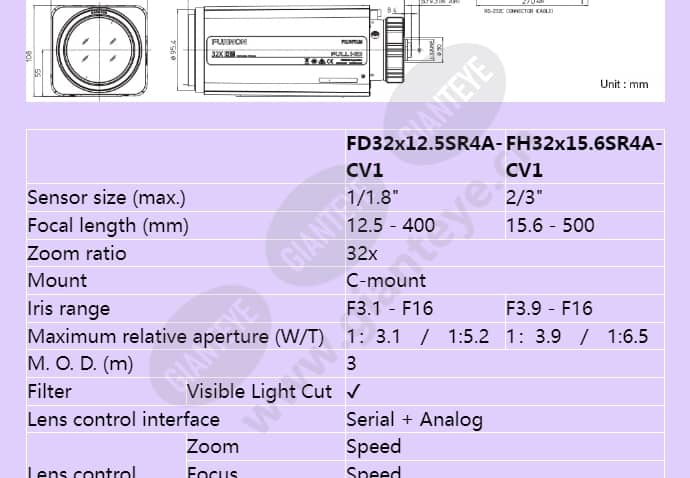

of housing units. FD32x12.5SR4A-CV1 FH32x15.6SR4A-CV1 Sensor size (max.) 1/1.8" 2/3" Focal length (mm) 12.5 - 400 15.6 - 500 Zoom ratio 32x Mount C-mount Iris range F3.1 - F16 F3.9 - F16 Maximum relative aperture (W/T) 1：3.1 / 1:5.2 1：3.9 / 1:6.5 M. O. D. (ｍ) 3 Filter Visible Light Cut ✔ Lens control interface Serial + Analog Lens control Zoom Speed Focus Speed Iris Auto (Video) + Position / Auto (DC) Position output Zoom ✔ Focus ✔ Iris - Day & Night ✔ Optical axis adjustment Option AA-1) Strengthened bottom plate ✔ Back focal distance (in air) (mm) 22.3 9.3 Flange focal length 17.526 Exit Pupil position (from image plane) (mm) -99 -52 Size (HxWxL) (mm) 108 x 114 x 251(max. 258) 108 x 114 x 256(max. 263) Weight (kg) 2.8 2.9 Filter thread (mm) M82 x 0.75mm Operating temperature -10℃- +50℃
