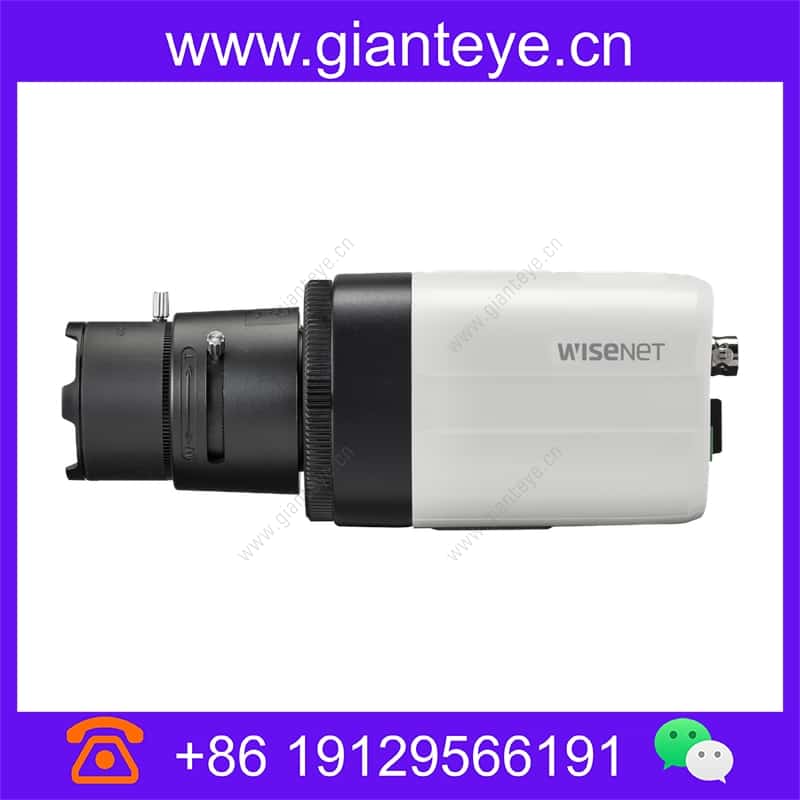

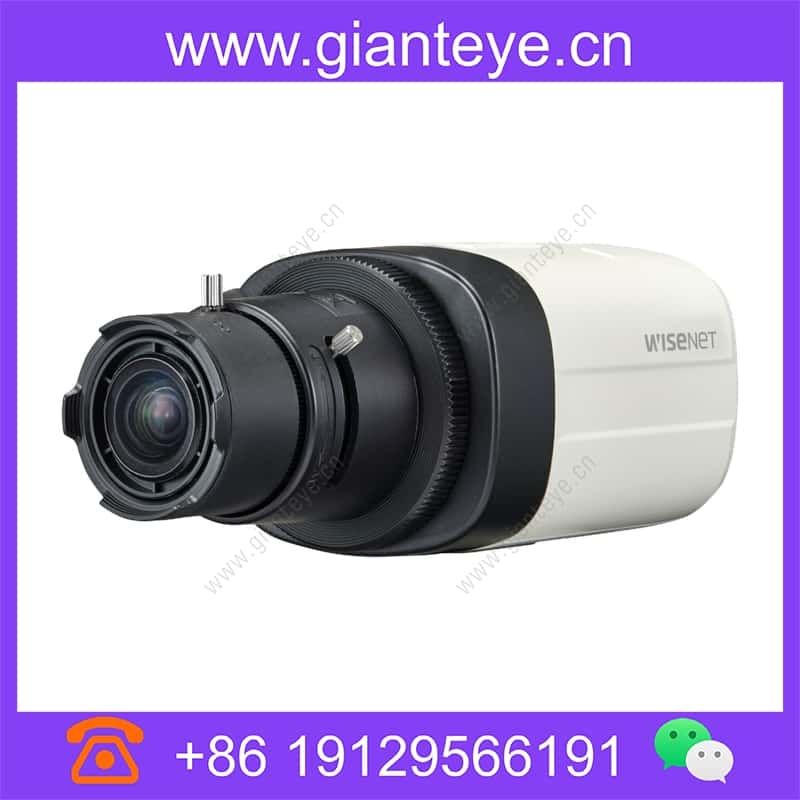

Samsung Hanwha HCB-7000PHA 4MP Analog Box Camera

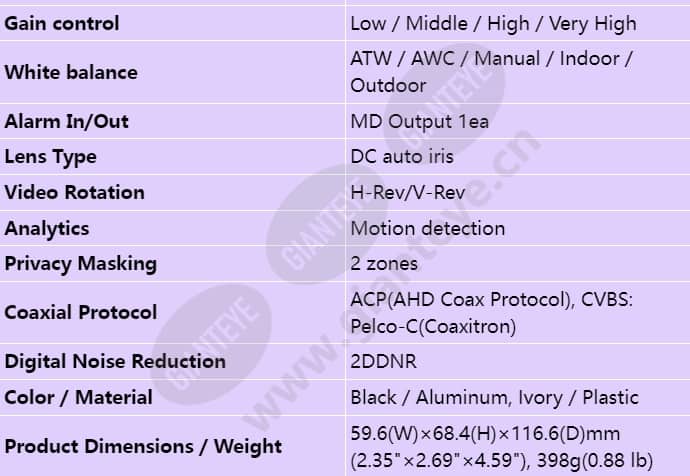

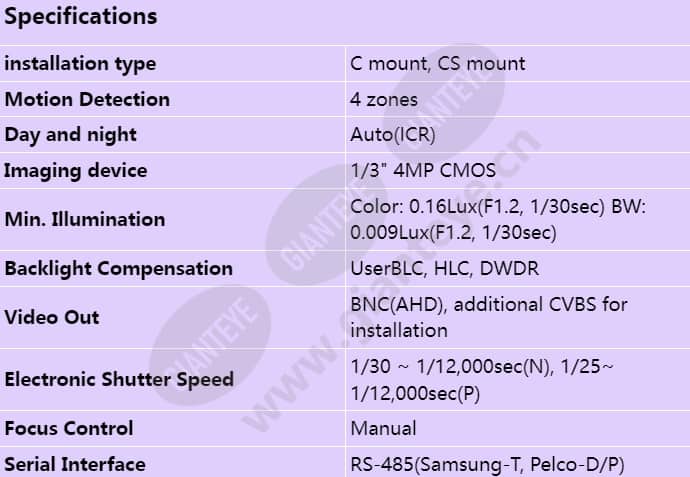

BW: 0.009Lux(F1.2, 1/30sec) Video Out BNC(AHD), additional CVBS for installation Focus Control Manual Lens Type DC auto iris Mount Type C mount, CS mount Day & Night Auto(ICR) Backlight Compensation UserBLC, HLC, DWDR Digital Noise Reduction 2DDNR Motion Detection 4 zones Privacy Masking 2 zones Gain Control Low / Middle / High / Very High White Balance ATW / AWC / Manual / Indoor / Outdoor Electronic Shutter Speed 1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P) Video Rotation H-Rev/V-Rev Analytics Motion detection Serial Interface RS-485(Samsung-T, Pelco-D/P) Alarm I/O MD Output 1ea Coaxial Protocol ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron) Color / Material Black / Aluminum, Ivory / Plastic Product Dimensions / Weight 59.6(W)×68.4(H)×116.6(D)mm (2.35"×2.69"×4.59"), 398g(0.88 lb)
