Samsung Hanwha PNM-C9022RV 8MP IR Panoramic Camera

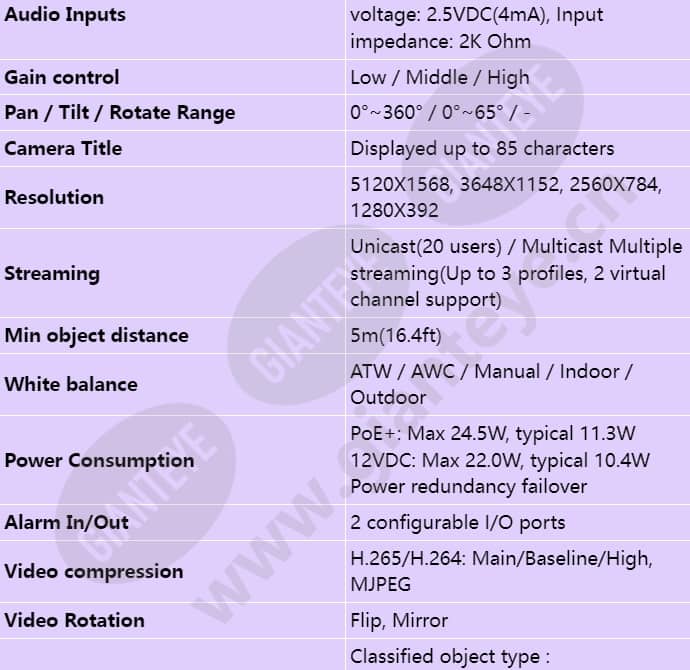

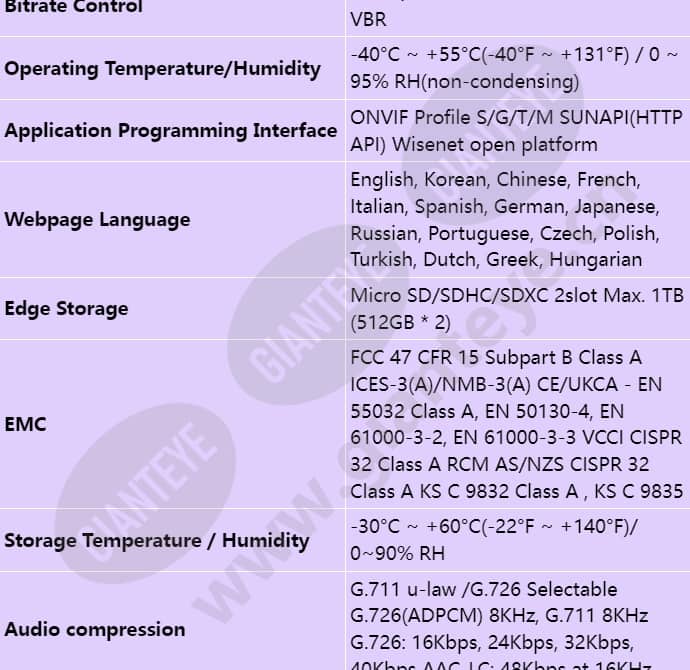

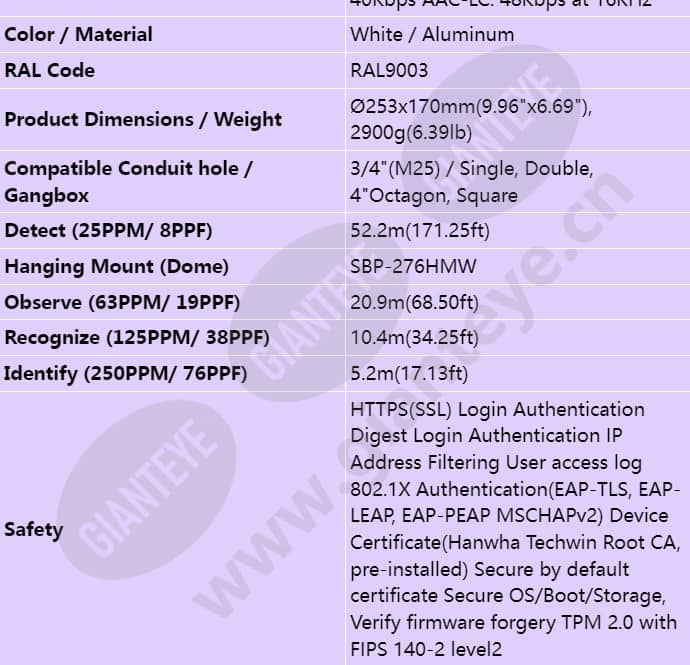

typical 11.3W 12VDC: Max 22.0W, typical 10.4W Power redundancy failover Color / Material White / Aluminum RAL Code RAL9003 Product Dimensions / Weight Ø253x170mm(9.96"x6.69"), 2900g(6.39lb) Compatible Conduit hole / Gangbox 3/4"(M25) / Single, Double, 4"Octagon, Square Hanging Mount (Dome) SBP-276HMW EMC FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835 Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 Environment IEC/EN 63000 IEC/EN 60529 IP66, IEC/EN 62262 IK10 NEMA 250 type 4X Detect (25PPM/ 8PPF) 52.2m(171.25ft) Observe (63PPM/ 19PPF) 20.9m(68.50ft) Recognize (125PPM/ 38PPF) 10.4m(34.25ft) Identify (250PPM/ 76PPF) 5.2m(17.13ft)
