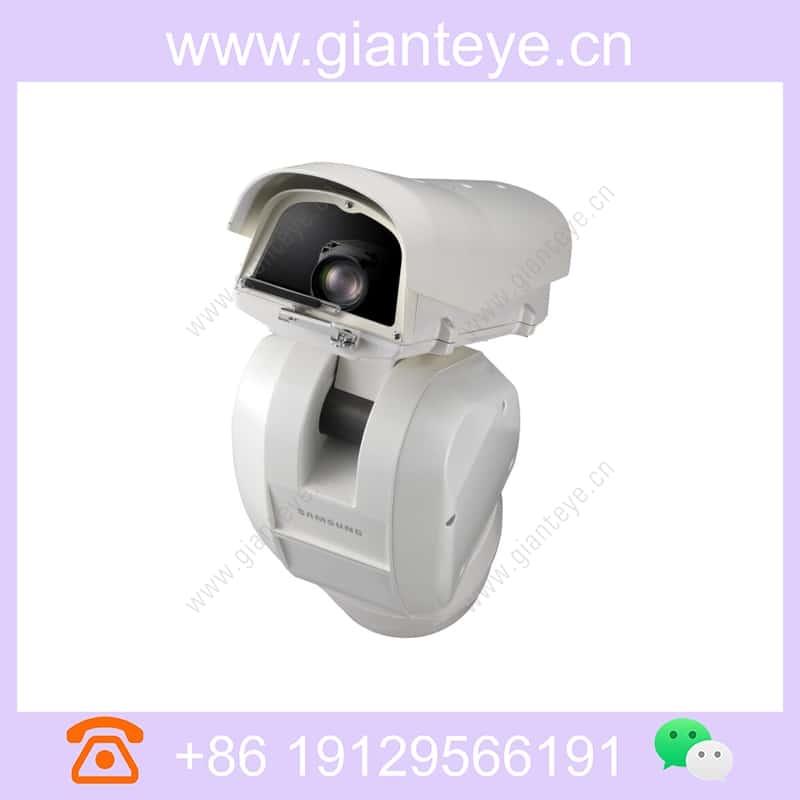

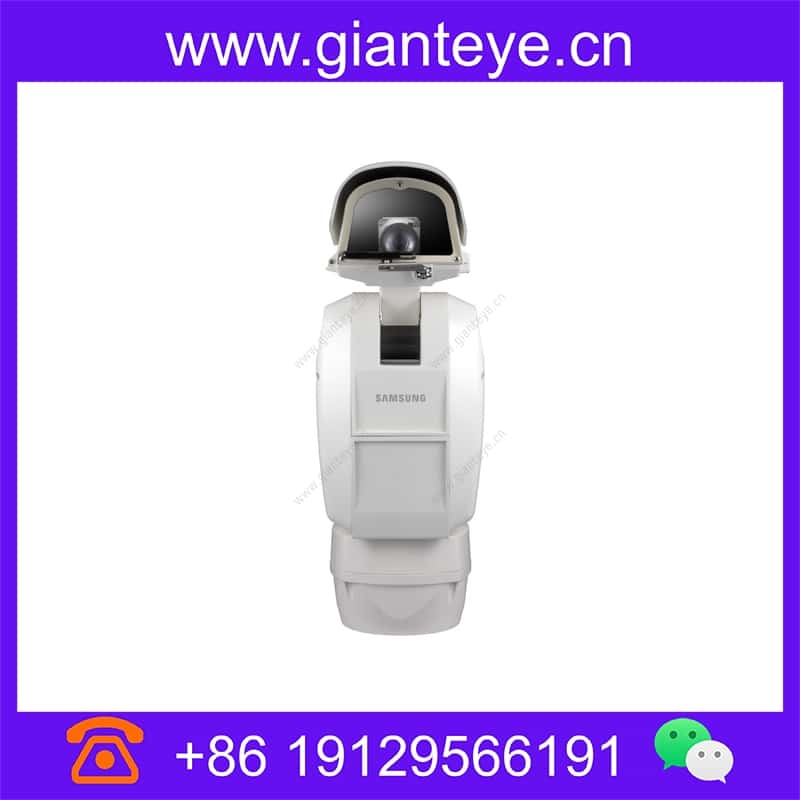

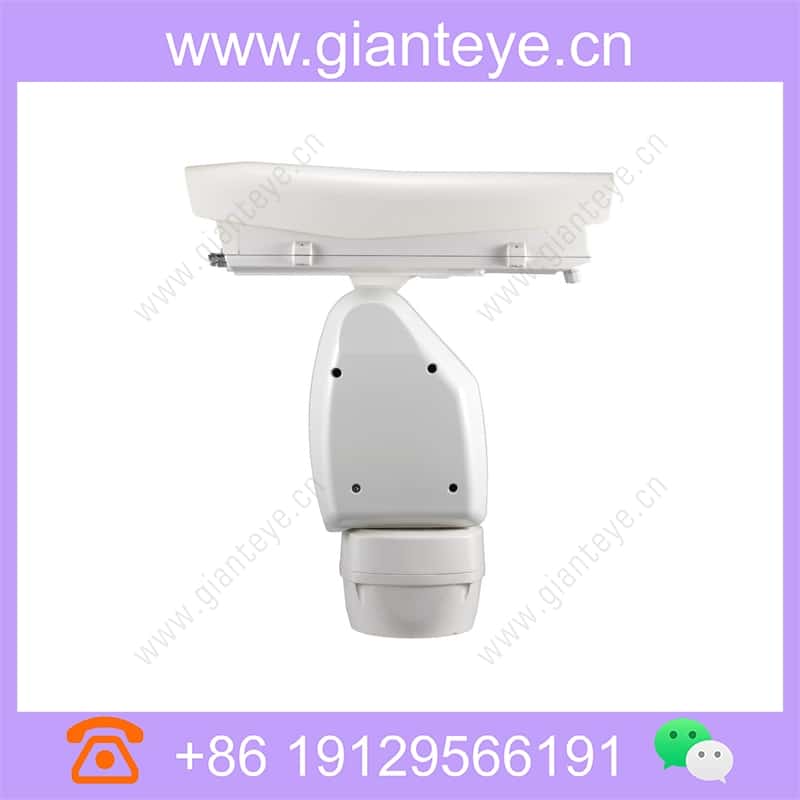

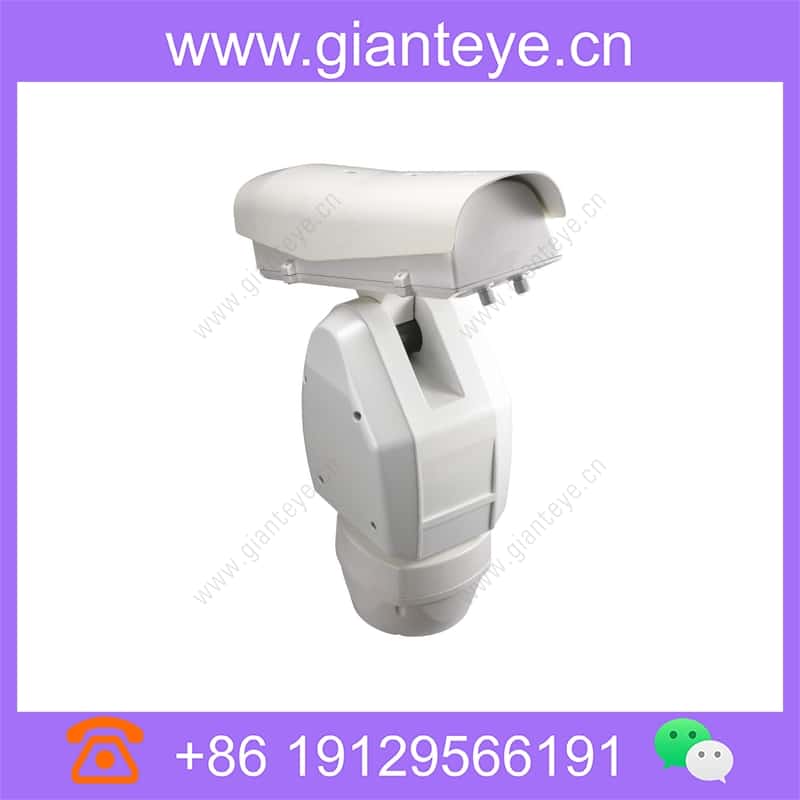

Samsung Hanwha SCU-2370 37x High Resolution Weatherproof Positioning System
0.0004Lux (Sens-up, 512x) Video Out CVBS : 1.0 Vp-p / 75Ω composite Focal Length (Zoom Ratio) 3.5 ~ 129.5mm Max. Aperture Ratio 1 : 1.6(Wide) ~ 3.9(Tele) Angular Field of View H : 55.5°(Wide) ~ 1.59°(Tele) / V : 42.5°(Wide) ~ 1.19°(Tele) Min. Object Distance 1.5m Lens Type DC Auto Iris Pan / Tilt / Rotate Range 360° Endless Pan Range 0.1° ~ 120°/sec Pan Speed 0.1°/sec ~ 36°/sec (Turbo : 120°/sec) Tilt Range -85° ~ 40° Tilt Speed 0.1° ~ 36°/sec Rotate Range 0.1°/sec ~ 36°/sec Sequence 255 Motion Detection Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, GE, AD Privacy Masking Pelco-C (Coaxitron) Operating Temperature / Humidity -50°C ~ +55°C (-58°F ~ +131°F) Storage Temperature / Humidity Less than 90% RH Input Voltage 24V AC ±10% Color / Material Ivory RAL Code Aluminum
