Samsung Hanwha SCV-5083 1280H WDR Dome Camera

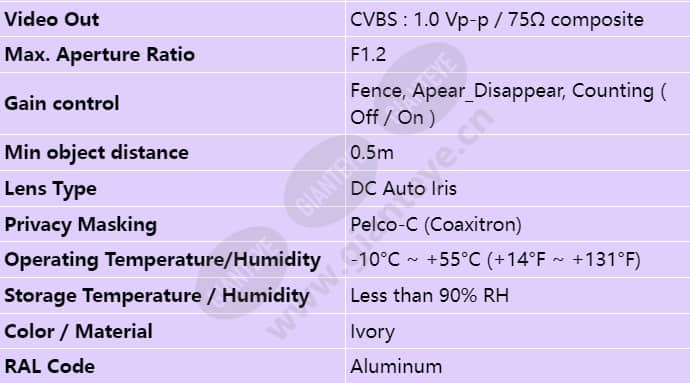

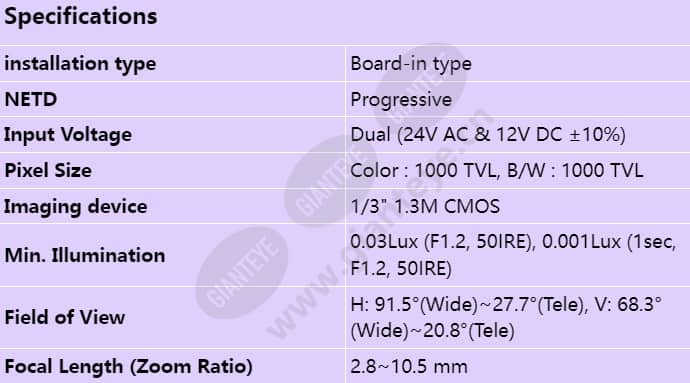

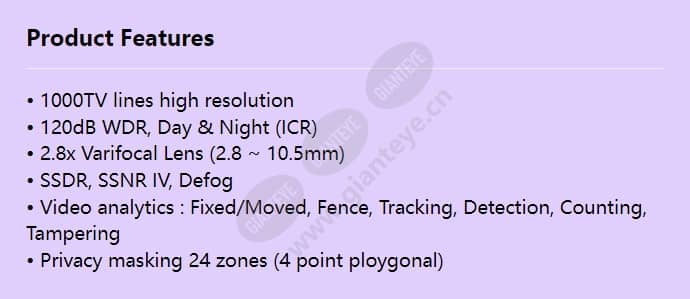

Tracking, Detection, Counting, Tampering • Privacy masking 24 zones (4 point ploygonal) Imaging Device 1/3" 1.3M CMOS NETD Progressive Pixel Size Color : 1000 TVL, B/W : 1000 TVL Min. Illumination 0.03Lux (F1.2, 50IRE), 0.001Lux (1sec, F1.2, 50IRE) Video Out CVBS : 1.0 Vp-p / 75Ω composite Focal Length (Zoom Ratio) 2.8~10.5 mm Max. Aperture Ratio F1.2 Angular Field of View H: 91.5°(Wide)~27.7°(Tele), V: 68.3°(Wide)~20.8°(Tele) Min. Object Distance 0.5m Lens Type DC Auto Iris Mount Type Board-in type Privacy Masking Pelco-C (Coaxitron) Gain Control Fence, Apear_Disappear, Counting ( Off / On ) Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) Storage Temperature / Humidity Less than 90% RH Input Voltage Dual (24V AC & 12V DC ±10%) Color / Material Ivory RAL Code Aluminum
