Huawei C2120-EI-P(3.6mm) 2MP IR Bullet Camera

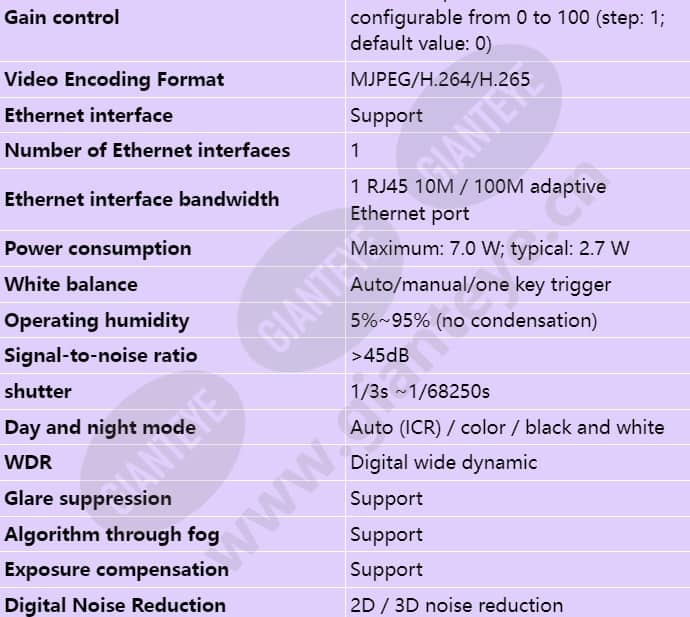

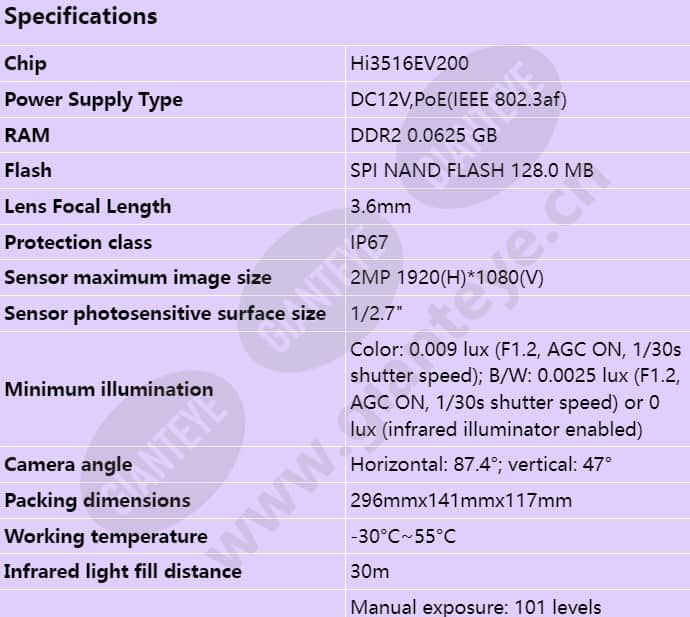

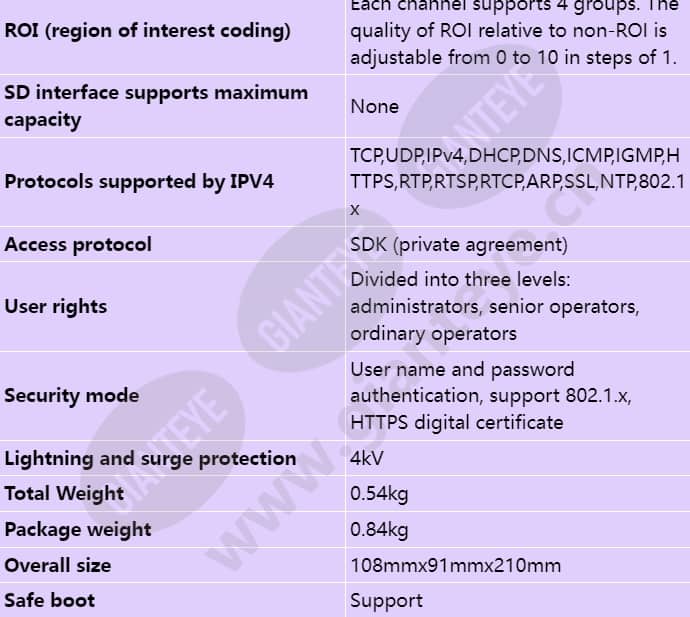

Support Number of Ethernet interfaces 1 Ethernet interface bandwidth 1 RJ45 10M / 100M adaptive Ethernet port Protocols supported by IPV4 TCP,UDP,IPv4,DHCP,DNS,ICMP,IGMP,HTTPS,RTP,RTSP,RTCP,ARP,SSL,NTP,802.1x Access protocol SDK (private agreement) User rights Divided into three levels: administrators, senior operators, ordinary operators Security mode User name and password authentication, support 802.1.x, HTTPS digital certificate Safe boot Support Power type DC12V,PoE(IEEE 802.3af) Power consumption Maximum: 7.0 W; typical: 2.7 W Operating temperature -30°C~55°C Operating humidity 5%~95% (no condensation) Lightning and surge protection 4kV Ingress Protection Rating IP67 Total Weight 0.54kg Package weight 0.84kg Overall size 108mmx91mmx210mm Packing dimensions 296mmx141mmx117mm
_f_en.jpg)
_s_en-0.jpg)
_s_en-1.jpg)
_s_en-2.jpg)
_s_en-3.jpg)
