Huawei D3020-AEI(3.6mm) 2MP Infrared Fixed Dome Camera 02353AXU

Brand: HUAWEI
Model: D3020-AEI(3.6MM)
Weight: 0.80kg
Dimensions: 130mm x 120mm x 120mm

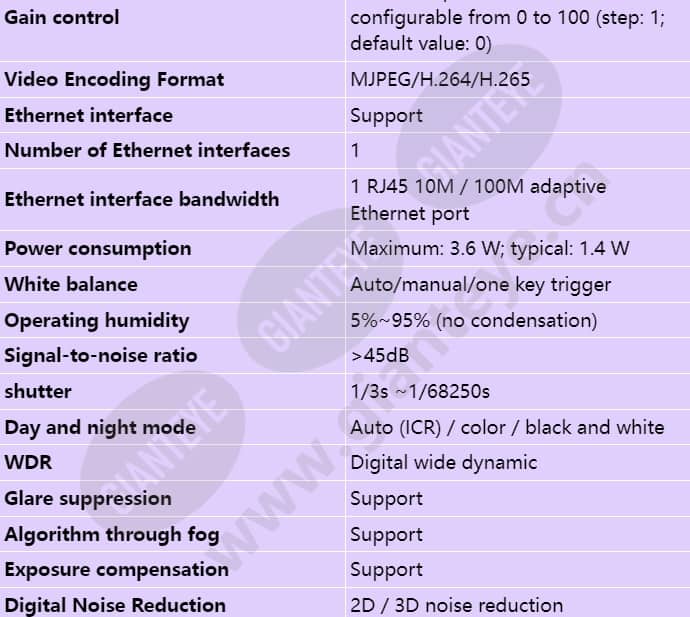

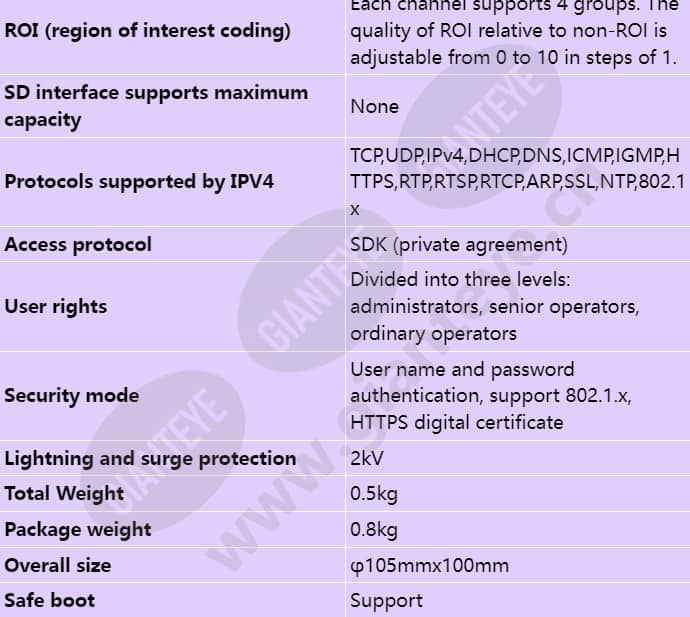

capacity None Ethernet interface Support Number of Ethernet interfaces 1 Ethernet interface bandwidth 1 RJ45 10M / 100M adaptive Ethernet port Protocols supported by IPV4 TCP,UDP,IPv4,DHCP,DNS,ICMP,IGMP,HTTPS,RTP,RTSP,RTCP,ARP,SSL,NTP,802.1x Access protocol SDK (private agreement) User rights Divided into three levels: administrators, senior operators, ordinary operators Security mode User name and password authentication, support 802.1.x, HTTPS digital certificate Safe boot Support Power type DC12V Power consumption Maximum: 3.6 W; typical: 1.4 W Operating temperature -30°C~55°C Operating humidity 5%~95% (no condensation) Lightning and surge protection 2kV Ingress Protection Rating IP66 Total Weight 0.5kg Package weight 0.8kg Overall size φ105mmx100mm Packing dimensions 130mmx120mmx120mm
