Huawei H55PJTF-LBHSS Skyworth 55-inch splicing screen

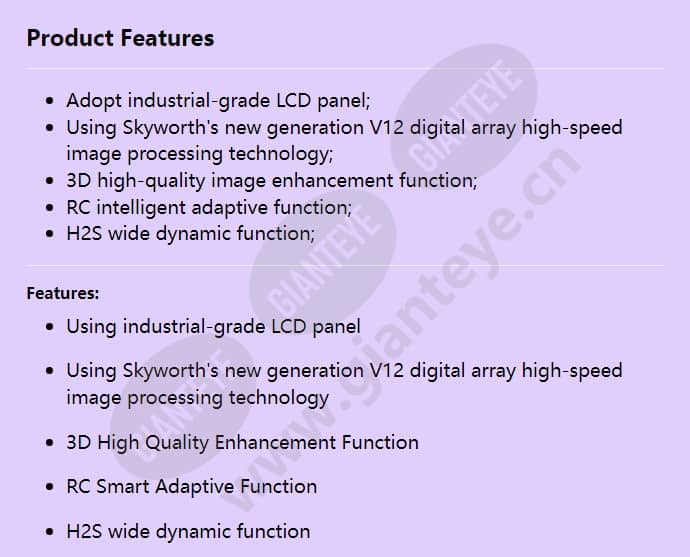

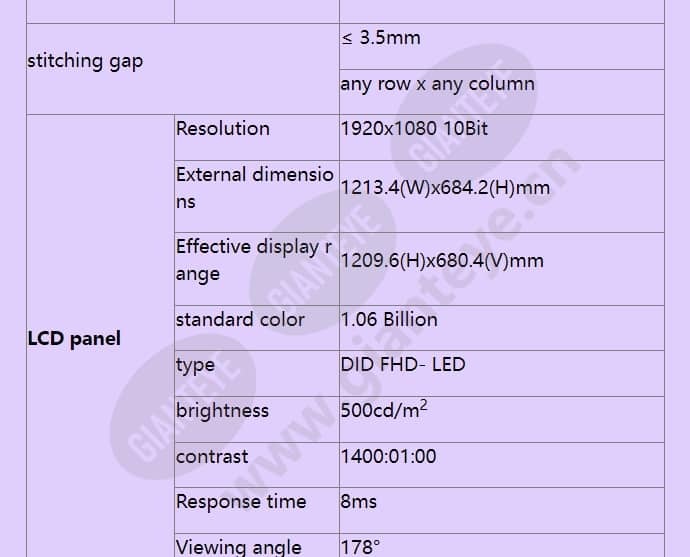

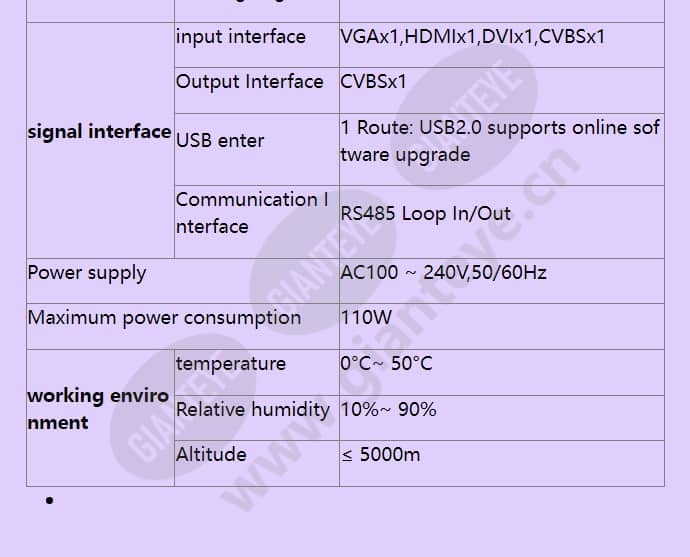

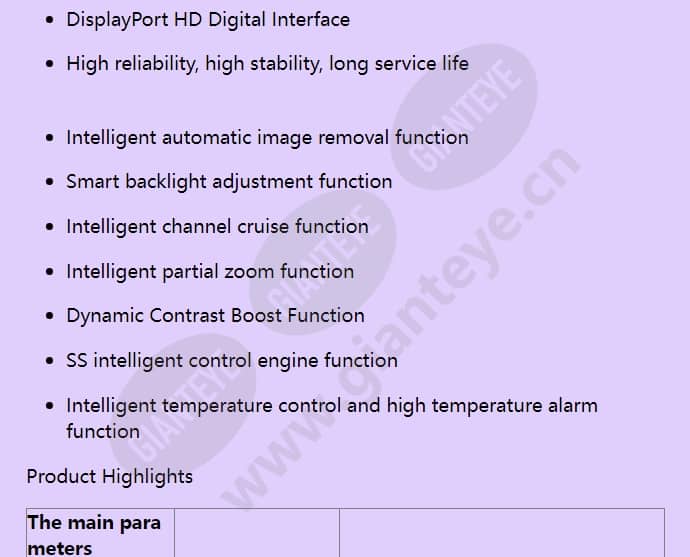

Boost Function SS intelligent control engine function Intelligent temperature control and high temperature alarm function Product Highlights The main parameters stitching gap ≤ 3.5mm any row x any column LCD panel Resolution 1920 x1080 10Bit External dimensions 1213.4(W) x684.2(H)mm Effective display range 1209.6(H) x680.4(V)mm standard color 1.06 Billion type DID FHD- LED brightness 500cd/m 2 contrast 1400:01:00 Response time 8ms Viewing angle 178 ° signal interface input interface VGA x1,HDMIx1,DVIx1,CVBSx1 Output Interface CVBS x1 USB enter 1 Route: USB2.0 supports online software upgrade Communication Interface RS485 Loop In/Out Power supply AC100 ~ 240V,50/60Hz Maximum power consumption 110W working environment temperature 0 °C~ 50°C Relative humidity 10 %~ 90% Altitude ≤ 5000m
