Huawei IVS3800S Video Cloud Single Storage Node 1024 Network Video Storage

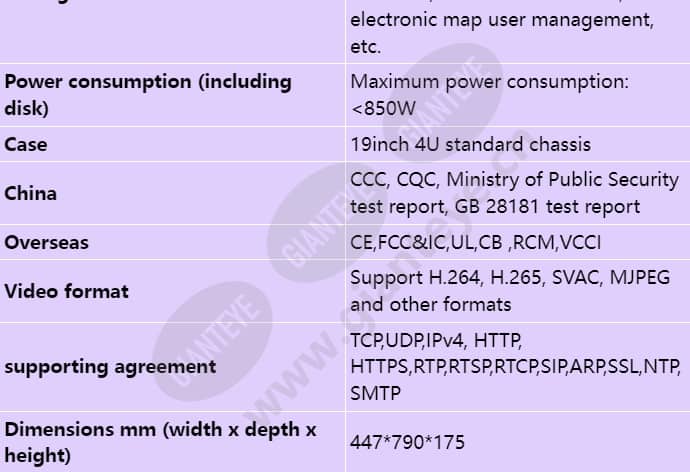

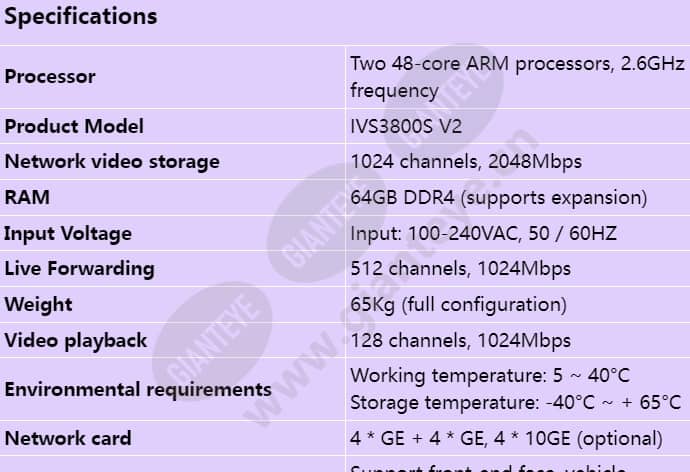

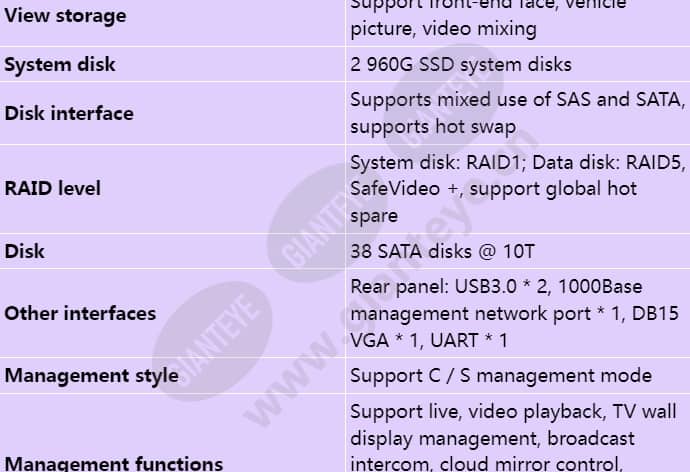

38 SATA disks @ 10T System disk 2 960G SSD system disks Disk interface Supports mixed use of SAS and SATA, supports hot swap RAID level System disk: RAID1; Data disk: RAID5, SafeVideo +, support global hot spare Network card 4 * GE + 4 * GE, 4 * 10GE (optional) Other interfaces Rear panel: USB3.0 * 2, 1000Base management network port * 1, DB15 VGA * 1, UART * 1 Environmental requirements Working temperature: 5 ~ 40°C Storage temperature: -40°C ~ + 65°C Power consumption (including disk) Maximum power consumption: <850W Input voltage Input: 100-240VAC, 50 / 60HZ Dimensions mm (width x depth x height) 447*790*175 Case 19inch 4U standard chassis Weight 65Kg (full configuration) China CCC, CQC, Ministry of Public Security test report, GB 28181 test report Overseas CE,FCC&IC,UL,CB ,RCM,VCCI
