Huawei M2260-I 6MP IR Motorized Zoom Bullet Camera

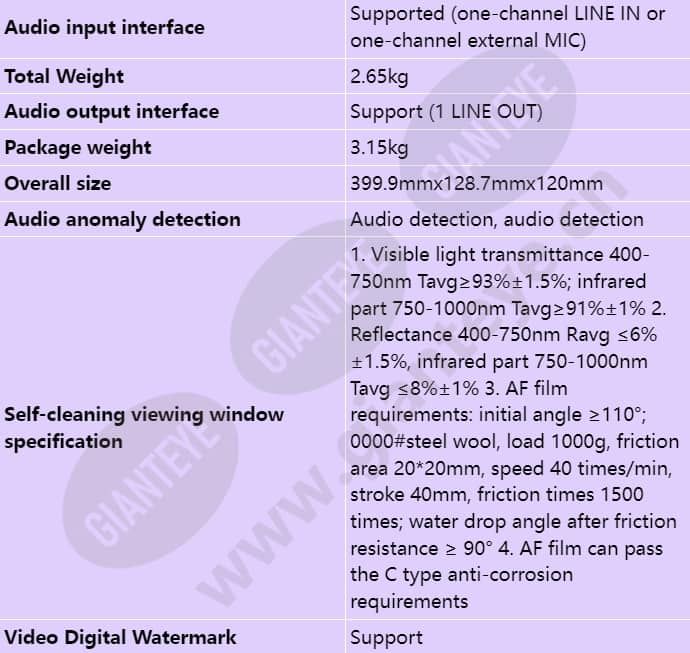

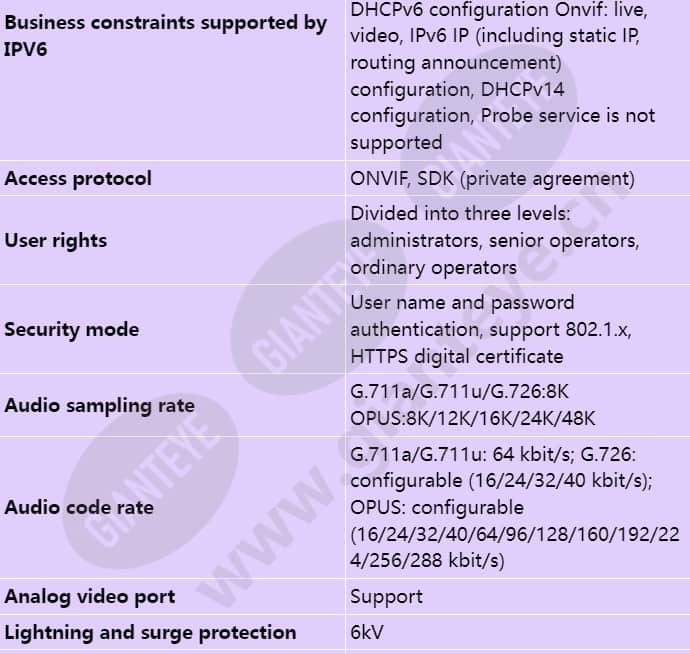

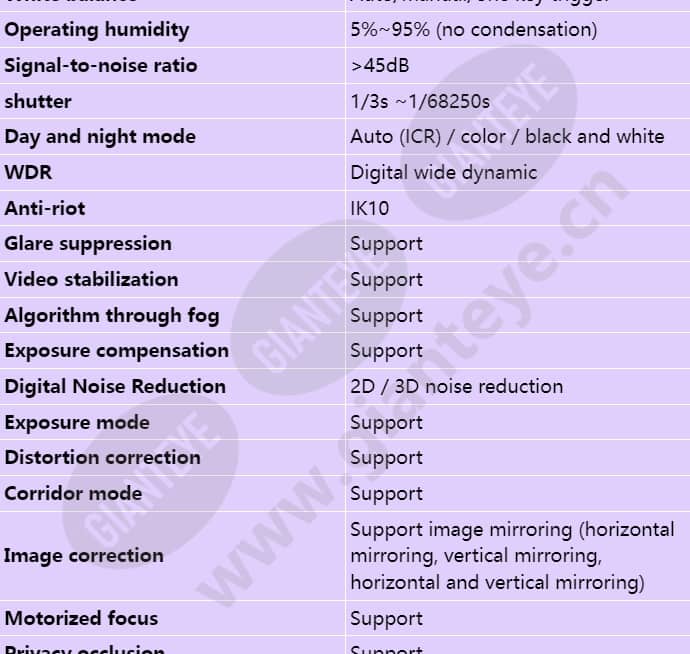

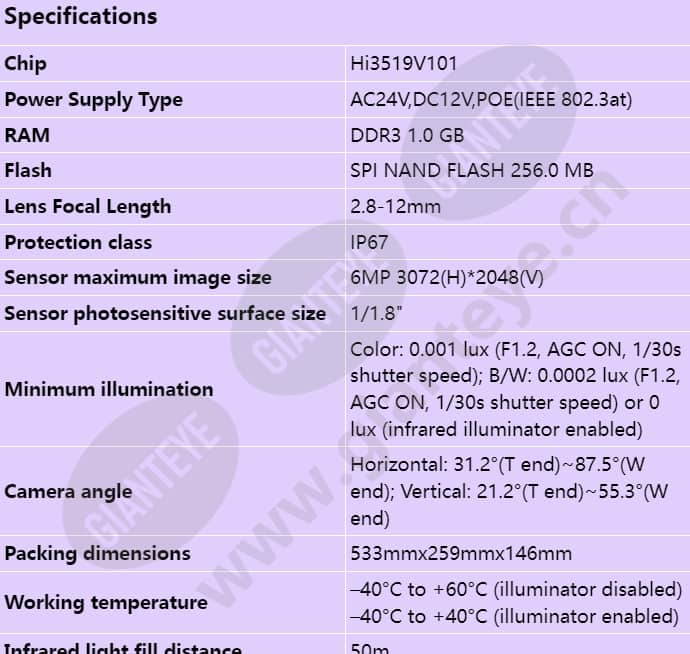

–40°C to +40°C (illuminator enabled) Operating humidity 5%~95% (no condensation) Self-cleaning viewing window Support Self-cleaning viewing window specification 1. Visible light transmittance 400-750nm Tavg≥93%±1.5%; infrared part 750-1000nm Tavg≥91%±1% 2. Reflectance 400-750nm Ravg ≤6%±1.5%, infrared part 750-1000nm Tavg ≤8%±1% 3. AF film requirements: initial angle ≥110°; 0000#steel wool, load 1000g, friction area 20*20mm, speed 40 times/min, stroke 40mm, friction times 1500 times; water drop angle after friction resistance ≥ 90° 4. AF film can pass the C type anti-corrosion requirements Lightning and surge protection 6kV Ingress Protection Rating IP67 Anti-riot IK10 Total Weight 2.65kg Package weight 3.15kg Overall size 399.9mmx128.7mmx120mm Packing dimensions 533mmx259mmx146mm
