Huawei NVR800-A02 16-channel 2-bay Network Video Recorder 98061245

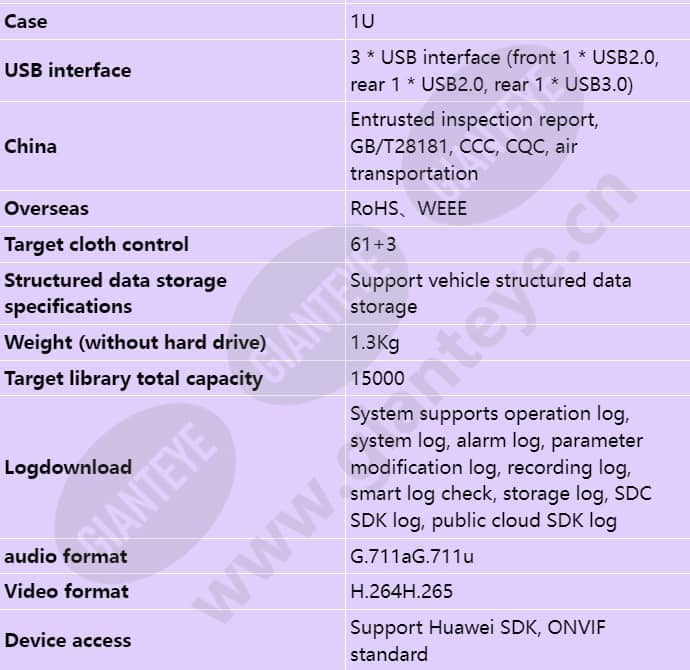

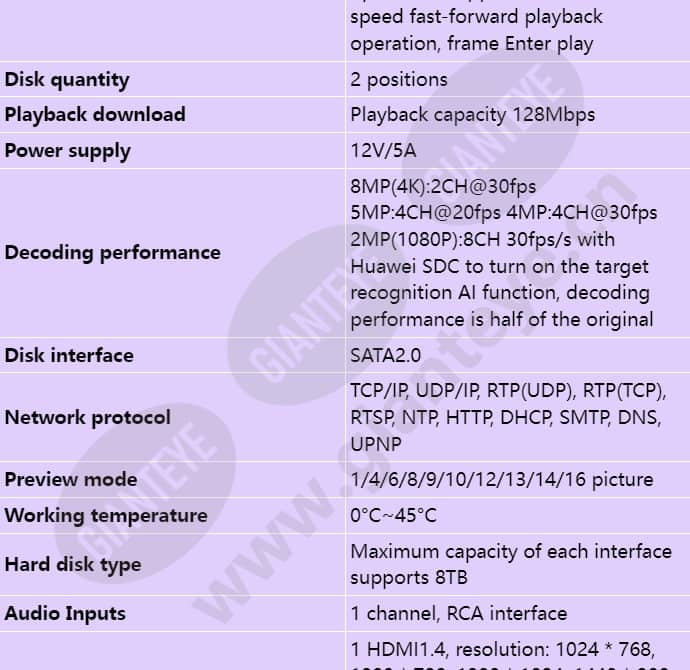

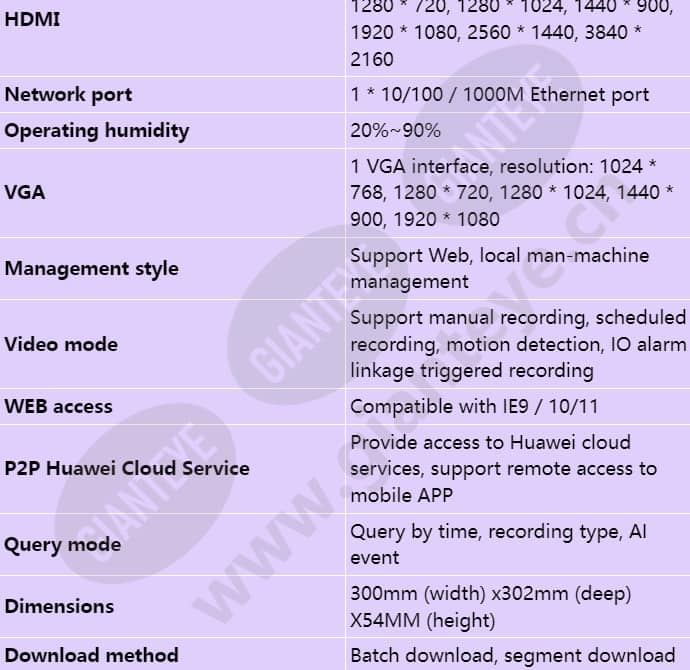

1 * USB2.0, rear 1 * USB3.0) Audio input 1 channel, RCA interface Audio output 1 channel, RCA interface China Entrusted inspection report, GB/T28181, CCC, CQC, air transportation Overseas RoHS、WEEE HDMI 1 HDMI1.4, resolution: 1024 * 768, 1280 * 720, 1280 * 1024, 1440 * 900, 1920 * 1080, 2560 * 1440, 3840 * 2160 VGA 1 VGA interface, resolution: 1024 * 768, 1280 * 720, 1280 * 1024, 1440 * 900, 1920 * 1080 Decoding performance 8MP(4K):2CH@30fps 5MP:4CH@20fps 4MP:4CH@30fps 2MP(1080P):8CH 30fps/s with Huawei SDC to turn on the target recognition AI function, decoding performance is half of the original Preview mode 1/4/6/8/9/10/12/13/14/16 picture Network video input 16 channels, access capacity 168Mbps Video forwarding Forwarding capacity 128Mbps Playback download Playback capacity 128Mbps
