Huawei PM60MA-2H-HSS Red Apple 2-channel HD Network Digital Matrix

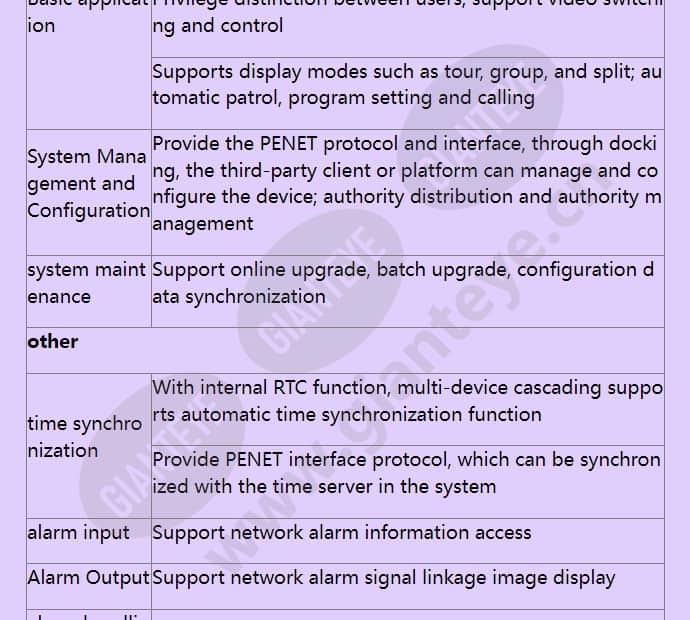

manage and configure the device; authority distribution and authority management system maintenance Support online upgrade, batch upgrade, configuration data synchronization other time synchronization With internal RTC function, multi-device cascading supports automatic time synchronization function Provide PENET interface protocol, which can be synchronized with the time server in the system alarm input Support network alarm information access Alarm Output Support network alarm signal linkage image display alarm handling Support automatic and manual alarm processing mode Maximum decoding delay 250ms equipment power supply 12V2A DC Power consumption <10W Equipment operating temperature 0 ~45°C Equipment working humidity 10% ~90% Mechanical structure 217.5mm( L) x 126.2mm (W) x 36mm (H)
