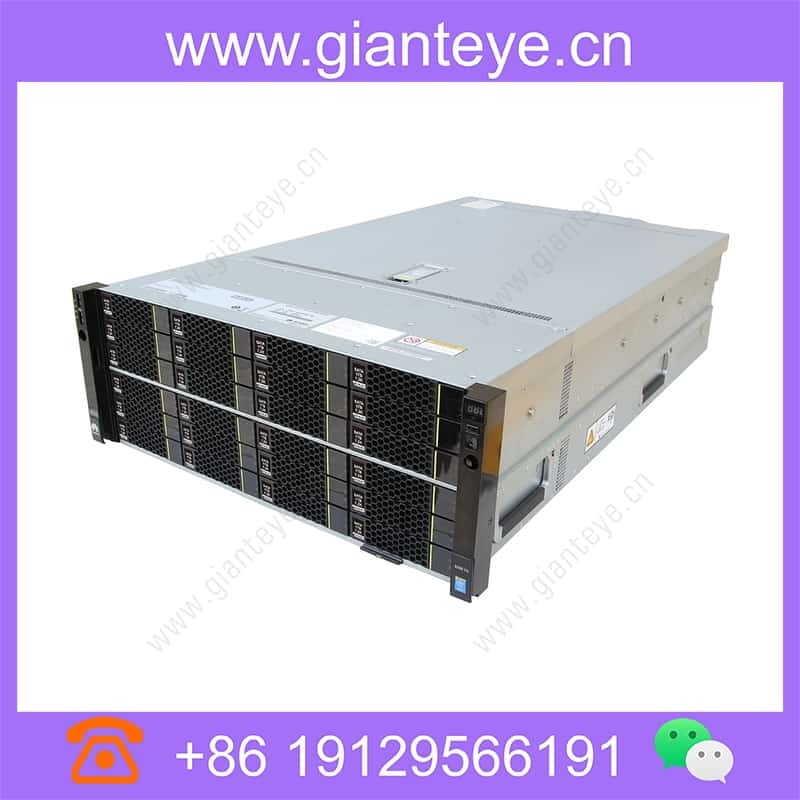

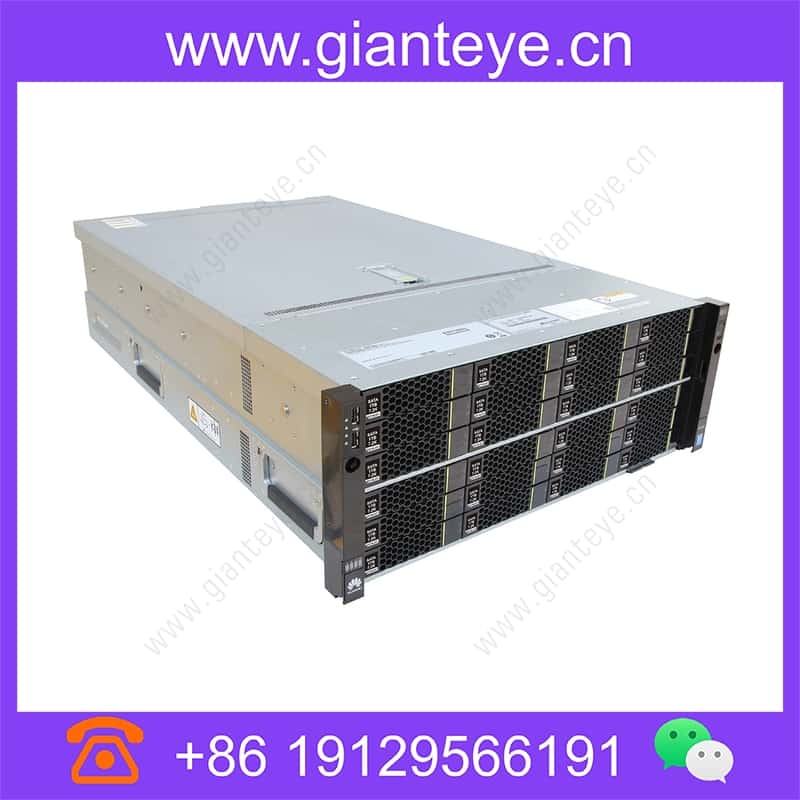

Huawei VCN3010 Video Cloud Node 256-channel 40-bay Dual Power 02311FUY

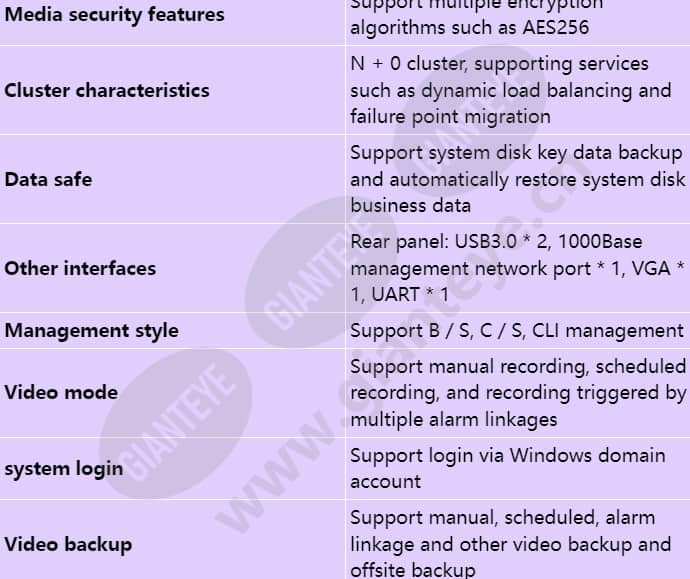

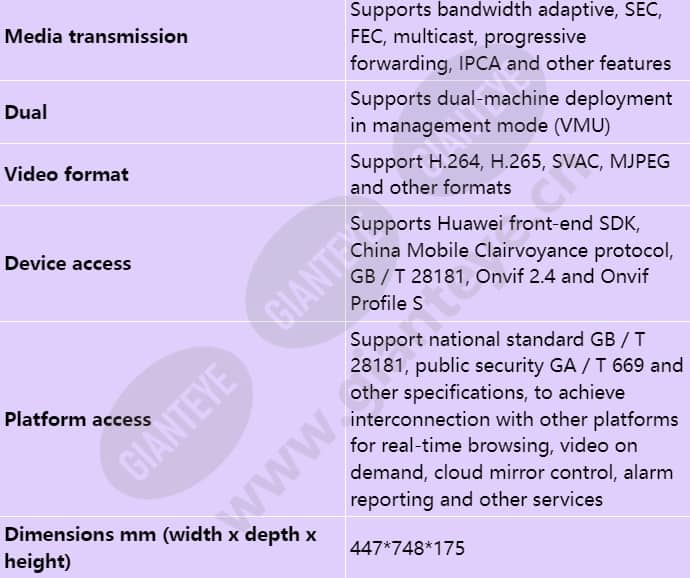

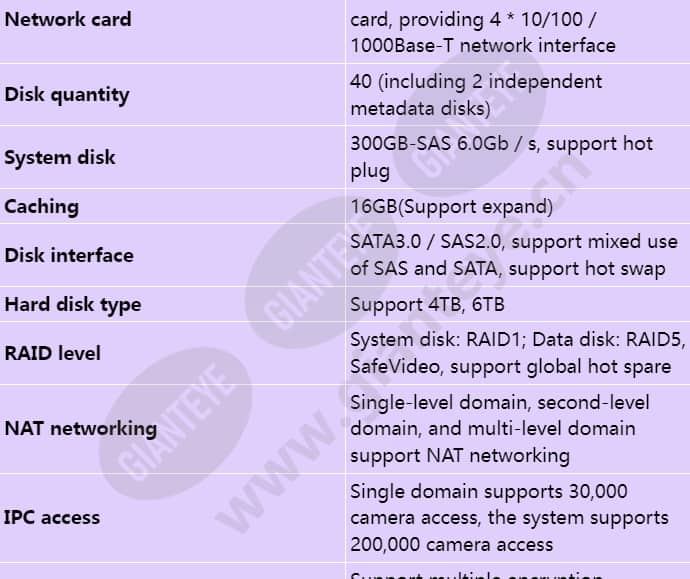

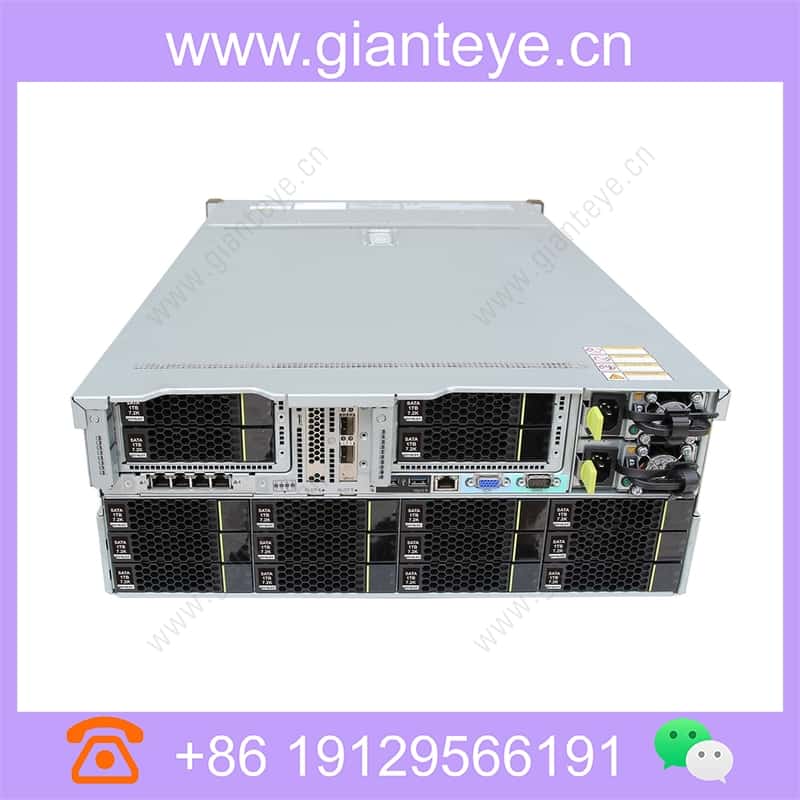

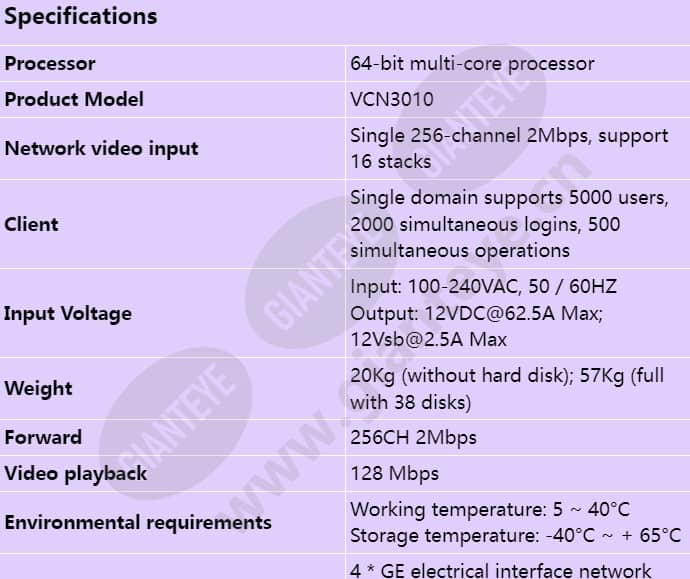

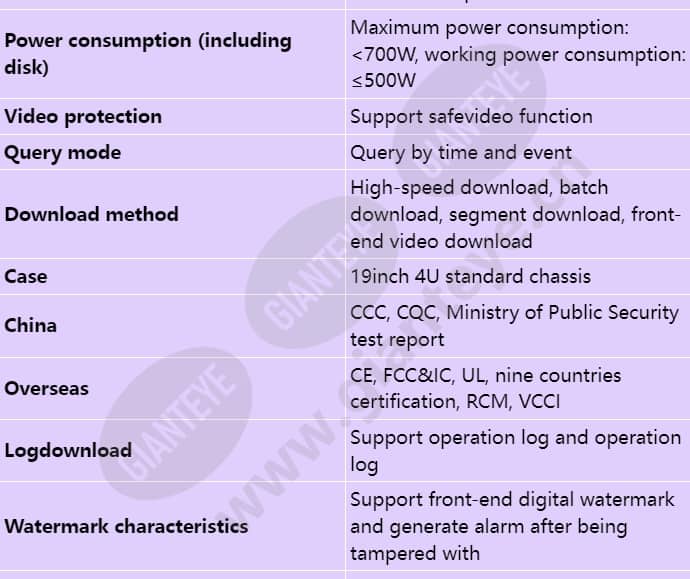

Logdownload Support operation log and operation log Network card 4 * GE electrical interface network card, providing 4 * 10/100 / 1000Base-T network interface Other interfaces Rear panel: USB3.0 * 2, 1000Base management network port * 1, VGA * 1, UART * 1 Environmental requirements Working temperature: 5 ~ 40°C Storage temperature: -40°C ~ + 65°C Power consumption (including disk) Maximum power consumption: <700W, working power consumption: ≤500W Input voltage Input: 100-240VAC, 50 / 60HZ Output: 12VDC@62.5A Max; 12Vsb@2.5A Max Dimensions mm (width x depth x height) 447*748*175 Case 19inch 4U standard chassis Weight 20Kg (without hard disk); 57Kg (full with 38 disks) China CCC, CQC, Ministry of Public Security test report Overseas CE, FCC&IC, UL, nine countries certification, RCM, VCCI
