TAMRON M118FM12 1/1.8" 12mm F/1.4-16 Manual Iris Machine Vision Lens C Mount

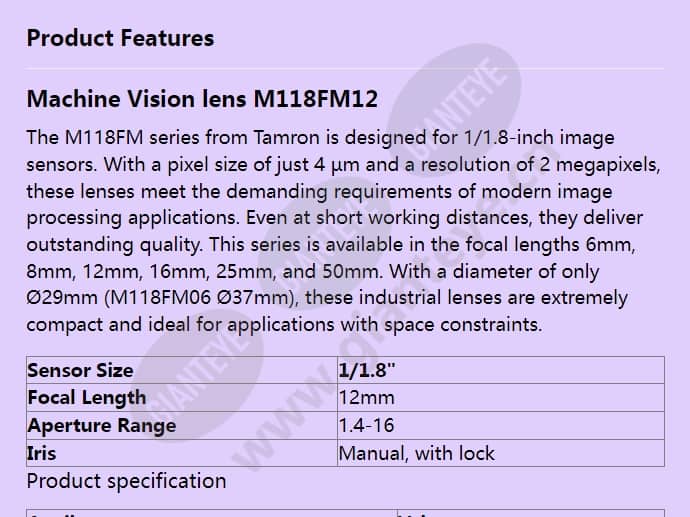

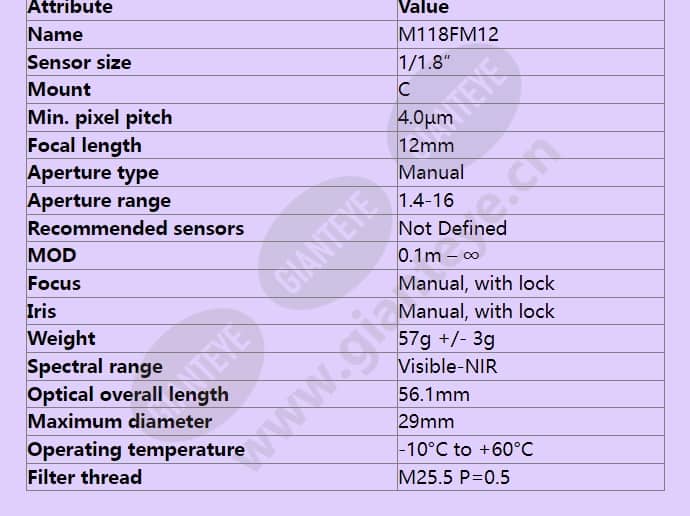

Even at short working distances, they deliver outstanding quality. This series is available in the focal lengths 6mm, 8mm, 12mm, 16mm, 25mm, and 50mm. With a diameter of only Ø29mm (M118FM06 Ø37mm), these industrial lenses are extremely compact and ideal for applications with space constraints. Sensor Size 1/1.8" Focal Length 12mm Aperture Range 1.4-16 Iris Manual, with lock Product specification Attribute Value Name M118FM12 Sensor size 1/1.8″ Mount C Min. pixel pitch 4.0µm Focal length 12mm Aperture type Manual Aperture range 1.4-16 Recommended sensors Not Defined MOD 0.1m – ∞ Focus Manual, with lock Iris Manual, with lock Weight 57g +/- 3g Spectral range Visible-NIR Optical overall length 56.1mm Maximum diameter 29mm Operating temperature -10°C to +60°C Filter thread M25.5 P=0.5
