TAMRON MA23F25V 2/3" 25mm F/2.4-16 Manual Iris Machine Vision Lens C Mount

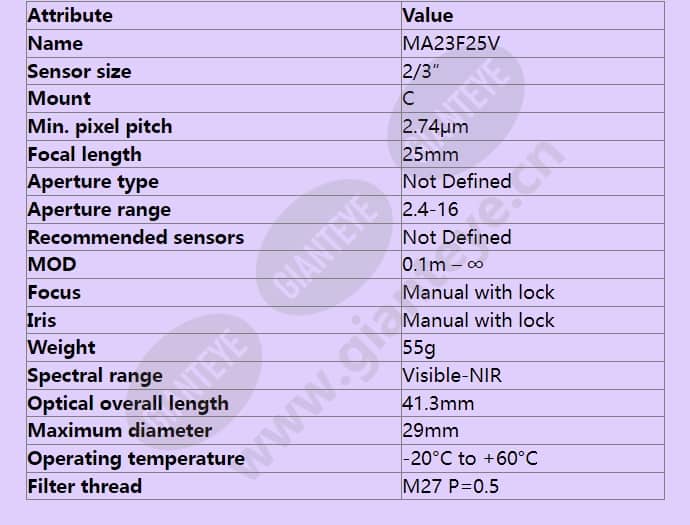

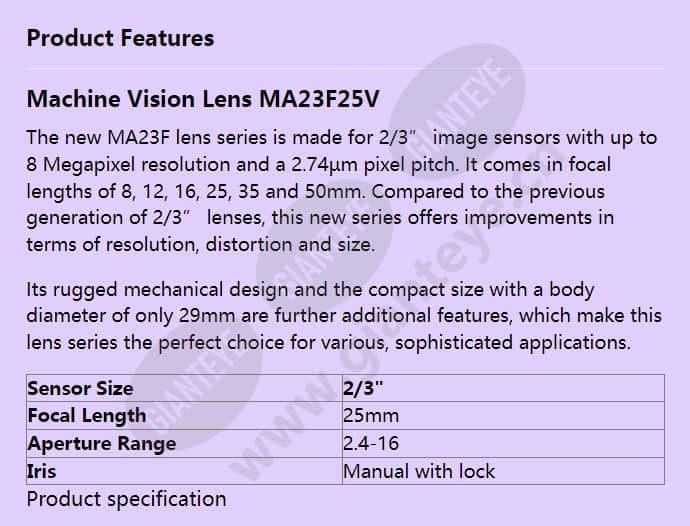

generation of 2/3” lenses, this new series offers improvements in terms of resolution, distortion and size. Its rugged mechanical design and the compact size with a body diameter of only 29mm are further additional features, which make this lens series the perfect choice for various, sophisticated applications. Sensor Size 2/3" Focal Length 25mm Aperture Range 2.4-16 Iris Manual with lock Product specification Attribute Value Name MA23F25V Sensor size 2/3″ Mount C Min. pixel pitch 2.74μm Focal length 25mm Aperture type Not Defined Aperture range 2.4-16 Recommended sensors Not Defined MOD 0.1m – ∞ Focus Manual with lock Iris Manual with lock Weight 55g Spectral range Visible-NIR Optical overall length 41.3mm Maximum diameter 29mm Operating temperature -20°C to +60°C Filter thread M27 P=0.5
