TP-LINK TL-FC311B-P3 Optical Transceiver Power all-in-one Machine 1SC+1GE+2DC

Brand: TP-LINK

Model: TL-FC311B-P3

Dimensions: 170mm x 100mm x 38.50mm

1550 nm

Floor support 3km single mode fiber transmission

Power Specifications

Indicator light

size

Installation method

Use environment

Product Features

1 Gigabit SC optical port, 1 Gigabit RJ45 network port, 1 DC output interface
Based on wavelength division multiplexing technology, single-mode single-fiber transmission, the longest transmission distance is 3 kilometers
Transmit wavelength 1310nm, received wavelength 1550 nm
Stable output 12V voltage, maximum output power 15.6W
170-240VAC voltage input, adapt to national electricity

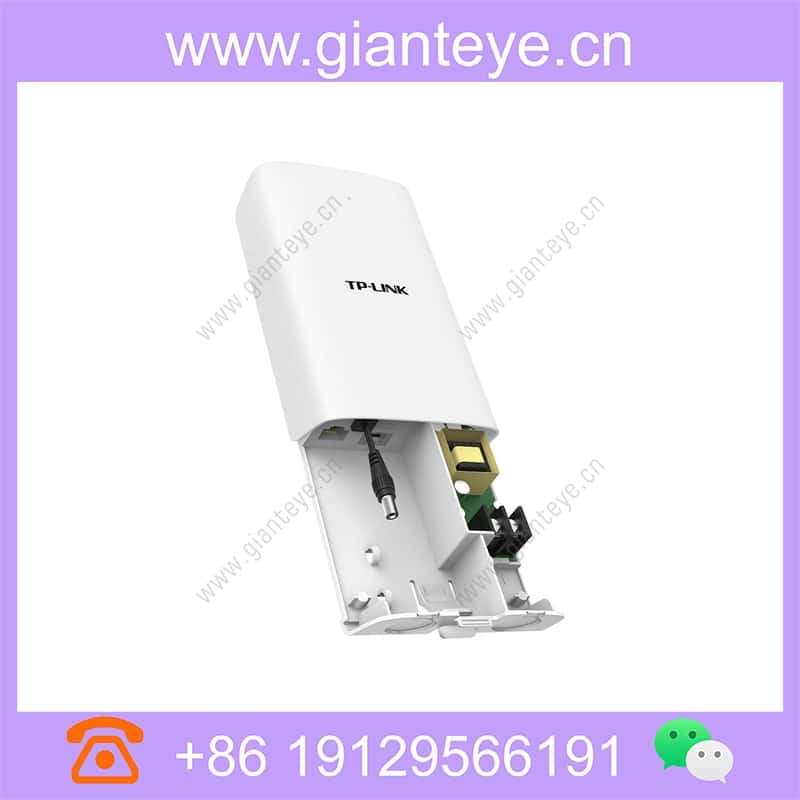

Adopt drawer rainproof design, PC fire retardant shell
Support wall-mounted or hugging installation
Adaptable market mainstream webcam

Property Description	Property Value
Supported standards	IEEE 802.3、IEEE 802.3i、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z、IEEE 802.3x
Port specifications	1 100 / 1000Mbps SC Fiber Port 1 10/100/1000Mbps RJ45 Interface 1 DC Output Interface
Optical module specifications	Emission wavelength 1310nm, receive wavelength 1550 nm Floor support 3km single mode fiber transmission
Power Specifications	AC input: 170V-240V DC output: 12V / 1.3A (operating temperature: -20°C ~ 40°C) DC output: 12V / 0.7 A (operating temperature: 40°C ~ 60°C)
Indicator light	white light, indicating power supply and data link status
size	170mm x 100mm x 38.5mm
Installation method	Wall-mounted or hug
Use environment	operating temperature: -20°C ~ 60°C Working humidity: 10% ~ 90% RH does not condense storage temperature: -40°C ~ 70°C < / li> storage humidity: 5% ~ 90% RH does not condense Outdoor rain (product needs forward vertical installation)
