TP-LINK TL-FC314PB-20 Fiber Transceiver Gigabit Single Mode Single Fiber 1SC 4GE PoE 20KM
fiber interface 4 10/100/1000Mbps adaptive RJ45 port (support PoE) Transmission wavelength TX:1310nm RX:1550nm Transmission medium Network cable: Category 5 or above UTP and STP fiber: 9/125um single-mode fiber Indicator light Optical and electrical ports Link / Act, PWR power supply 53.5VDC/1.13A size 100mm*98mm*25mm Use environment Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing Light parameter Average transmit optical power: -9~-1dBm Receive sensitivity: -22dBm Data transmission rate per port 2Gbps full duplex Packet forwarding rate 10BASE-T: 14881pps/port 100BASE-TX: 148810pps/port 1000BASE-T: 1488095pps/port 1000BASE-X: 1488095pps/port MAC address depth 2K Internal cache 1Mbit
Product Features

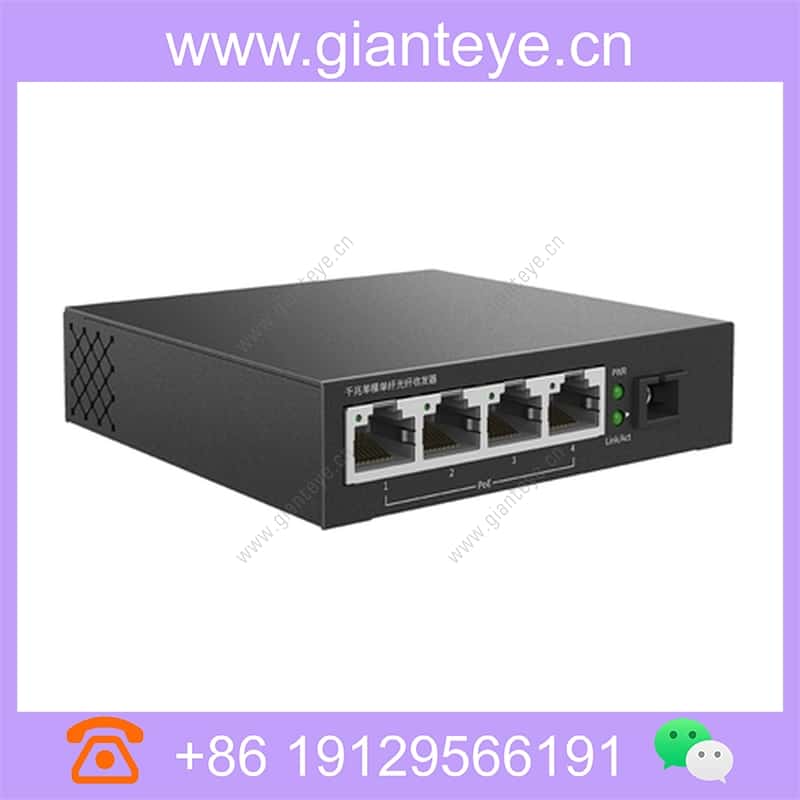

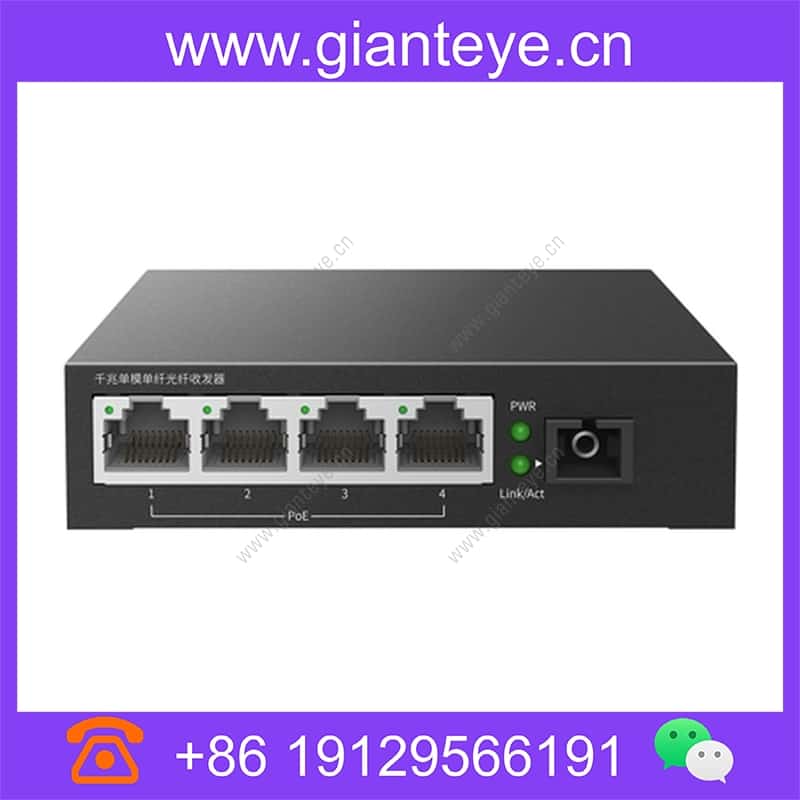

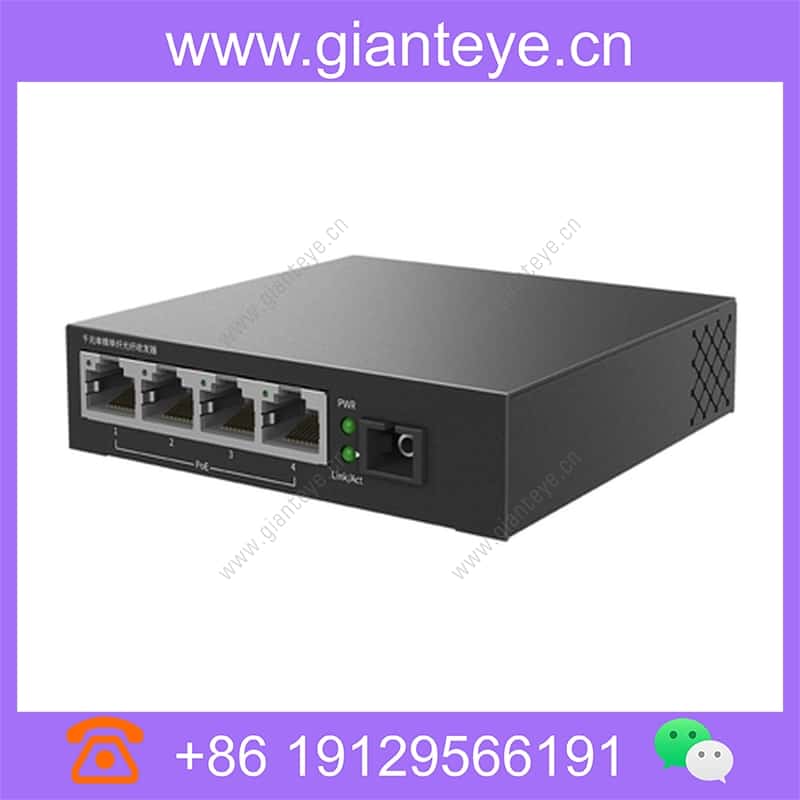

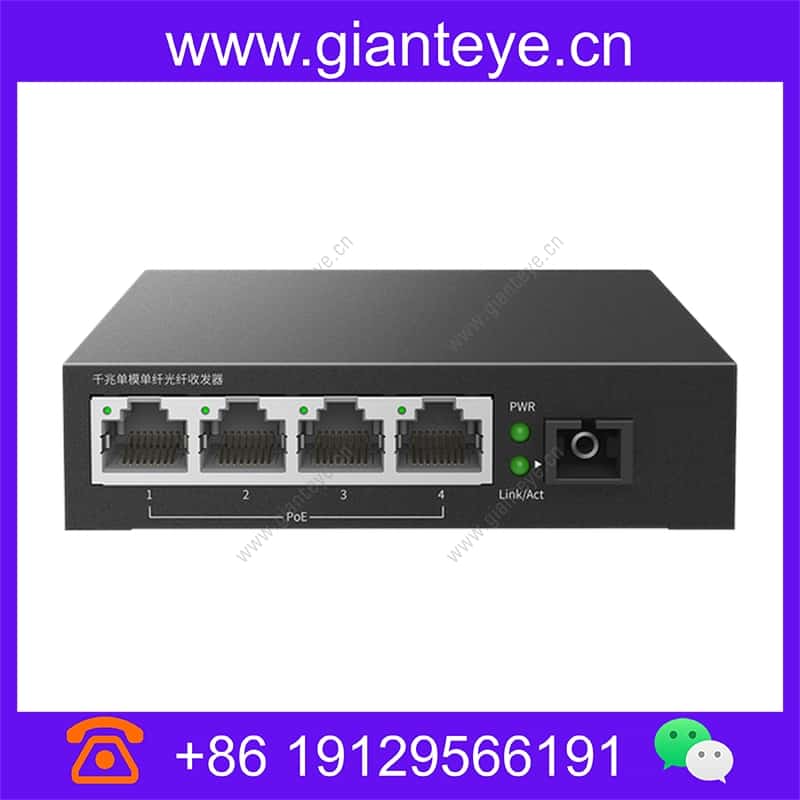

TL-FC314PB-20 is a Gigabit single-mode single-fiber optical fiber transceiver that supports PoE function. It provides four 1000Mbps electrical ports and one 1.25Gbps SC optical port that support PoE function. Perform conversion and perform long-distance data transmission through optical fiber. TL-FC314PB-20 uses wavelength division multiplexing technology, with a transmission wavelength of 1310nm and a reception wavelength of 1550nm. It can simultaneously receive and send data through a single-mode fiber, with a maximum transmission distance of 20 kilometers. TL-FC314PB-20 has a built-in dedicated PSE chip, supports multi-point detection technology, accurately samples real-time current, and provides safe and stable power supply for powered devices. TL-FC314PB-20 supports intelligent power management. When the total power exceeds the rated standard, it can intelligently disconnect the power supply of the low-priority port according to the port priority, so as to avoid the power supply overrun and ensure the continuous and stable power supply of important ports. TL-FC314PB-20 has a complete protection mechanism for over-current, over-voltage, surge, short circuit, etc. Each port is equipped with an independent circuit and a fuse, even if an individual line fails, it can still guarantee the normal operation of other ports. TL-FC314PB-20 is recommended to be used in combination with TL-FC311A-20 to give full play to product performance. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Supported standards | IEEE 802.3、IEEE802.3i、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at |
| interface | 1 100/1000Mbps SC optical fiber interface 4 10/100/1000Mbps adaptive RJ45 port (support PoE) |
| Transmission wavelength | TX:1310nm RX:1550nm |
| Transmission medium | Network cable: Category 5 or above UTP and STP fiber: 9/125um single-mode fiber |
| Indicator light | Optical and electrical ports Link / Act, PWR |

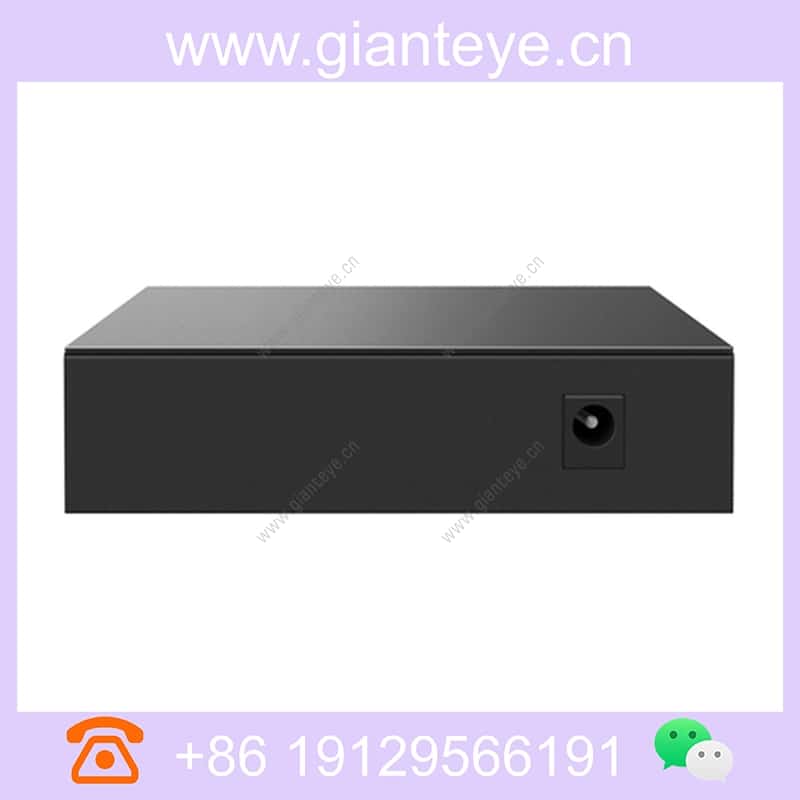

| power supply | 53.5VDC/1.13A |
| size | 100mm*98mm*25mm |
| Use environment | Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| Light parameter | Average transmit optical power: -9~-1dBm Receive sensitivity: -22dBm |
| Data transmission rate per port | 2Gbps full duplex |
| Packet forwarding rate | 10BASE-T: 14881pps/port 100BASE-TX: 148810pps/port 1000BASE-T: 1488095pps/port 1000BASE-X: 1488095pps/port |
| MAC address depth | 2K |
| Internal cache | 1Mbit |
