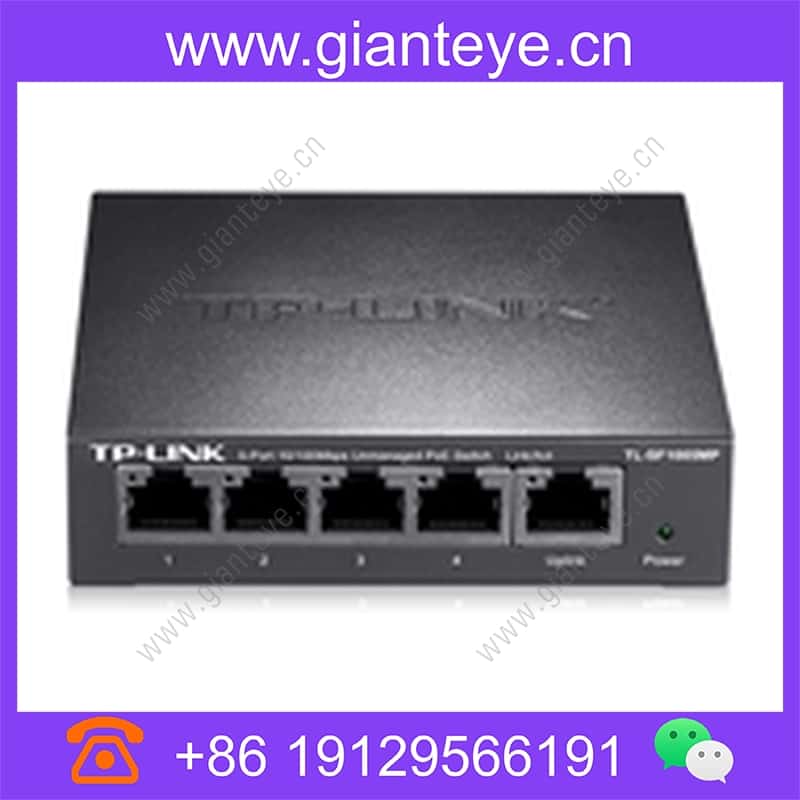

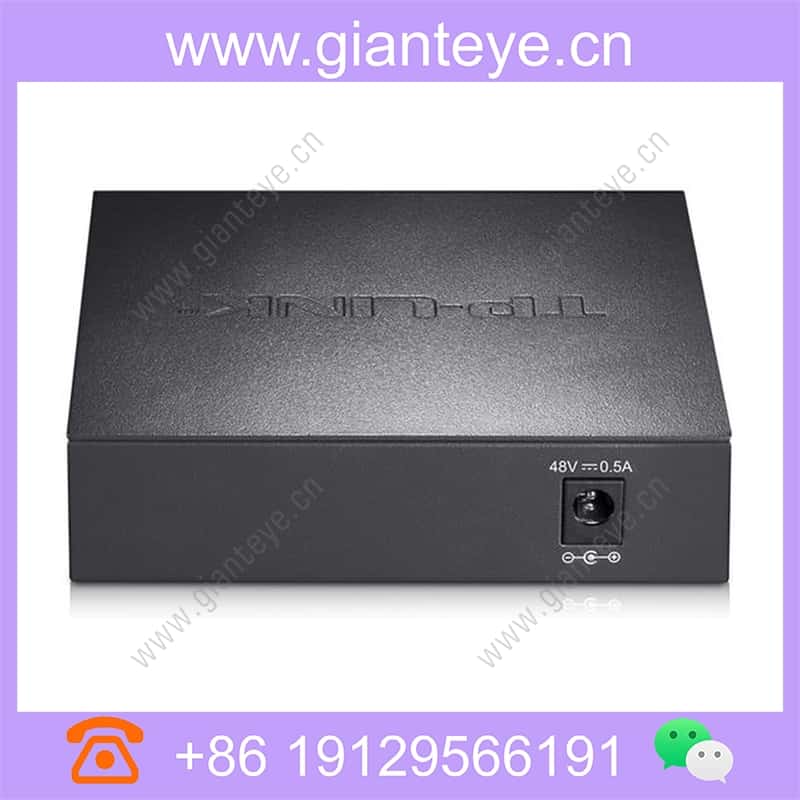

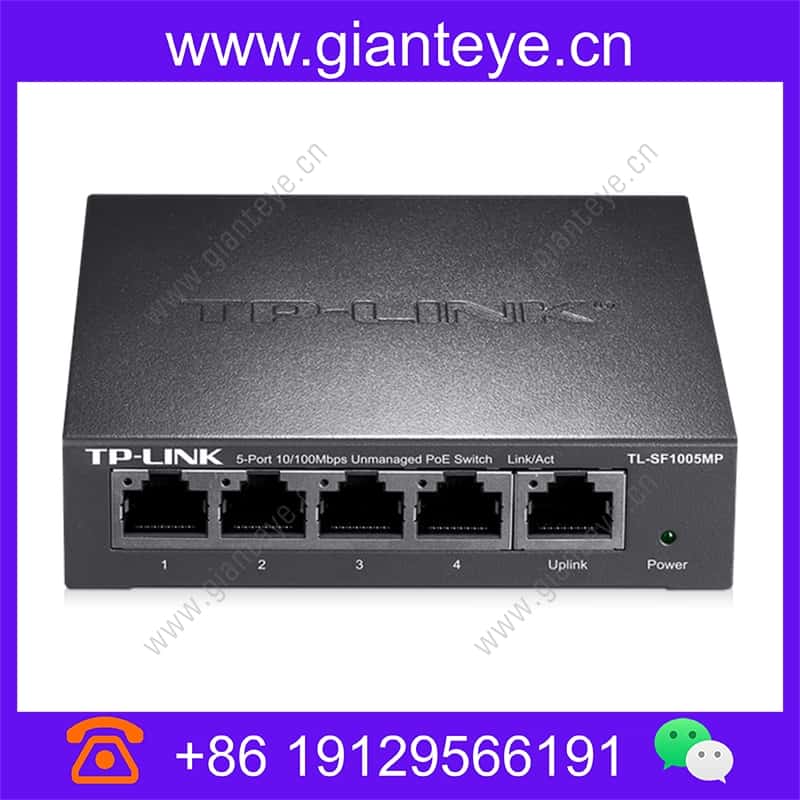

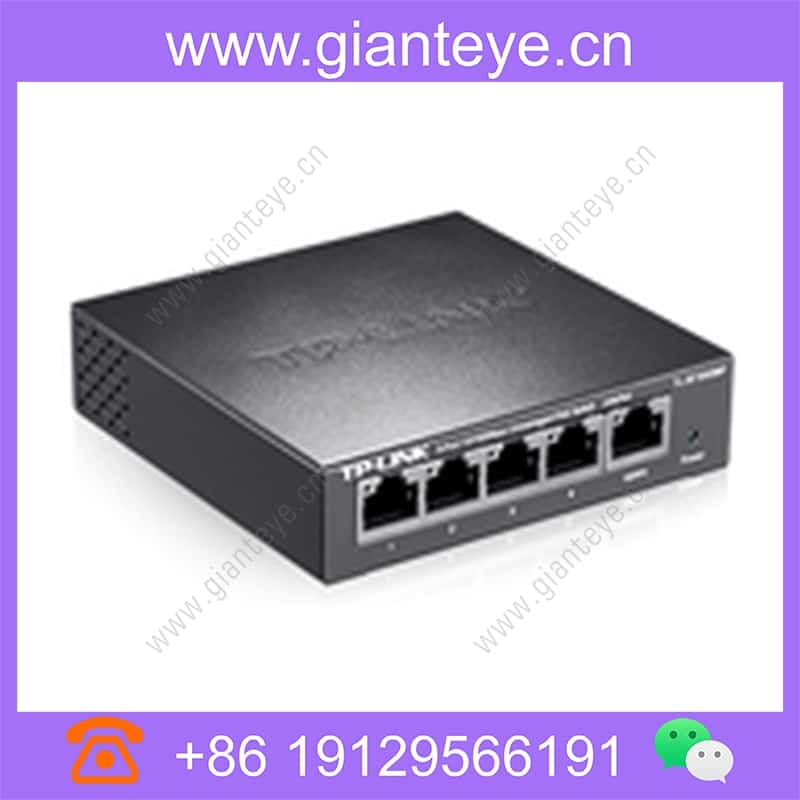

TP-LINK TL-SF1005MP 5-port 100M unmanaged PoE switch 1FE 4PoE 21W iron shell

Brand: TP-LINK

Model: TL-SF1005MP

Dimensions: 100mm x 98mm x 25mm

(10Mbps) no MAC address capacity 2K Shell size (mm) 158×100×25 100×98×25 226×131×35 100×98×25 100×98×25 100×98×25 Input power 53.5VDC/1.13A 220VAC , 50Hz 53.5VDC/1.13A 53.5VDC/0.45A Use environment Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation 100M RJ45 port 5 PoE port 4FE Maximum PoE output power of the whole machine 21W Machine power consumption 25W PoE standard IEEE 802.3af Maximum PoE output power of the port 15.4W Mode switch no MAC address capacity 2K Shell size (mm) 100x98x25 Input power 53.5VDC/0.45A Use environment Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing

Product Features

Four 10/100 Base-T RJ45 ports support PoE power supply
1 10/100 Base-T RJ45 uplink port
The PoE power supply of the whole machine reaches 21W, and the single-port PoE power supply reaches 15.4W
Support IEEE 802.3af PoE power supply standard
PoE power port supports priority mechanism

Product model	TL-SF1008P	TL-SF1006P	TL-SF1005PE	TL-SF1005PF	TL-SF1005P	TL-SF1005MP
100M RJ45 port	8	6	5	5	5	5
PoE port	4FE	4FE	4FE	4FE	4FE	4FE
Maximum PoE output power of the whole machine	57W	57W	62W	57W	57W	21W
Machine power consumption	68W	68W	72W	68W	68W	25W
PoE standard	IEEE 802.3af	IEEE 802.3at(PoE+)、IEEE 802.3af				IEEE 802.3af
Maximum PoE output power of the port	15.4W	30W				15.4W
Mode switch	no			Standard Exchange 1~4 extension (10Mbps)	no
MAC address capacity	2K
Shell size (mm)	158×100×25	100×98×25	226×131×35	100×98×25	100×98×25	100×98×25
Input power	53.5VDC/1.13A		220VAC , 50Hz	53.5VDC/1.13A		53.5VDC/0.45A
Use environment	Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation

Technical Specifications

Property Description	Property Value
100M RJ45 port	5
PoE port	4FE
Maximum PoE output power of the whole machine	21W
Machine power consumption	25W
PoE standard	IEEE 802.3af
Maximum PoE output power of the port	15.4W
Mode switch	no
MAC address capacity	2K
Shell size (mm)	100x98x25
Input power	53.5VDC/0.45A
Use environment	Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing
