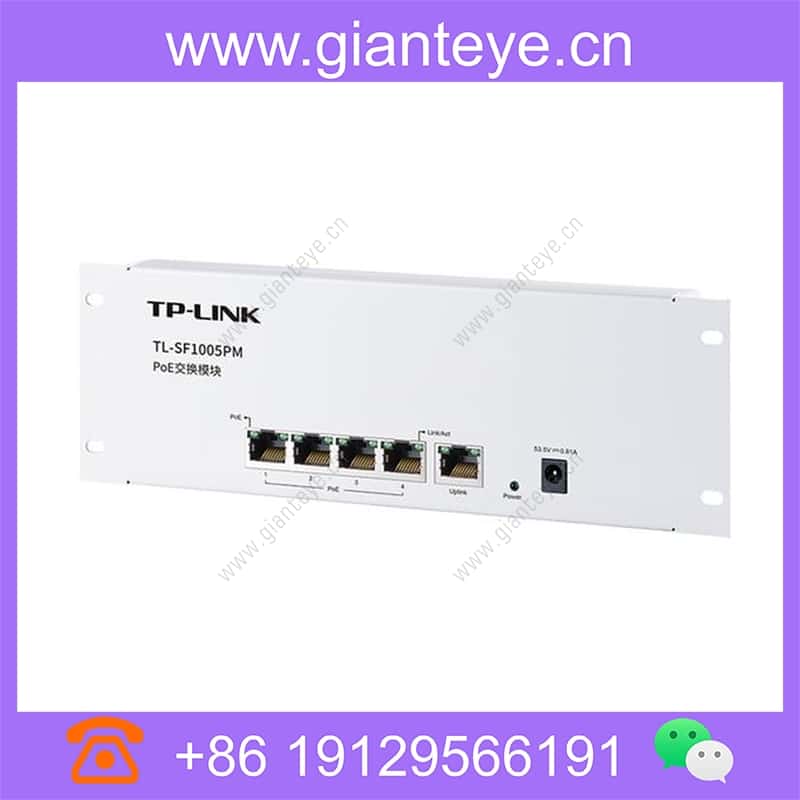

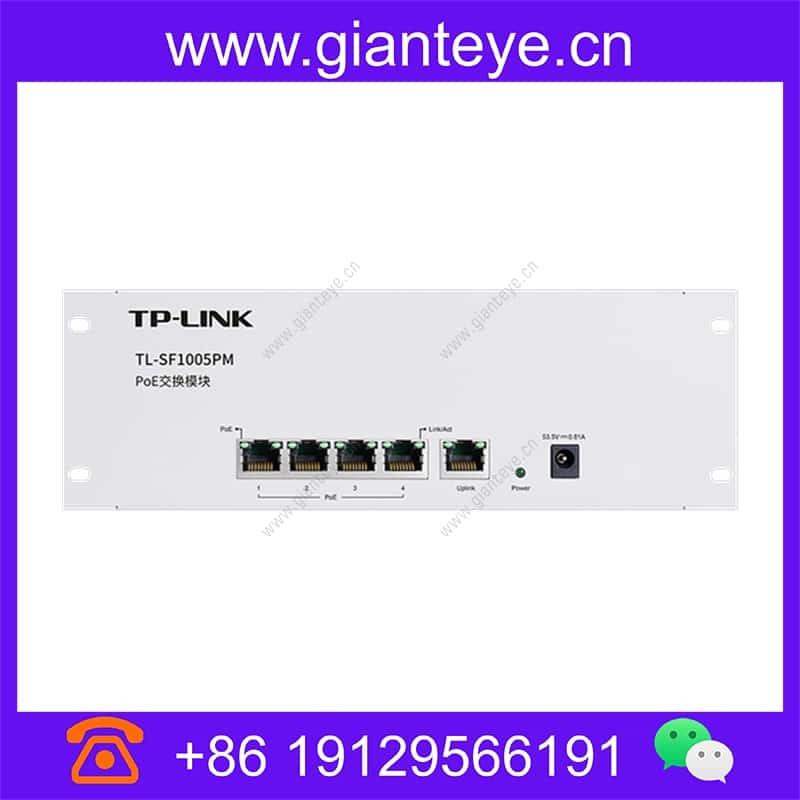

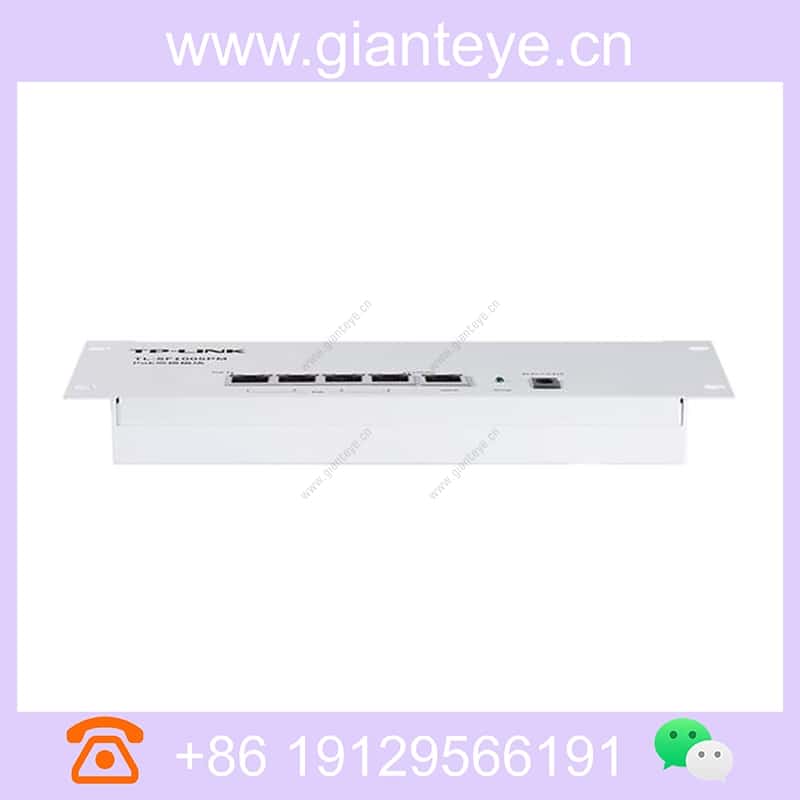

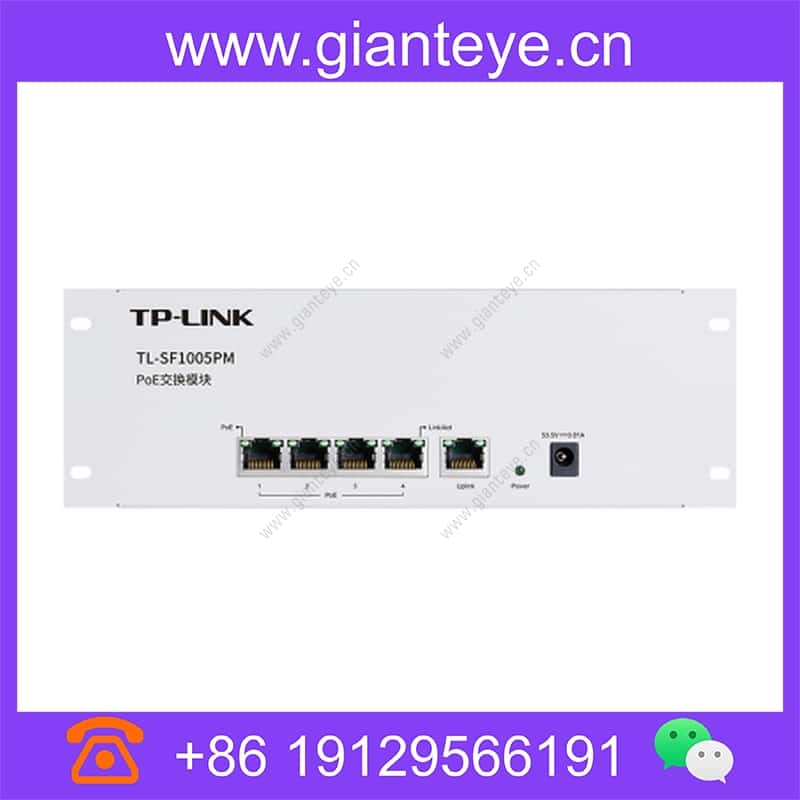

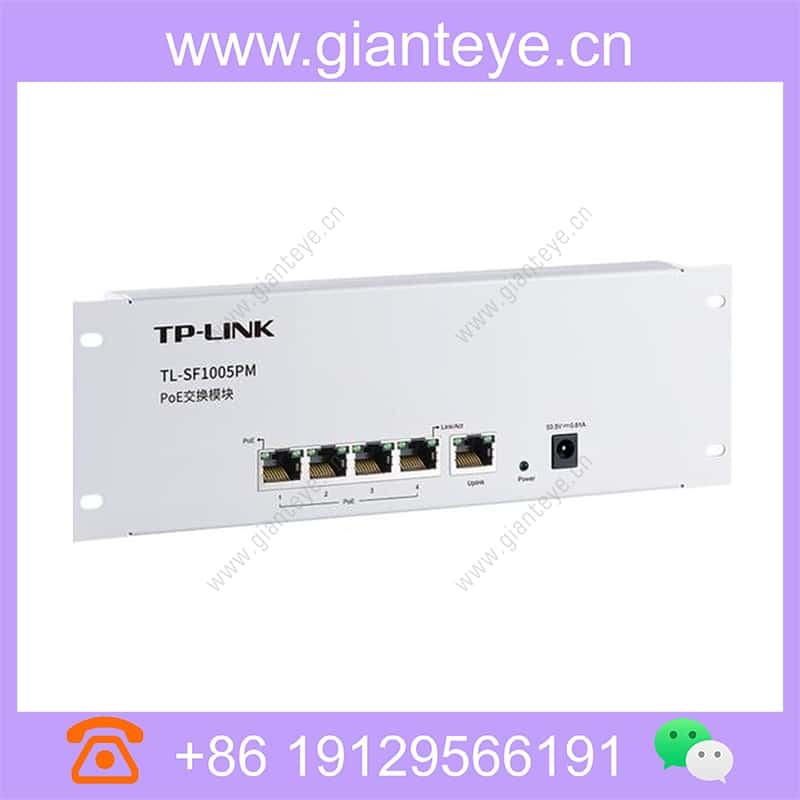

TP-LINK TL-SF1005PM 5-port 100M unmanaged PoE switch module 1FE 4PoE 41W iron shell

Brand: TP-LINK

Model: TL-SF1005PM

Dimensions: 225mm x 74mm x 24mm

safety requirements, and is safe and reliable to use. easy to use Plug and play, no configuration, simple and convenient. Users can easily understand the working status of the device through the power indicator (Power), port status indicator (Link/Act, PoE). 100M RJ45 port 5 Gigabit RJ45 port 0 PoE port 4FE Maximum PoE output power of the whole machine 41W PoE standard IEEE 802.3at(PoE+)、IEEE 802.3af Maximum PoE output power of the port 30W MAC address capacity 2K Dimensions (mm) Case size 225mm*74mm*24mm, horizontal mounting screw hole spacing 213mm, vertical mounting screw hole spacing 50mm Input power 53.5VDC/0.81A Use environment Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing

Product Features

Provides 5 10/100 Base-T RJ45 ports
RJ45 ports 1 to 4 support IEEE 802.3af/at PoE power supply standard
The PoE power supply of the whole machine reaches 41W, and the single-port PoE power supply reaches 30W
PoE power port supports priority mechanism
Designed for household weak current box, the size is 225mm*74mm*24mm
Horizontal mounting screw hole spacing 213mm, vertical mounting screw hole spacing 50mm

TP-LINK newly developed PoE switch module, including 5/9 ports, 100M/Gigabit products, supports IEEE 802.3af/at PoE power supply standard, designed for household weak current box, easy to install, plug and play, Meet the family's demand for PoE power supply network.

Rich port specifications

PoE switch module series products provide 5FE, 9FE, 5GE, 9GE multiple port combinations.
All ports support non-blocking wire-speed forwarding for smoother transmission.
Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.

PoE power supply function

Provide 4/8 PoE power supply ports to meet the needs of PoE power supply networks such as home security monitoring and wireless coverage.
Comply with IEEE 802.3af/at PoE power supply standard, single port maximum PoE output power is 30W.
Automatically identify PoE devices for power supply without damaging non-PoE devices.
PoE ports support the priority mechanism. When the remaining power is insufficient, the power supply of the high-priority ports is guaranteed first to avoid overloading the equipment.

Designed for weak current box

Modular design, Mini body, suitable for mainstream weak current boxes/information boxes on the market.
The shell size is 225mm*74mm, the horizontal mounting screw hole spacing is 213mm, and the vertical mounting screw hole spacing is 50mm.

Stable and reliable equipment

The low power consumption design of the host machine ensures good heat dissipation and ensures the stable operation of the product.
Adopt TP-LINK's self-developed power supply and high redundancy design to provide long-term stable PoE power output.
The equipment meets national CCC standards, fully meets safety requirements, and is safe and reliable to use.

easy to use

Plug and play, no configuration, simple and convenient.
Users can easily understand the working status of the device through the power indicator (Power), port status indicator (Link/Act, PoE).

Technical Specifications

Property Description	Property Value
100M RJ45 port	5
Gigabit RJ45 port	0
PoE port	4FE
Maximum PoE output power of the whole machine	41W
PoE standard	IEEE 802.3at(PoE+)、IEEE 802.3af
Maximum PoE output power of the port	30W
MAC address capacity	2K
Dimensions (mm)	Case size 225mm74mm24mm, horizontal mounting screw hole spacing 213mm, vertical mounting screw hole spacing 50mm
Input power	53.5VDC/0.81A
Use environment	Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing
