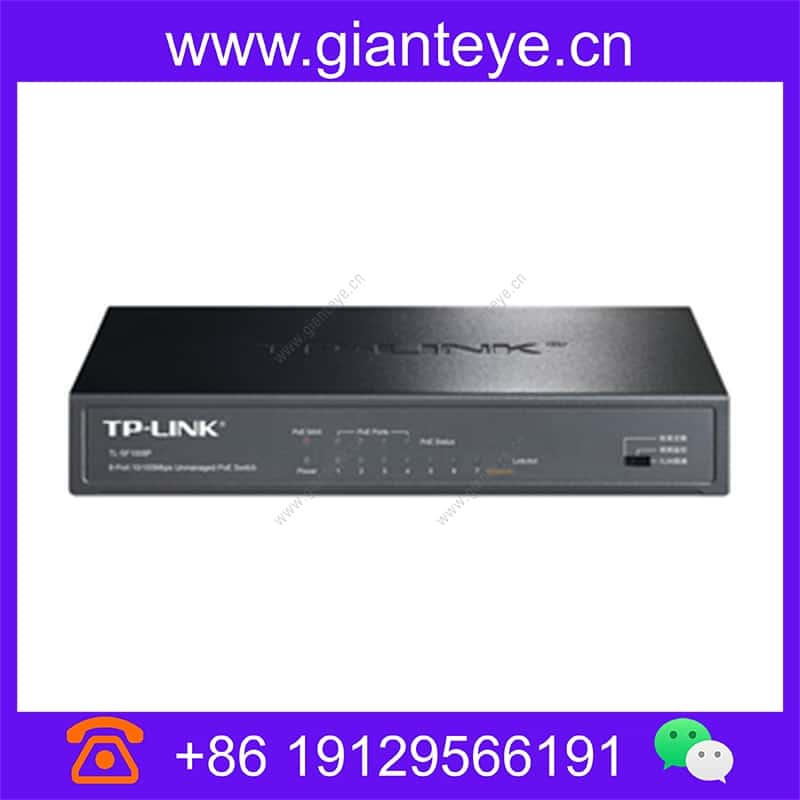

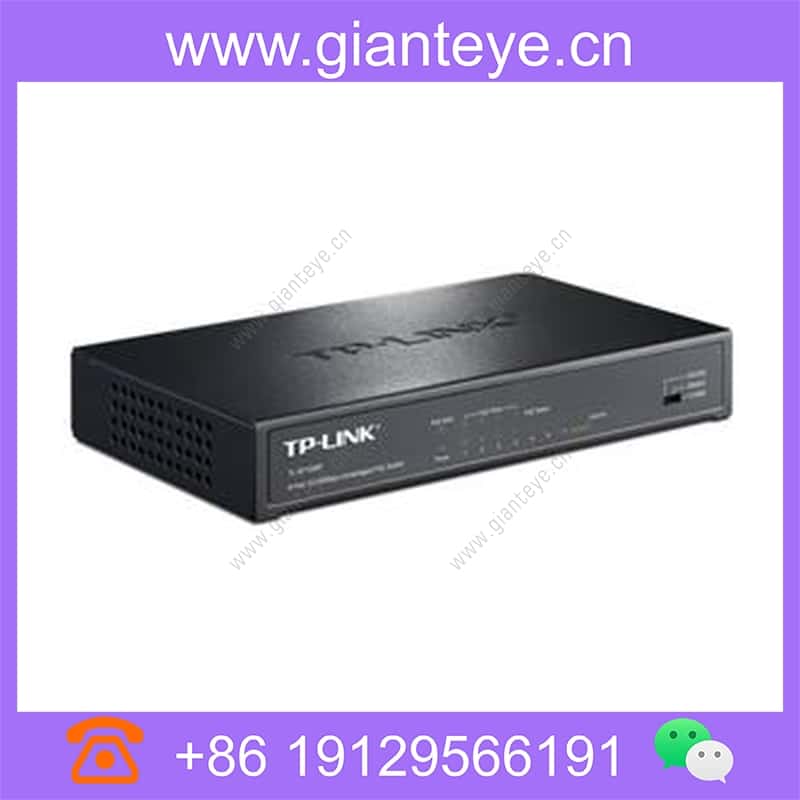

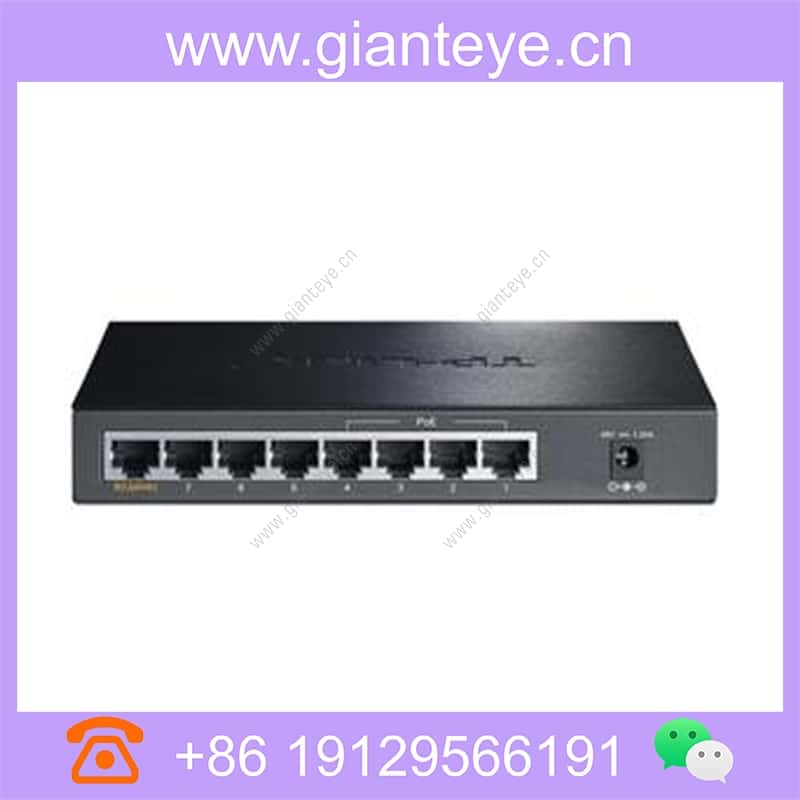

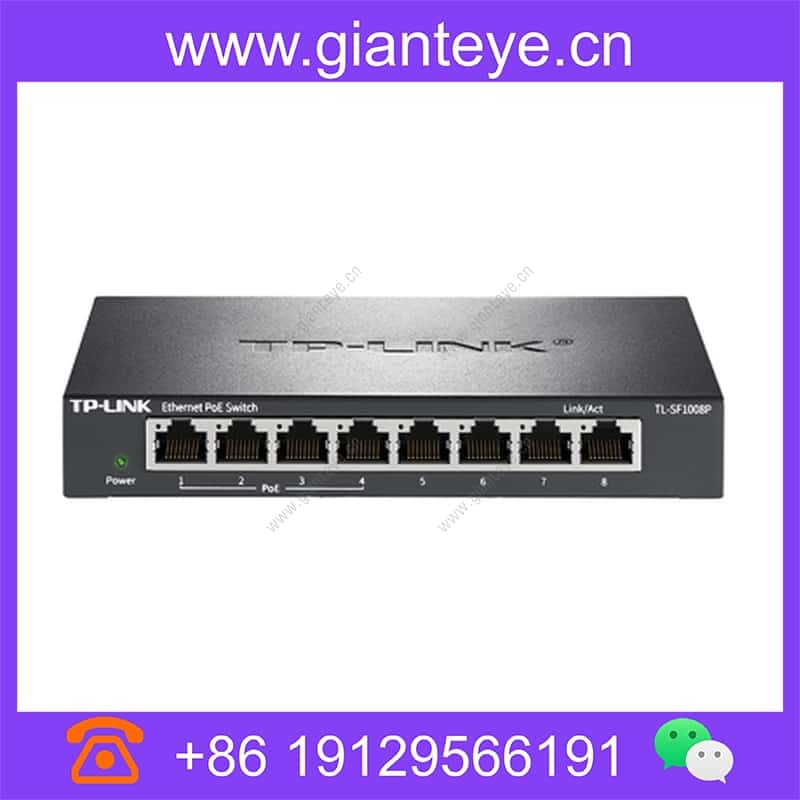

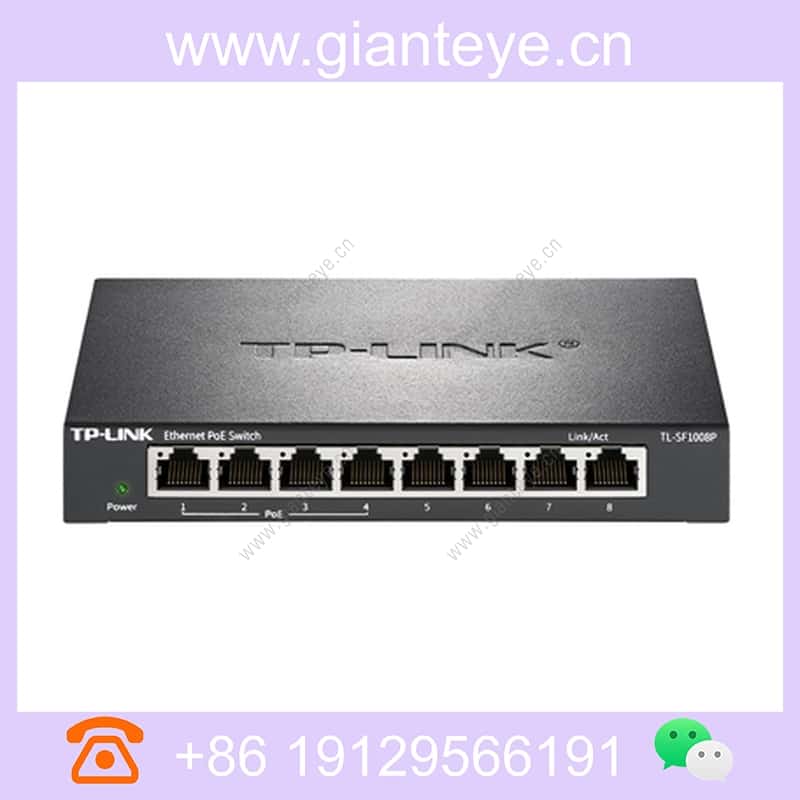

TP-LINK TL-SF1008P 8-port 100M unmanaged PoE switch 4FE 4PoE 57W iron shell

Brand: TP-LINK

Model: TL-SF1008P

Dimensions: 158mm x 100mm x 25mm

provide long-term stable PoE power output. The equipment meets national CCC standards, fully meets safety requirements, and is safe and reliable to use. easy to use Plug and play, no configuration, simple and convenient. Users can easily understand the working status of the device through the power indicator (Power) and port status indicator (Link / Act). 100M RJ45 port 8 PoE port 4FE Maximum PoE output power of the whole machine 57W Machine power consumption 68W PoE standard IEEE 802.3af Maximum PoE output power of the port 15.4W Mode switch no MAC address capacity 2K Shell size (mm) 158x100x25 Input power 53.5VDC/1.13A Use environment Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing

Product Features

Four 10/100 Base-T RJ45 ports support PoE power supply
Four 10/100 Base-T RJ45 ports do not support PoE power
The entire PoE power supply reaches 57W, and the single-port PoE power supply reaches 15.4W
Support IEEE 802.3af PoE power supply standard
PoE power port supports priority mechanism

TL-SF1008P is a non-network-managed PoE switch independently developed by TP-LINK. The 100M ports 1 to 4 support IEEE 802.3af standard PoE power supply. The single-port PoE power reaches 15.4W, and the maximum PoE output power of the whole machine is 57W. The 100M port does not support PoE power supply. As a PoE power supply device, it can automatically detect and identify powered devices that meet the standards and supply power to it through a network cable. Plug-and-play, no configuration, simple and convenient to use, meet the network environment that requires high-density PoE power supply, suitable for hotels, campuses, factory dormitories and small and medium enterprises to form a cost-effective network

Full hundred trillion

Provides eight 10/100 Base-T RJ45 ports.
All ports support non-blocking wire-speed forwarding for smoother transmission.
Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.

PoE power supply function

The four 10/100 Base-T RJ45 ports support PoE power supply, which meets the requirements of PoE power supply in security monitoring, teleconferencing systems, wireless coverage and other scenarios.
It complies with the IEEE 802.3af PoE power supply standard. The maximum PoE output power of the whole machine is 57W, and the maximum PoE output power of a single port is 15.4W.
Automatically identify PoE devices for power supply without damaging non-PoE devices.
PoE ports support the priority mechanism. When the remaining power is insufficient, the power supply of the high-priority ports is guaranteed first to avoid overloading the equipment.

Stable and reliable equipment

The host has a low power consumption design, and the fan strengthens the heat dissipation to ensure the stable operation of the product.
Adopt TP-LINK's self-developed power supply and high redundancy design to provide long-term stable PoE power output.
The equipment meets national CCC standards, fully meets safety requirements, and is safe and reliable to use.

easy to use

Plug and play, no configuration, simple and convenient.
Users can easily understand the working status of the device through the power indicator (Power) and port status indicator (Link / Act).

Technical Specifications

Property Description	Property Value
100M RJ45 port	8
PoE port	4FE
Maximum PoE output power of the whole machine	57W
Machine power consumption	68W
PoE standard	IEEE 802.3af
Maximum PoE output power of the port	15.4W
Mode switch	no
MAC address capacity	2K
Shell size (mm)	158x100x25
Input power	53.5VDC/1.13A
Use environment	Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing
