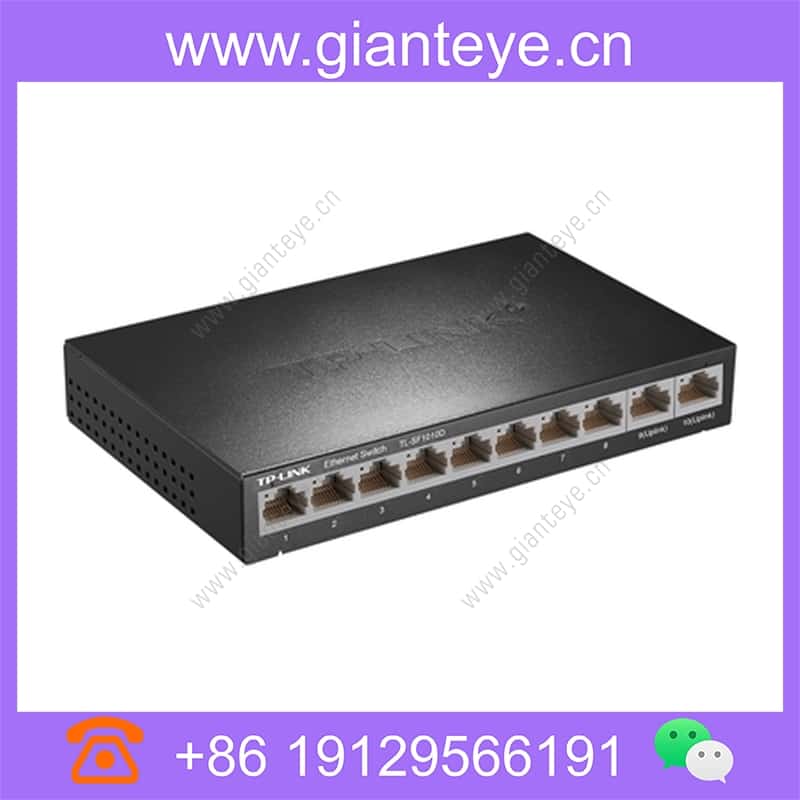

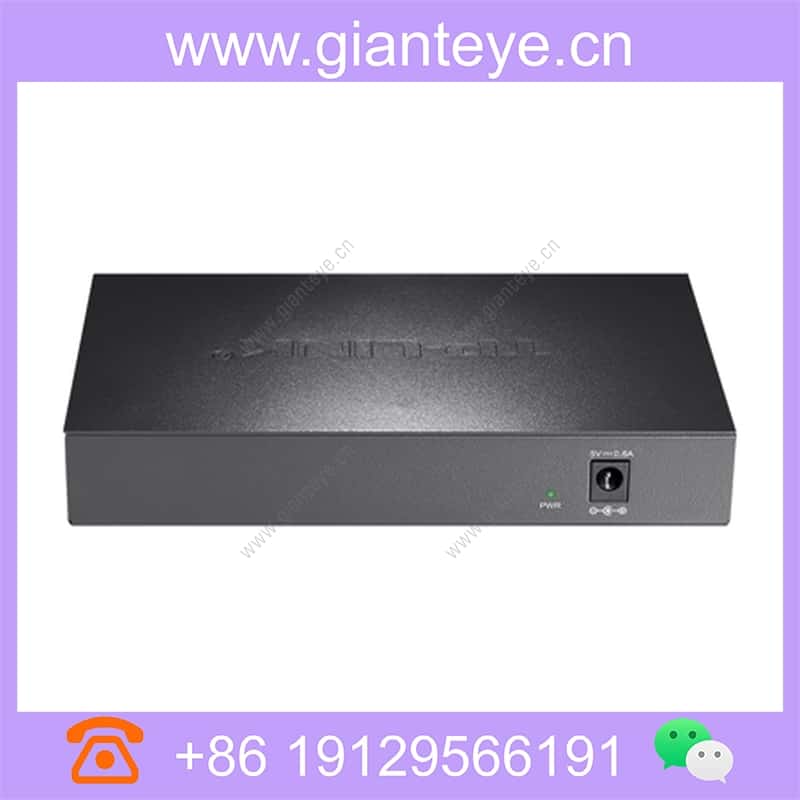

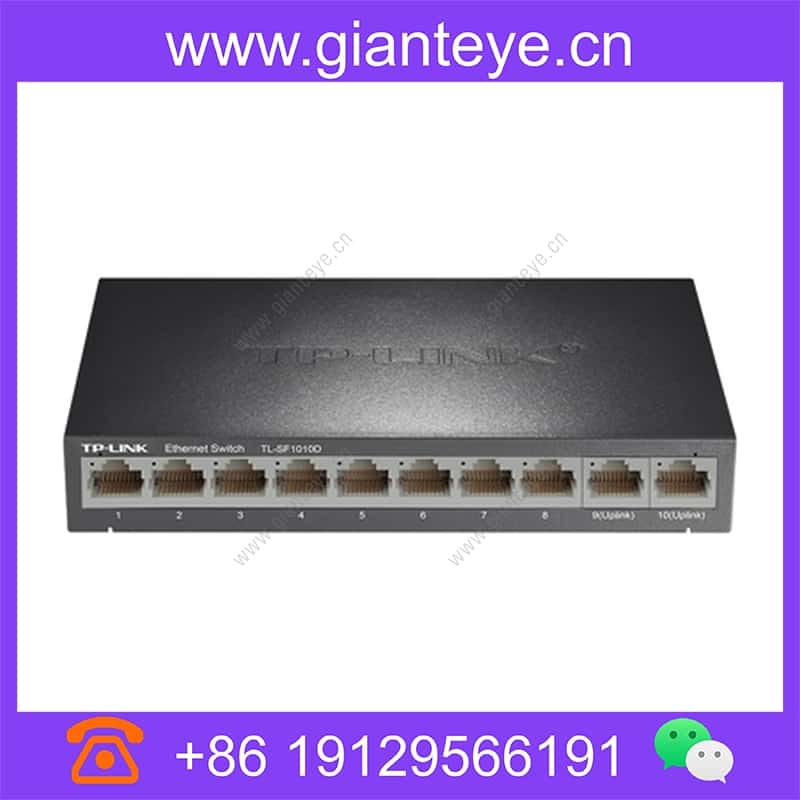

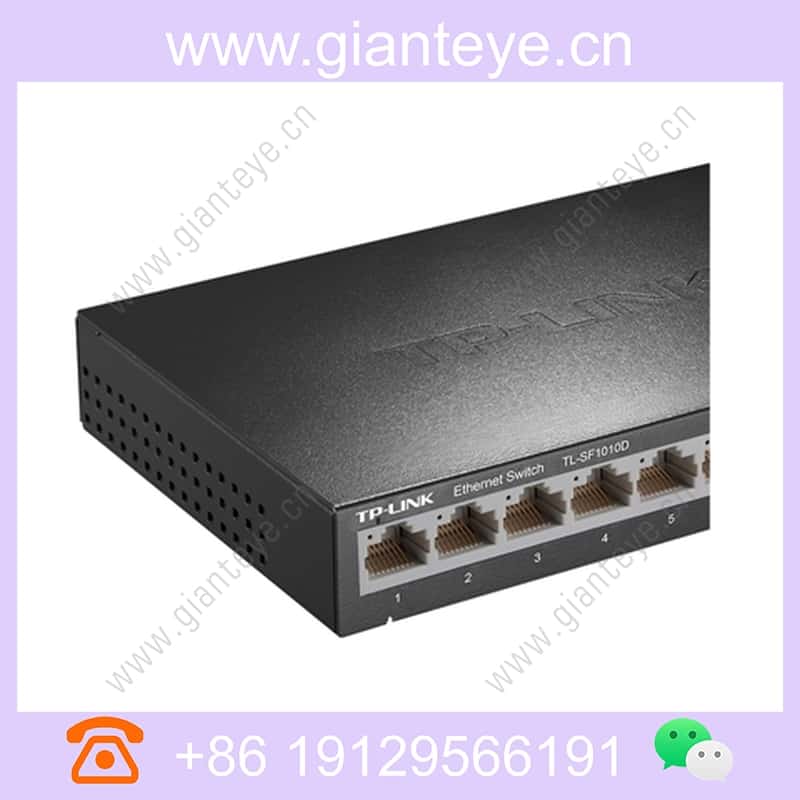

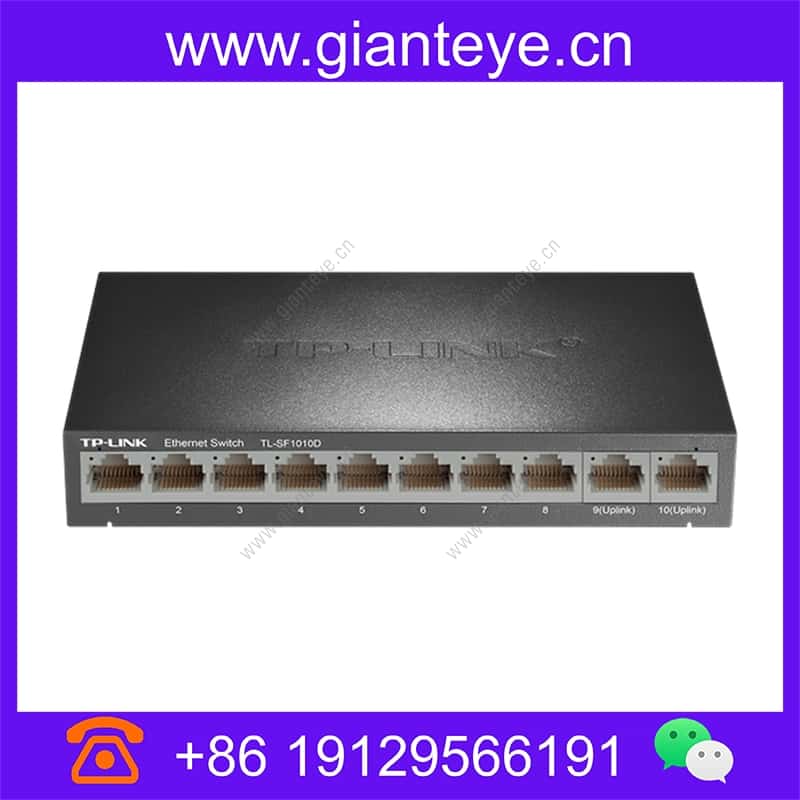

TP-LINK TL-SF1010D 10-port 100M unmanaged switch iron shell layer 2

Brand: TP-LINK

Model: TL-SF1010D

Dimensions: 158mm x 100mm x 25mm

Network media 10BASE-T: Category 3, 4, 5 unShielded twisted pair (≤100 meters) <100BASE-TX: Category 5 and above unShielded twisted pair (≤100 meters) port 10 10/100M adaptive RJ45 ports Indicator light Per port: Link/Act Per device: PWR performance Store and forward support 2K MAC address table depth Overall dimensions (L * W * H) 158x100x25(mm) Input voltage External power adapter: 5VDC / 0.6A Use environment Operating temperature: 0°C~40°C; Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing; Storage humidity: 5%~90% RH non-condensing basic skills Wire-speed forwarding MAC automatic learning and aging IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control Forwarding rate 10BASE-T: 14880pps 100BASE-TX: 148800pps/port

Product Features

10 10/100M self-adaptive RJ45 ports to meet the networking needs of small security monitoring environments
Support port auto flip (Auto MDI / MDIX) function
Support MAC address self-learning; support full-duplex working mode
Plug and play, no management required
Desktop housing with wall mounting holes for flexible deployment

TL-SF1010D is a 10-port 100M Ethernet switch product developed by TP-LINK Technology Co., Ltd. for small security monitoring environment. It provides 8 10/100M ordinary ports and 2 10/100M uplink ports. Only one switch can Meet the needs of 8 or 4 security monitoring networks.

10 100M ports, suitable for small security monitoring network

Provide 8 10/100M ordinary ports and 2 10/100M uplink ports;

Only one switch can meet the networking requirements of 8-way or 4-way security monitoring network;

Each port supports MDI / MDIX automatic rollover and duplex / rate auto-negotiation;

Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.

Plug and play, simple to use, flexible deployment

Plug and play, no management required;

Dynamic LED indicator provides simple working status prompts and troubleshooting methods;

Desktop-type housing with wall-mounting holes can be flexibly deployed as required.

Technical Specifications

Property Description	Property Value
Network Standard	IEEE802.3、IEEE802.3u、IEEE802.3x
Network media	10BASE-T: Category 3, 4, 5 unShielded twisted pair (≤100 meters) <100BASE-TX: Category 5 and above unShielded twisted pair (≤100 meters)
port	10 10/100M adaptive RJ45 ports
Indicator light	Per port: Link/Act Per device: PWR
performance	Store and forward support 2K MAC address table depth
Overall dimensions (L * W * H)	158x100x25(mm)
Input voltage	External power adapter: 5VDC / 0.6A
Use environment	Operating temperature: 0°C~40°C; Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing; Storage humidity: 5%~90% RH non-condensing
basic skills	Wire-speed forwarding MAC automatic learning and aging IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control
Forwarding rate	10BASE-T: 14880pps 100BASE-TX: 148800pps/port
