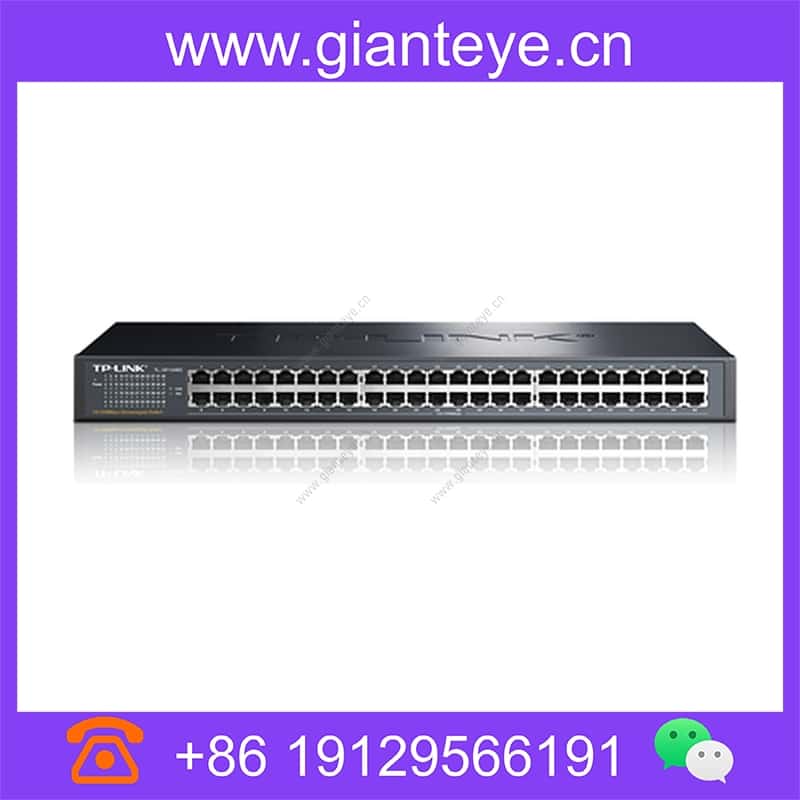

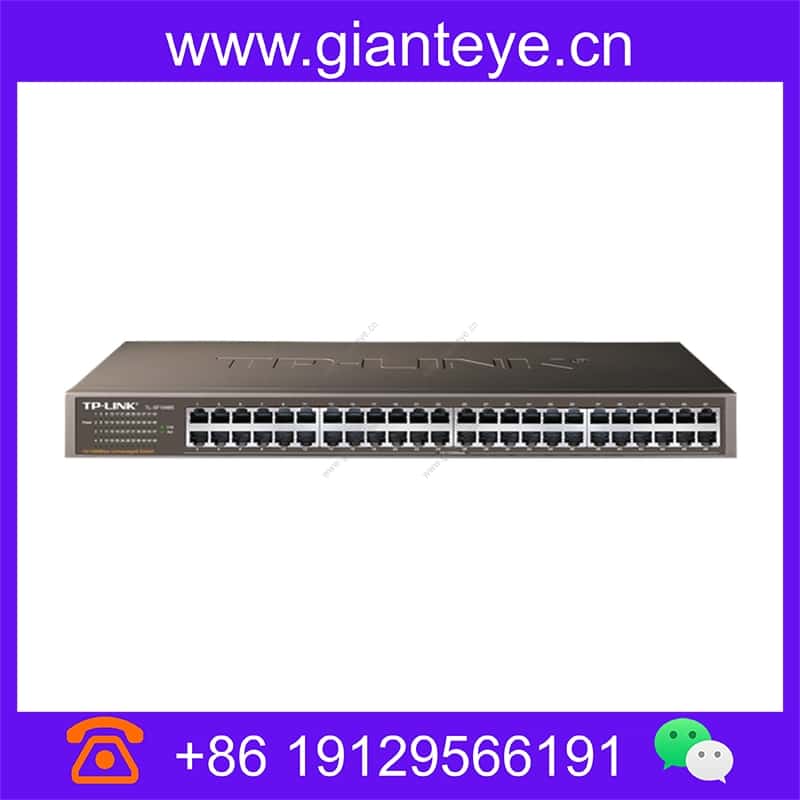

TP-LINK TL-SF1048S 48-port 100M unmanaged switch iron shell layer 2

Brand: TP-LINK

Model: TL-SF1048S

Dimensions: 440mm x 180mm x 44mm

to automatically adjust the signal strength by detecting the length of the network cable and the workload to effectively reduce product power consumption. Simple to use 19-inch standard rack installation, plug and play, no management required; dynamic LED indicators provide simple working status prompts and troubleshooting methods Network Standard IEEE 802.3 、IEEE 802.3u、IEEE 802.3x port 48 10/100Mbps RJ45 ports Indicator light 1 Link/Ack indicator per port 1 Power indicator per device performance Store and Forward Support 16K MAC address table depth Use environment Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90%RH, non-condensing Storage humidity: 5%~90%RH, non-condensing Input power 100-240V~ 50/60Hz Dimensions (L x W x H) 440mm x 180mm x 44mm

Product Features

48 10/100M adaptive RJ45 ports
All ports have wire-speed forwarding capabilities
Support port auto flip (Auto MDI / MDIX) function
Using energy-saving technology to effectively save energy consumption and extend product life
Support MAC address self-learning
Low-power fanless design, eliminating noise interference and improving product stability
Standard rack mount, plug and play, no management required

TL-SF1048S is a Layer 2 100M unmanaged Ethernet switch product developed by TP-LINK. It provides 48 10/100M adaptive RJ45 ports. All ports support wire-speed forwarding and MDI / MDIX automatic rollover functions, and support 19 inches Rack mount.

Port performance

Provide 48 10/100M adaptive RJ45 ports, all ports can realize wire-speed forwarding;

Each port supports MDI / MDIX automatic rollover and duplex / rate auto-negotiation;

Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.

Energy saving and environmental protection

Energy-saving technology is used to automatically adjust the signal strength by detecting the length of the network cable and the workload to effectively reduce product power consumption.

Simple to use

19-inch standard rack installation, plug and play, no management required; dynamic LED indicators provide simple working status prompts and troubleshooting methods

Technical Specifications

Property Description	Property Value
Network Standard	IEEE 802.3 、IEEE 802.3u、IEEE 802.3x
port	48 10/100Mbps RJ45 ports
Indicator light	1 Link/Ack indicator per port 1 Power indicator per device
performance	Store and Forward Support 16K MAC address table depth
Use environment	Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90%RH, non-condensing Storage humidity: 5%~90%RH, non-condensing
Input power	100-240V~ 50/60Hz
Dimensions (L x W x H)	440mm x 180mm x 44mm
