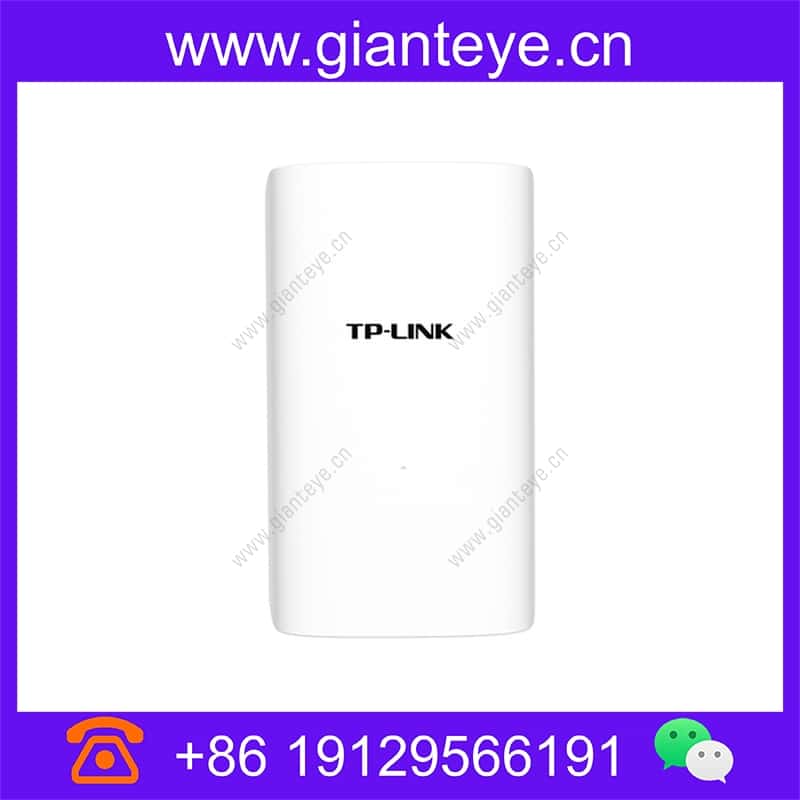

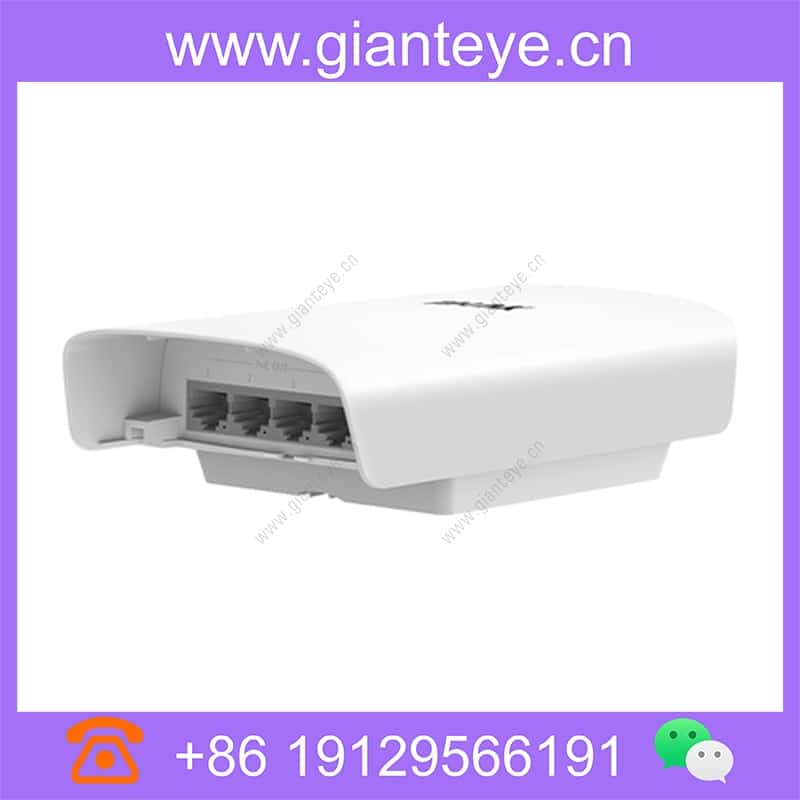

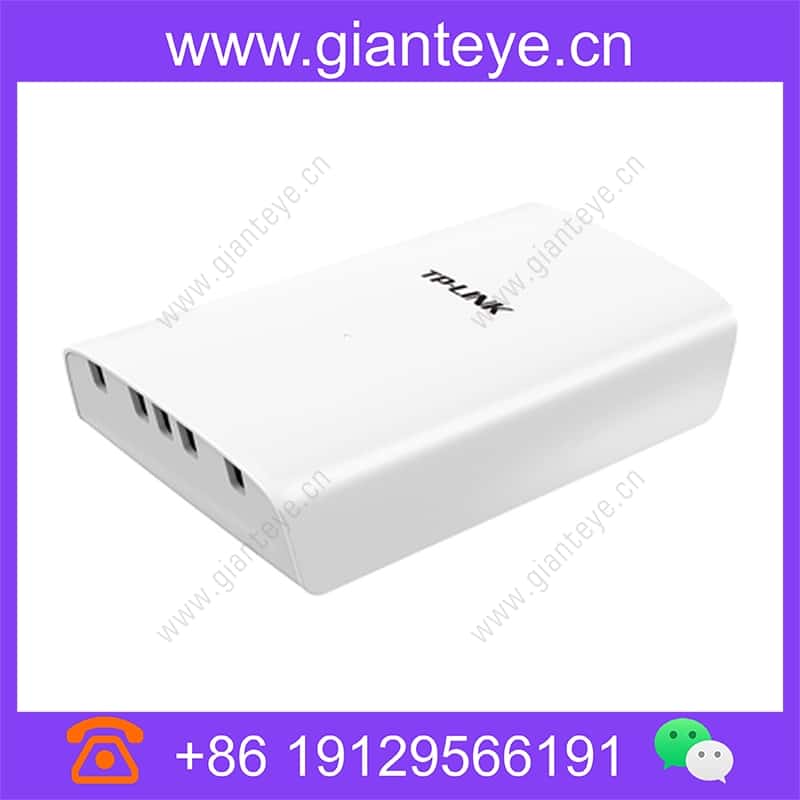

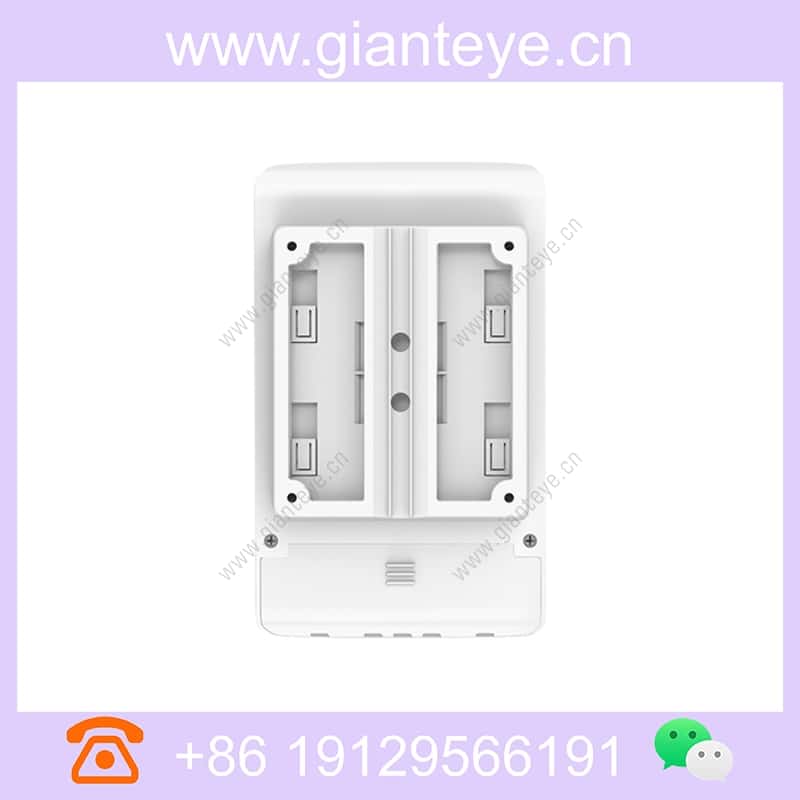

TP-LINK TL-SG2005P-S60 Full Gigabit Cloud Management PoE Power Supply and Receiving Machine

Brand: TP-LINK

Model: TL-SG2005P-S60

port VLAN Support to configure port flow control, duplex, on/off Support port aggregation, port monitoring, port isolation, port traffic statistics Support DHCP Snooping (except 5/8 port models) Support QoS, port egress/ingress speed limit, storm suppression Support cable detection, loopback detection Business cloud function Support quick start Support device information reporting Support alarm push Support equipment remote operation and maintenance Shell size (mm) 440*180*44 294*180*44 171*98*27 100*98*25 170*100*38.5 Input power 220VAC, 50Hz 220VAC, 50Hz 53.5VDC/1.22A 53.5VDC/1.22A PoE power supply 50-57V/1.2A Use environment Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation

Product Features

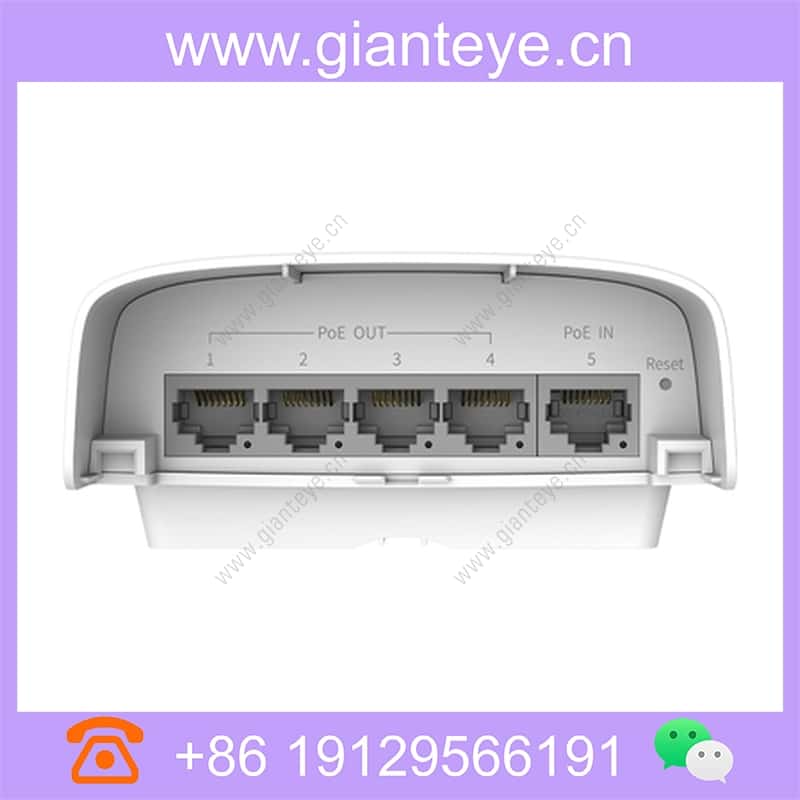

5 10/100/1000Base-T RJ45 ports
1 to 4 thousand megabytes RJ45 port support IEEE 802.3af/at standard PoE power supply
5 port support IEEE 802.3af/at / bt standard PoE power-on
The maximum power supply power of the whole machine is 53W, the maximum POE power supply power of single port is 30W
Support Business Cloud APP and web-side remote management
Support intelligent start, abnormal alarm, fast discharge
Support 802.1Q VLAN, Port VLAN, QoS, bandwidth control, storm suppression
Support port aggregation, port traffic statistics, port monitoring, cable detection, loop protection

Product model	TL-SG2226P	TL-SG2218P	TL-SG2210P	TL-SG2005P	TL-SG2005P-S60
Gigabit RJ45 port	24	16	9	5	5
Gigabit SFP port	2	2	1	0	0
PoE port	24	16	8	4	4PoE power supply ports 1PoE power receiving port
Maximum PoE output power of the whole machine	225W	180W	57W	60W	53W
Maximum power consumption of the whole machine	263W	213W	68W	65W	60W
Maximum PoE output power of the port	30W
PoE power supply standard	IEEE 802.3af/at
MAC address capacity	8K	8K	4K	2K	2K
Mode switch	Support cloud management, VLAN isolation, standard exchange three working modes				no
Network management functions	Support remote management through Shangyun APP and Shangyun network cloud platform (Web terminal) Support local web management Support 802.1Q VLAN, MTU VLAN, port VLAN Support to configure port flow control, duplex, on/off Support port aggregation, port monitoring, port isolation, port traffic statistics Support DHCP Snooping (except 5/8 port models) Support QoS, port egress/ingress speed limit, storm suppression Support cable detection, loopback detection
Business cloud function	Support quick start Support device information reporting Support alarm push Support equipment remote operation and maintenance
Shell size (mm)	44018044	29418044	1719827	1009825	17010038.5
Input power	220VAC, 50Hz	220VAC, 50Hz	53.5VDC/1.22A	53.5VDC/1.22A	PoE power supply 50-57V/1.2A
Use environment	Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation
