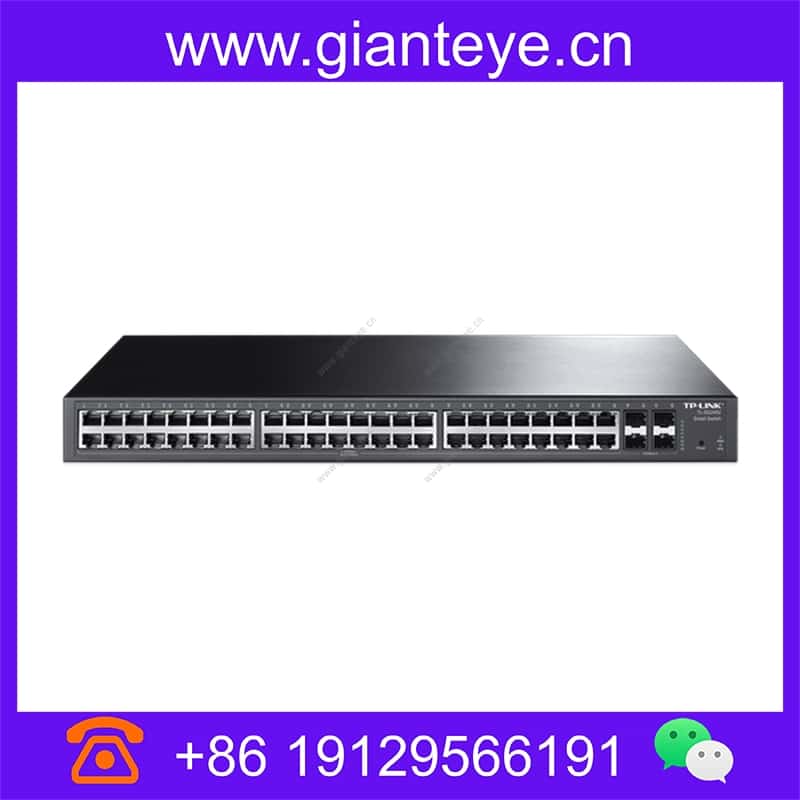

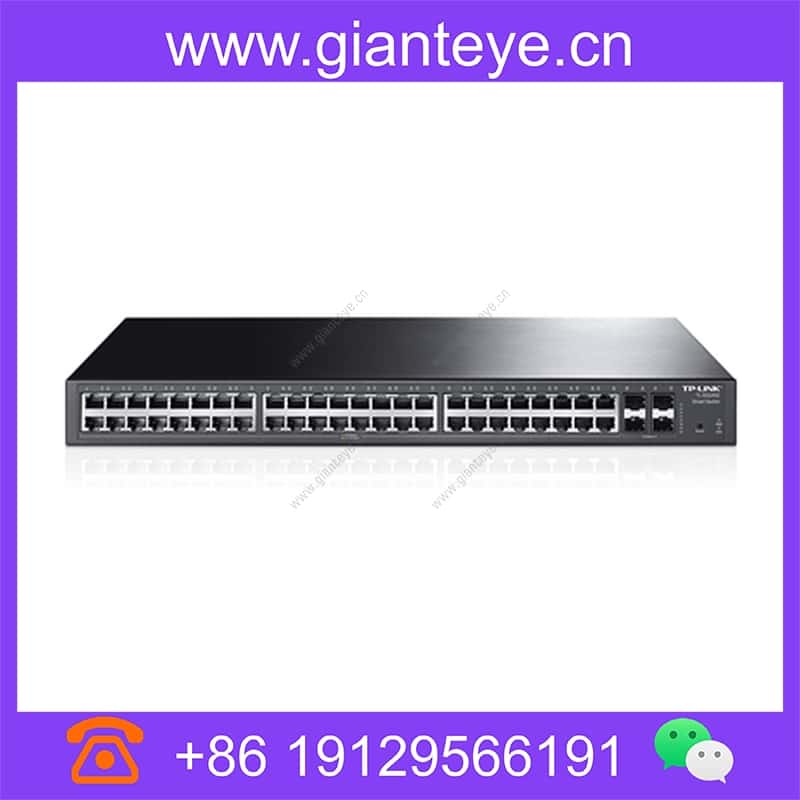

TP-LINK TL-SG2452 48+4 Ports Full Gigabit Simple Network Management Switch

• 48 10/100/1000M adaptive RJ45 ports and 4 Gigabit SFP (mini GBIC) fiber module expansion slots, flexible expansion
• Support port mirroring, port speed limit, port aggregation, port isolation and other rich port management functions
• Support standard IEEE802.1Q Tag VLAN
• Support multiple security strategies such as port security and broadcast storm suppression
• Support multi-service capabilities such as IGMP Snooping and QoS
• Support management based on Web and SNMP, provide maintenance methods such as network diagnosis and system diagnosis

[TL-SG2452 has been discontinued, TL-SG3452 can be used as its replacement model. 】

TL-SG2452 is an all-gigabit simple network management switch product developed by TP-LINK. It provides a rich and reasonable port layout and is convenient and flexible to expand. The switch supports port aggregation, Tag VLAN, IGMP Snooping, QoS and other functions to meet the network environment that requires high performance and intelligent management, and is suitable for small and medium enterprises and campus users to build cost-effective networks.

high performance

Provide a rich and reasonable port layout, support line-speed forwarding of all ports; support port aggregation (trunk) to meet the requirements for high bandwidth and high reliability; support traditional STP/RSTP/MSTP two-layer link protection technology, greatly improving the chain The fault-tolerant and redundant backup capabilities of the road ensure the stable operation of the network, support the spanning tree security function, and prevent the devices in the spanning tree network from suffering various forms of malicious attacks.

Flexible scalability

Provide 4 Gigabit SFP (mini GBIC) fiber optic module expansion slot, and use SFP fiber optic module to easily connect to the fiber optic backbone network, greatly expand the scope of equipment and save user investment.

safety

Supports standard IEEE 802.1Q Tag VLAN to meet the needs of dividing and managing network resources, enhancing network security and adapting to multi-service applications. Support port security function, which can limit the number of MAC addresses learned by the port and solve the problem of illegal access. Support broadcast storm suppression to improve network performance.

Multi-service capabilities

Support port-based, IEEE 802.1p and DSCP priority; support SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR queue scheduling algorithm, each port supports 4 output queues, can report with different priorities The text is put into the output queue of the port to meet the requirements of different services on the basic network, and supports two-way speed limit on the port; supports IGMP V1/V2/V3, and through IGMP Snooping technology, it can solve the multicast application problems, such as IPTV, video Meetings and so on.

Flexible management and easy maintenance

Supports system management and upgrades through the full Chinese Web interface, which is convenient and intuitive; supports SNMP, which can monitor network performance, detect and analyze network errors, etc.

Supports functions such as VCT (cable detection), loopback detection, Ping, Tracert, etc., which can quickly detect the connection of network equipment and locate network failure points.

Supports identity filtering and detection technology, provides multi-level user management and management limit functions, and enhances configuration security.
