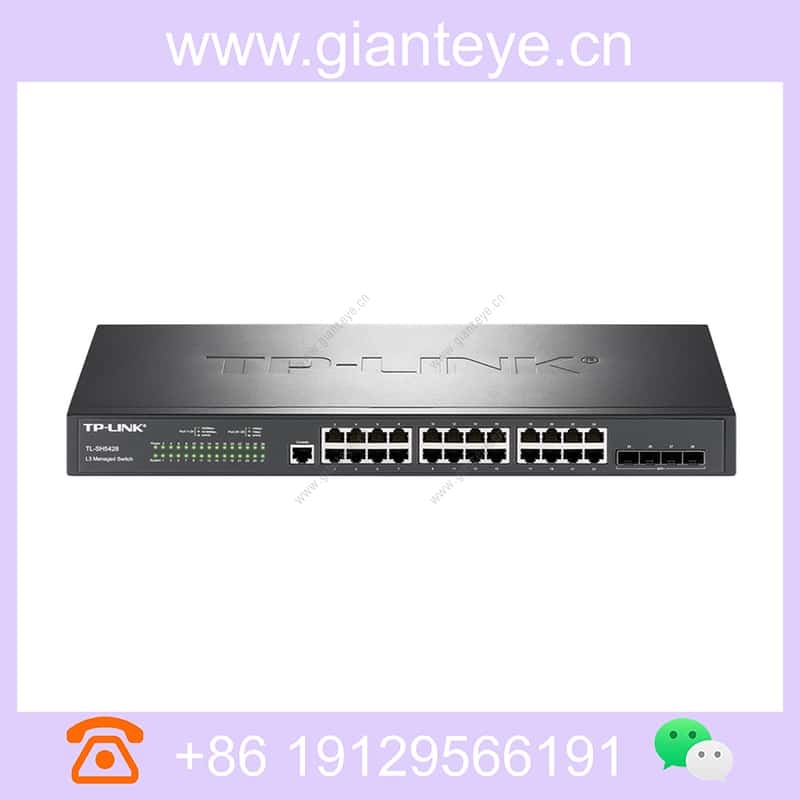

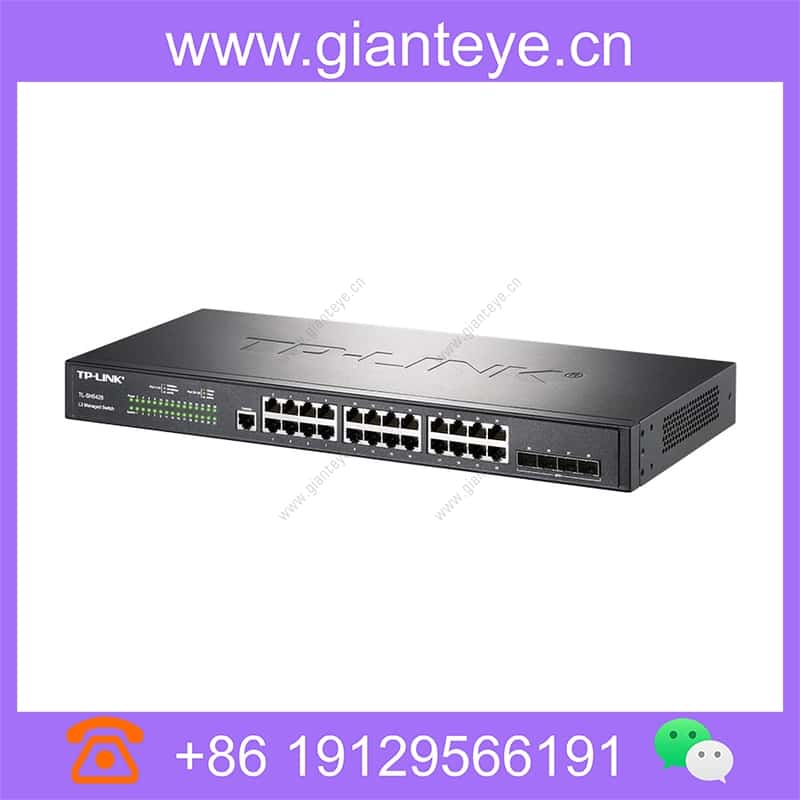

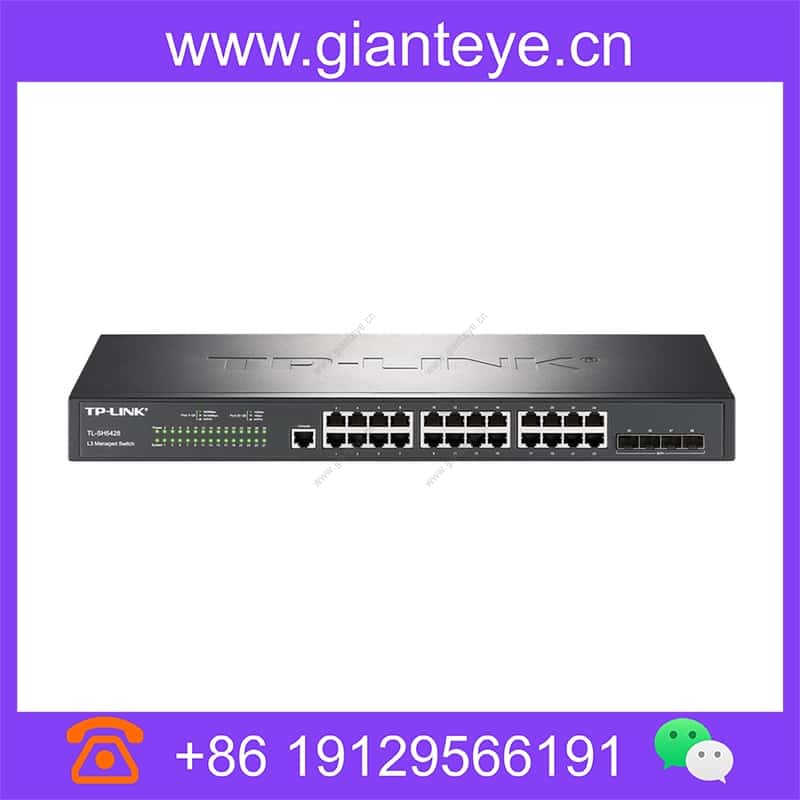

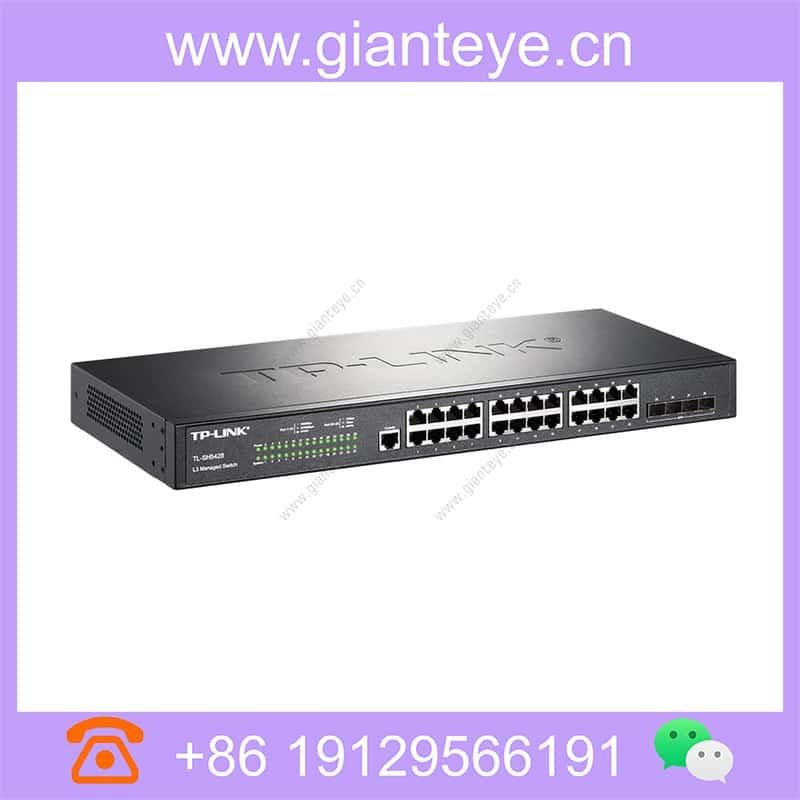

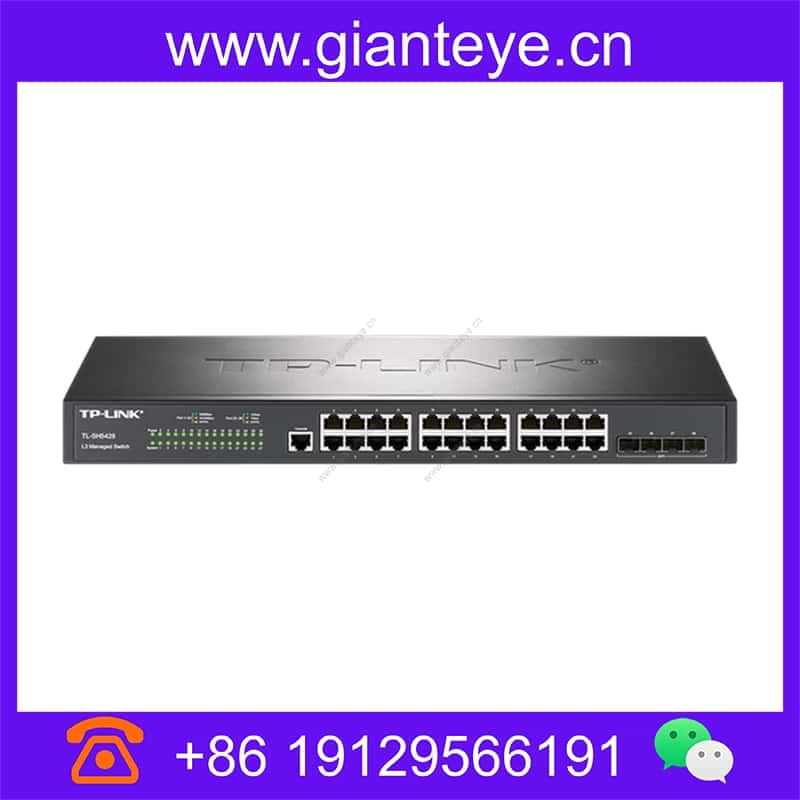

| Product model | TL-SH6428 |
|---|
| Exchange capacity | 336Gbps
|
|---|
| Packet forwarding rate | 120Mpps
|
|---|
| Gigabit RJ45 port | 24 |
|---|
| 10G SFP+ port | 4 |
|---|
| RJ45 Console port | 1 |
|---|
| Stack | Support (6 stacking units) |
|---|
| MAC address capacity | 16K |
|---|
| TP-LINK commercial cloud platform | stand by |
|---|
| routing | Support OSPF Dynamic Routing Support RIP V1 / V2 Dynamic Routing Support Static Routing Support ARP Agent |
|---|
| DHCP | Support DHCP server support DHCP relay support DHCP snooping support Option138, option82, option60 |
|---|
| VLAN | support 4K VLAN support 802.1Q VLAN, Mac VLAN, protocol VLAN, Private VLAN support guest VLAN, Voice VLAN support VLAN VPN (Qinq) Support GVRP protocol support 1: 1 and n: 1 VLAN mapping function |
|---|
| MAC address table | Follow IEEE 802.1D Standard Support MAC address automatic learning and aging support static, dynamic, filter address table |
|---|
| Safety features | Based on user hierarchical management and password protection support port number, IP address, MAC address restriction user access support HTTPS, SSL V3, TLS V1, SSH V1 / V2 Support IP-MAC-Port-VLAN quad-binding support ARP protection, IP source protection, DOS protection support DHCP Snooping, DHCP attack protection support 802.1x authentication, AAA support port security, port isolation support CPU protection |
|---|
| Access Control (ACL) | Supports L2 (Layer 2) ~ L4 (Layer 4) Pack filter function support port image, port reDirection, flow limit, QoS heavy mark |
|---|
| Quality of Service (QoS) | Supports 8 port queues support port priority, 802.1p priority, DSCP priority support SP, WRR, SP + WRR, EQU priority scheduling algorithm < / li> |
|---|
| Spanning tree | Supports STP (IEEE 802.1D), RSTP (IEEE 802.1W) and MSTP (IEEE 802.1s) protocol support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering < / li> |
|---|
| Multicast | Supports PIM-DM, PIM-SM, Static Multicast Routing Support IGMP V1/V2/V3 Snooping Support fast leaving mechanism support Multicast VLAN support multicast filtering, packet statistics, unknown multicast discard |
|---|
| Management and maintenance | Support TP-LINK Commercial Cloud Platform Support Web Network Management (HTTP, HTTPS, SSL V3, TLS V1) support CLI (Telnet, SSH V1 / V2, local serial port Support SNMP V1/V2/V3, compatible public MIBS and TP-LINK private mibs support LLDP, RMON support CPU monitoring, memory monitoring / li> Support system log, classification warning support ping, tracert detection, cable detection |
|---|
| Shell size (mm) | 440x220x44 |
|---|
| Input power | 100~240VAC, 50/60Hz |
|---|
| Use environment | operating temperature: 0°C ~ 40°C storage temperature: -40°C ~ 70°C Working humidity: 10% ~ 90% RH does not condense Storage humidity: 5% ~ 90% RH does not condense |
|---|
