AXIS 90 W Midspan AC/DC 02209-001 02209-021

Brand: AXIS
Model: AXIS-90-W-MIDSPAN-ACDC

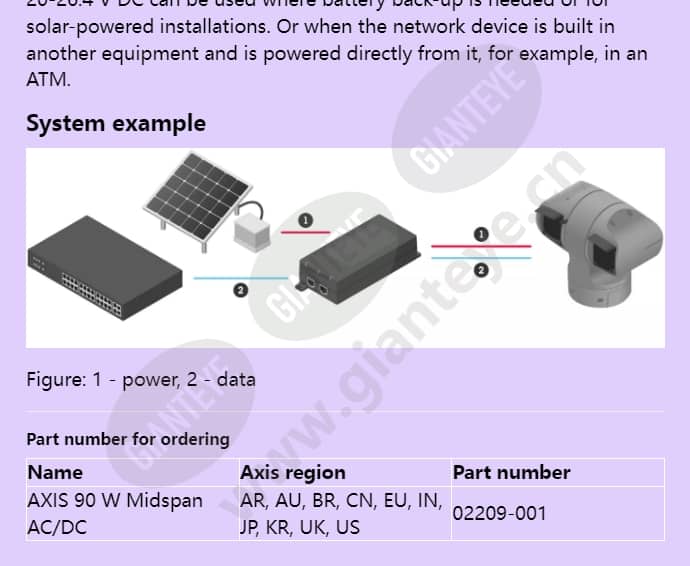

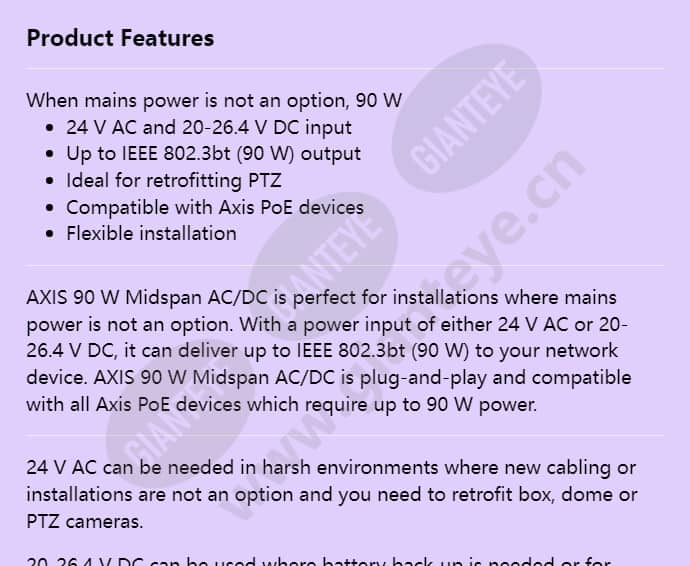

where mains power is not an option. With a power input of either 24 V AC or 20-26.4 V DC, it can deliver up to IEEE 802.3bt (90 W) to your network device. AXIS 90 W Midspan AC/DC is plug-and-play and compatible with all Axis PoE devices which require up to 90 W power. 24 V AC can be needed in harsh environments where new cabling or installations are not an option and you need to retrofit box, dome or PTZ cameras. 20-26.4 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it, for example, in an ATM. System example Figure: 1 - power, 2 - data Part number for ordering Name Axis region Part number AXIS 90 W Midspan AC/DC AR, AU, BR, CN, EU, IN, JP, KR, UK, US 02209-001
