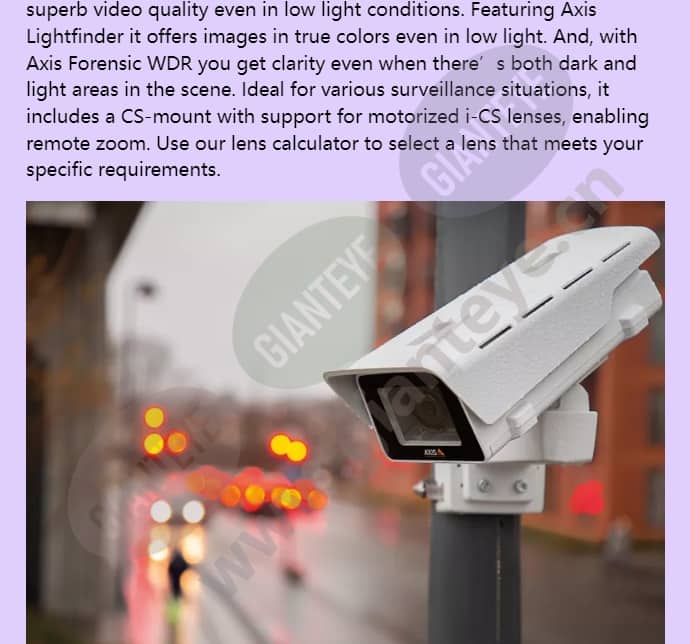

AXIS M1135-E Mk II Box Camera 02622-001 02485-001

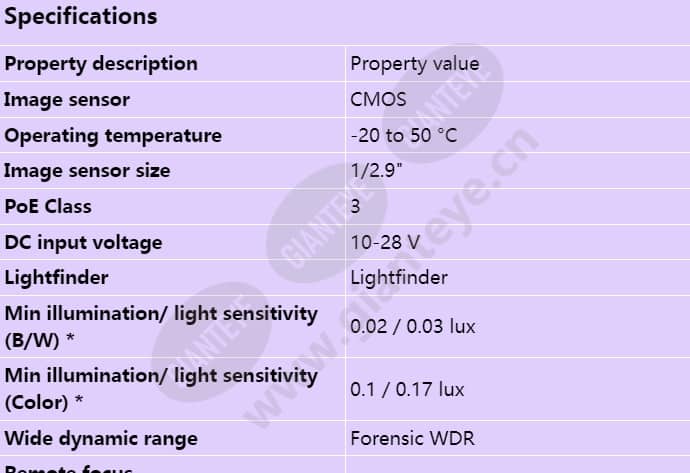

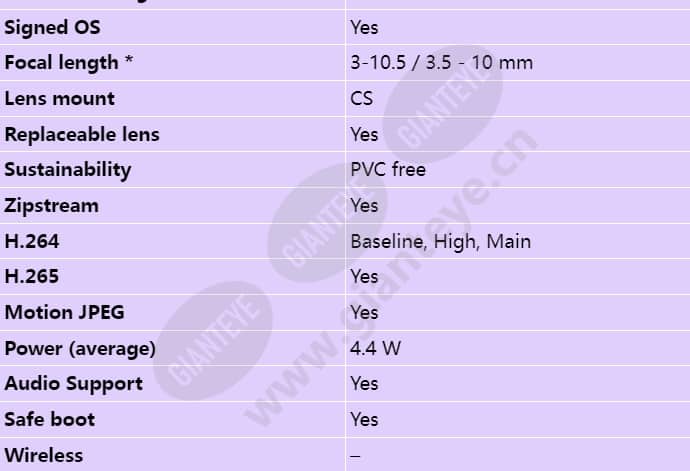

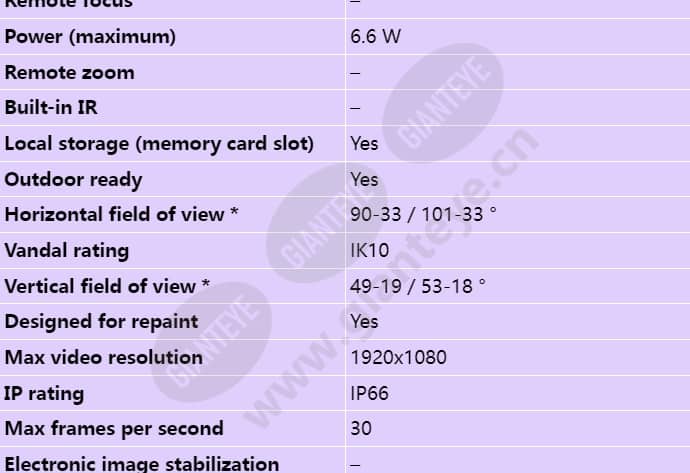

Lightfinder Lightfinder Min illumination/ light sensitivity (Color) * 0.1 / 0.17 lux Min illumination/ light sensitivity (B/W) * 0.02 / 0.03 lux Image sensor CMOS Image sensor size 1/2.9" Wide dynamic range Forensic WDR Max video resolution 1920x1080 Max frames per second 30 Focal length * 3-10.5 / 3.5 - 10 mm Horizontal field of view * 90-33 / 101-33 ° Vertical field of view * 49-19 / 53-18 ° Lens mount CS Replaceable lens Yes Zipstream Yes H.264 Baseline, High, Main H.265 Yes Motion JPEG Yes Audio Support Yes PoE Class 3 Signed OS Yes Secure boot Yes Local storage (memory card slot) Yes Operating temperature -20 to 50 °C Outdoor Ready Yes Vandal rating IK10 IP rating IP66 Designed for repaint Yes Sustainability PVC free Power (max) 6.6 W Power (average) 4.4 W DC input voltage 10-28 V
