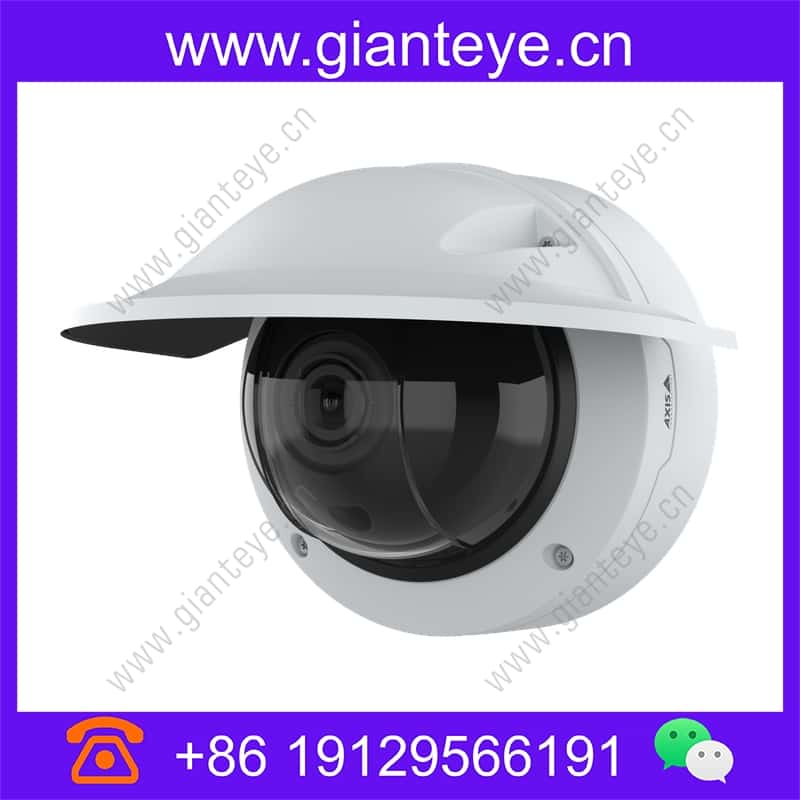

AXIS Q3548-LVE Dome Camera 02973-001
Wide dynamic range Forensic WDR Min illumination/ light sensitivity (Color) 0.04 lux Min illumination/ light sensitivity (B/W) 0 lux Max video resolution 3840x2160 Max frames per second 50/60 Day and Night functionality Yes Electronic image stabilization Yes Focal length 6.3 - 13 mm Horizontal field of view 104.0 - 48.9 ° Vertical field of view 56.7 - 27.5 ° Zipstream Yes H.264 Baseline, High, Main H.265 Yes Motion JPEG Yes Audio Support Yes PoE Class 4 Signed OS Yes Secure boot Yes Secure keystore Secure Element (CC EAL6+, FIPS 140-3 Level 3) Axis Edge Vault Yes Remote focus Yes Remote zoom Yes Built-in IR Yes Local storage (memory card slot) Yes Operating temperature -50 to 55 °C Outdoor Ready Yes Vandal rating IK10 IP rating IP66, IP6K9K Designed for repaint Yes Sustainability PVC free
Product Features
Advanced 8 MP AI-powered dome
Outstanding image quality in 8 MP
Next-generation AI-powered analytics
IR-shielded dome to prevent reflections
Lightfinder 2.0 and Forensic WDR
Built-in cybersecurity with Axis Edge Vault
Built on ARTPEC-9, this robust 4K AI-powered camera offers accelerated performance to run impressive analytics applications on the edge. And Axis Edge Vault provides a hardware-based cybersecurity platform that safeguards the device.
Outstanding image quality
AXIS Q3548-LVE offers outstanding image quality and forensic details in 8 MP resolution, even in harsh weather and environments. It features OptimizedIR, and an innovative IR-shielded dome prevents IR reflections from rain and snow ensuring clear, sharp images every time. Lightfinder 2.0 and Forensic WDR deliver true colors and great detail in challenging light or near darkness. Furthermore, electronic image stabilization keeps the image steady when the camera is subject to vibrations.

ARTPEC-9 for unmatched performance
ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What’s more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely

Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC-9, this application offers enhanced performance with greater accuracy. Additionally, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected.
.jpg.jpg)
Robust with strong security
Made from high-grade aluminum, this robust, IK10-, IP66-, IP6K9K- and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It has an operating temperature range from -55°C to 55 °C (-122 to 131°F). And a built-in intrusion switch can detect tampering. It can be powered with DC and PoE to ensure power redundancy. What’s more, Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations.
Part number for ordering
Name | Axis region | Part number |
---|---|---|
AXIS Q3548-LVE | AR, AU, BR, CN, EU, JP, KR, UK, US | 02973-001 |
Technical Specifications
Property Description | Property Value |
---|---|
Property description | Property value |
Image sensor | CMOS |
Image sensor size | 1/1.2" |
Lightfinder | Lightfinder 2.0 |
Wide dynamic range | Forensic WDR |
Min illumination/ light sensitivity (Color) | 0.04 lux |
Min illumination/ light sensitivity (B/W) | 0 lux |
Max video resolution | 3840x2160 |
Max frames per second | 50/60 |
Day and Night functionality | Yes |
Electronic image stabilization | Yes |
Focal length | 6.3 - 13 mm |
Horizontal field of view | 104.0 - 48.9 ° |
Vertical field of view | 56.7 - 27.5 ° |
Remote PTRZ | – |
Zipstream | Yes |
H.264 | Baseline, High, Main |
H.265 | Yes |
Motion JPEG | Yes |
Audio Support | Yes |
Built-in microphone | – |
PoE Class | 4 |
Signed OS | Yes |
Secure boot | Yes |
Secure keystore | Secure Element (CC EAL6+, FIPS 140-3 Level 3) |
Axis Edge Vault | Yes |
Remote focus | Yes |
Remote zoom | Yes |
Built-in IR | Yes |
Local storage (memory card slot) | Yes |
Operating temperature | -50 to 55 °C |
Outdoor Ready | Yes |
Vandal rating | IK10 |
IP rating | IP66, IP6K9K |
Designed for repaint | Yes |
Sustainability | PVC free |
