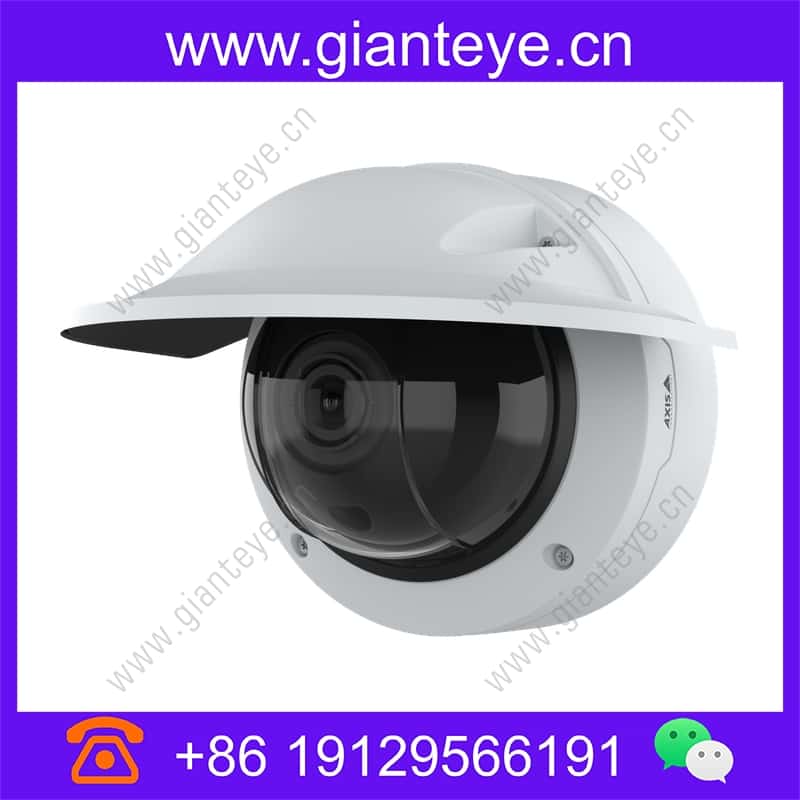

AXIS Q3558-LVE Dome Camera 03206-001

Brand: AXIS
Model: AXIS-Q3558-LVE

Lightfinder 2.0 Wide dynamic range Forensic WDR Min illumination/ light sensitivity (Color) 0.04 lux Min illumination/ light sensitivity (B/W) 0 lux Max video resolution 3840x2160 Max frames per second 50/60 Day and Night functionality Yes Electronic image stabilization Yes Focal length 6.3 - 13 mm Horizontal field of view 104.0 - 48.9 ° Vertical field of view 56.7 - 27.5 ° Zipstream Yes H.264 Baseline, High, Main H.265 Yes Motion JPEG Yes PoE Class 4 Signed OS Yes Secure boot Yes Secure keystore Secure Element (CC EAL6+, FIPS 140-3 Level 3) Axis Edge Vault Yes Remote focus Yes Remote zoom Yes Built-in IR Yes Local storage (memory card slot) Yes Operating temperature -50 to 55 °C Outdoor Ready Yes Vandal rating IK10 IP rating IP66, IP6K9K Designed for repaint Yes Sustainability PVC free

Product Features


Advanced 8 MP AI-powered dome with audio analytics

  • Outstanding image quality in 8 MP

  • Next-generation AI-powered analytics

  • R-shielded dome to prevent reflections

  • AXIS Audio Analytics preinstalled

  • Built-in cybersecurity with Axis Edge Vault


Built on ARTPEC-9, this robust 4K AI-powered camera offers accelerated performance to run impressive analytics applications on the edge. AXIS Audio Analytics notifies you whenever something relevant happens, even when there's no visual indication.


Outstanding image quality

AXIS Q3558-LVE offers outstanding image quality and forensic details in 8 MP resolution, even in harsh weather and environments. It features OptimizedIR, and an innovative IR-shielded dome prevents IR reflections from rain and snow ensuring clear, sharp images every time. Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in near darkness or challenging light. Furthermore, electronic image stabilization keeps the image steady when the camera is subject to vibrations.


ARTPEC-9 for unmatched performance

ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What’s more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.


Powerful video and audio analytics

Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC-9, this application offers enhanced performance with greater accuracy. With an acoustic sensor and support for AXIS Audio Analytics, you be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts, as well as changes in sound level. Additionally, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected.


Robust with strong security

Made from high-grade aluminum, this robust, IK10-, IP66-, IP6K9K- and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It has an operating temperature range from -55°C to 55 °C (-122 to 131°F). And a built-in intrusion switch can detect tampering. It can be powered with DC and PoE to ensure power redundancy. What’s more, Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations.


Part number for ordering

NameAxis regionPart number
AXIS Q3558-LVE AR, AU, BR, CN, EU, JP, KR, UK, US 03206-001

Technical Specifications

Property DescriptionProperty Value
Property descriptionProperty value
Image sensorCMOS
Image sensor size1/1.2"
LightfinderLightfinder 2.0
Wide dynamic rangeForensic WDR
Min illumination/ light sensitivity (Color)0.04 lux
Min illumination/ light sensitivity (B/W)0 lux
Max video resolution3840x2160
Max frames per second50/60
Day and Night functionalityYes
Electronic image stabilizationYes
Focal length6.3 - 13 mm
Horizontal field of view104.0 - 48.9 °
Vertical field of view56.7 - 27.5 °
Remote PTRZ
ZipstreamYes
H.264Baseline, High, Main
H.265Yes
Motion JPEGYes
Audio Support
Built-in microphone
PoE Class4
Signed OSYes
Secure bootYes
Secure keystoreSecure Element (CC EAL6+, FIPS 140-3 Level 3)
Axis Edge VaultYes
Remote focusYes
Remote zoomYes
Built-in IRYes
Local storage (memory card slot)Yes
Operating temperature-50 to 55 °C
Outdoor ReadyYes
Vandal ratingIK10
IP ratingIP66, IP6K9K
Designed for repaintYes
SustainabilityPVC free
