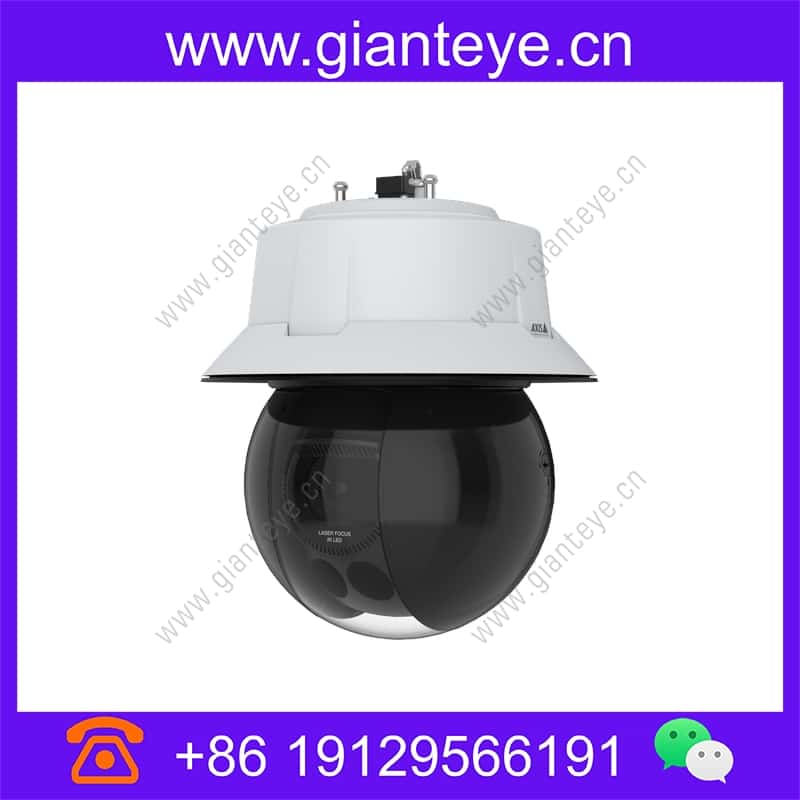

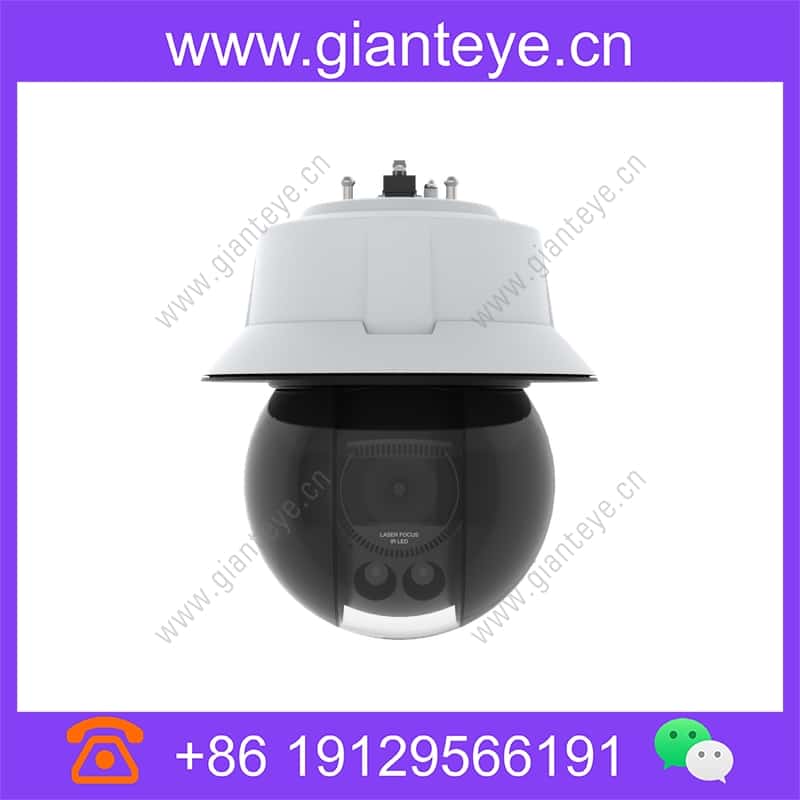

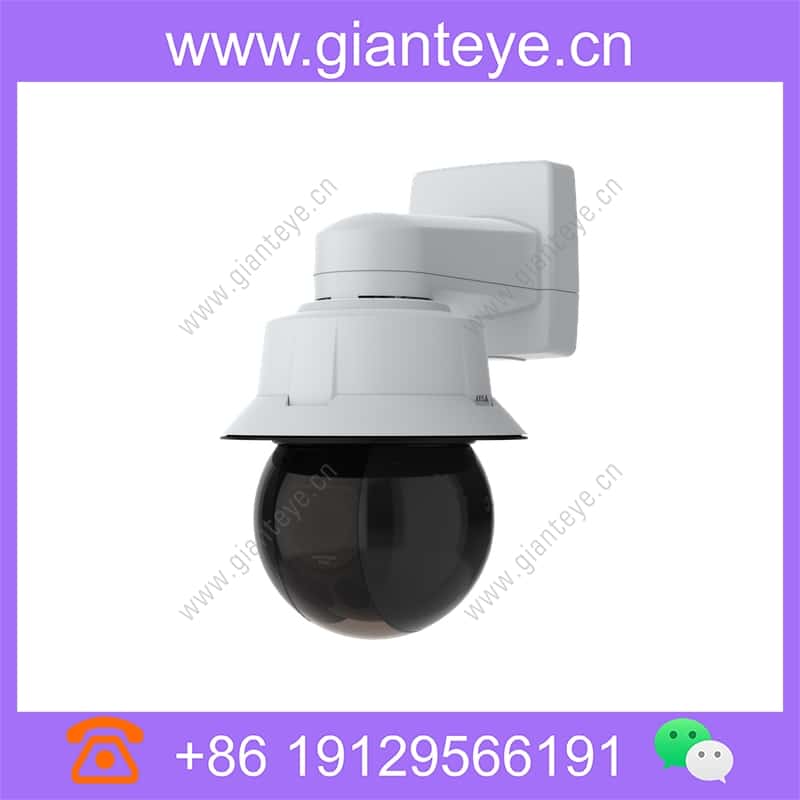

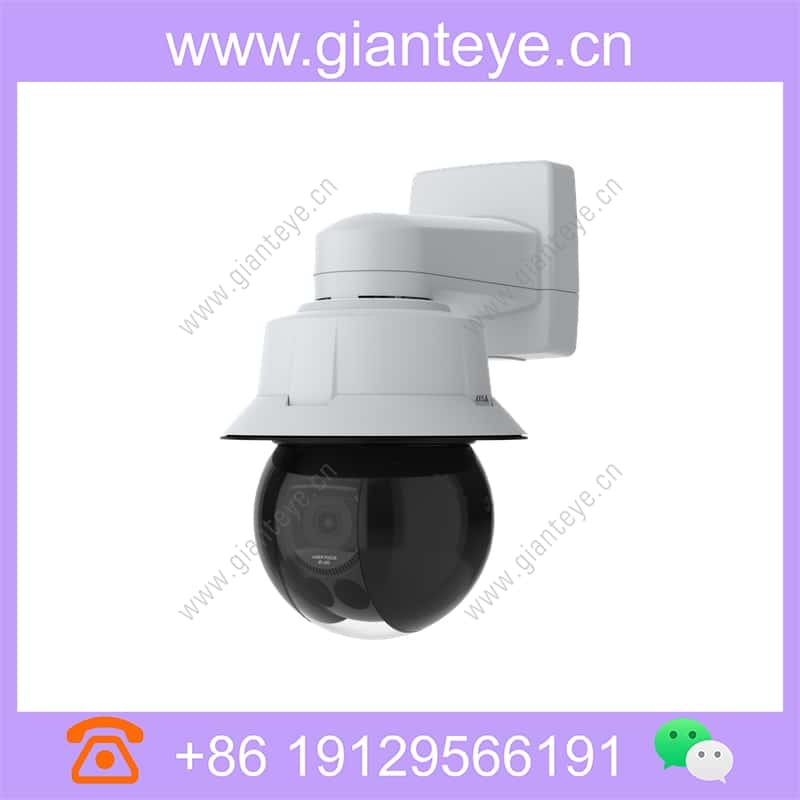

AXIS Q6358-LE PTZ Camera 02977-301 02977-009 02977-004

Brand: AXIS
Model: AXIS-Q6358-LE

1/1.8" Wide dynamic range Forensic WDR Signed OS Yes Secure boot Yes Built-in IR Yes OptimizedIR Yes Local storage (memory card slot) Yes Operating temperature -50 to 55 °C Outdoor Ready Yes Vandal rating IK10 IP rating IP66,IP67 Designed for repaint Yes Autotracking version Autotracking 2 Orientation aid orientation aid PTZ Max video resolution 3840x2160 Max frames per second 50/60 Day and Night functionality Yes Electronic image stabilization Yes Focal length 6.91 - 214.64 mm Horizontal field of view 58.5 - 2.3 ° Vertical field of view 34.9 - 1.4 ° Optical zoom 31 Pan range 360 endless Tilt range +20 to -90 Guard tour preset position tour Digital zoom 12 Zipstream Yes H.264 Baseline, High, Main H.265 Yes AV1 On Motion JPEG Yes Audio Support * Yes / - Active tampering Yes PoE Class 6

Product Features


4K UHD, AI-powered PTZ for extreme low light

  • 1/2" sensor with 31x optical zoom

  • Forensic WDR, Lightfinder, and OptimizedIR

  • Next-generation AI-powered analytics

  • Axis Zipstream with AV1, H.264, H.265

  • Built-in cybersecurity with Axis Edge Vault


Built on ARTPEC-9, this high-performance, AI-powered PTZ camera delivers unmatched image quality with great detail and high performance in all light conditions. Axis Edge Vault provides a hardware-based cybersecurity platform that safeguards the device.


Super surveillance

AXIS Q6358-LE offers outstanding 4K UHD and features an extremely light-sensitive ½” inch sensor to deliver clear, bright images and better handling of shadows. Lightfinder and Forensic WDR provide details even in challenging light conditions. Plus, OptimizedIR allows for surveillance in total darkness up to 300 m without the need for extra lighting. With 31x optical zoom and quick zoom, you can easily follow fast-moving objects. Plus, laser focus ensures precise focus– every time. Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, this PTZ camera offers support for audio with a midspan and four I/O ports.


Secure inside and out

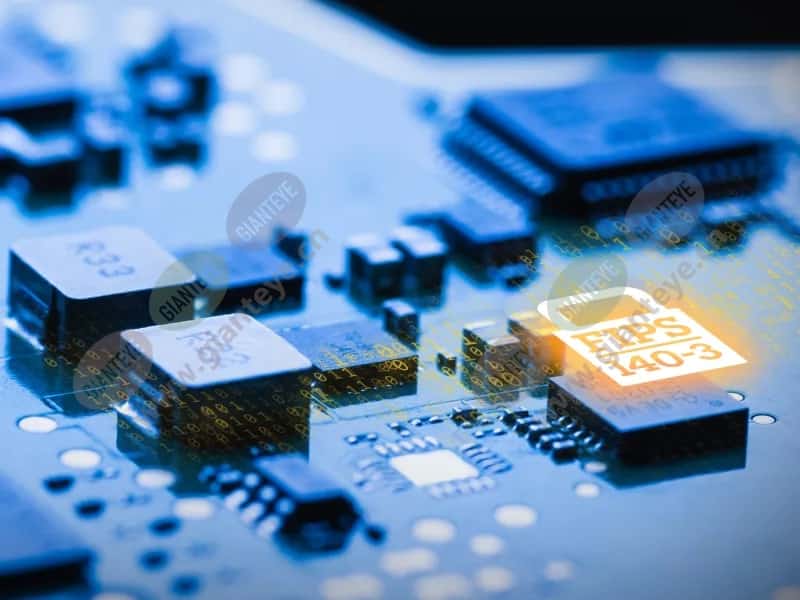

AXIS Q6358-LE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations. This IP66-, IK10-, and NEMA 4x-rated device is impact- and weather-resistant. And its defog functionality ensures clear images despite fog or smog. Thanks to shock detection, you can be informed if there's any attempts to interfere with the camera. Furthermore, with support for fiber connection and PoE, it allows for cost-effective installation and long-distance connections.


ARTPEC-9 for unmatched performance

ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What’s more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.


AI-powered with advanced features

Featuring a deep learning processing unit (DLPU), this AI-based camera lets you run advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. With AXIS Image Health Analytics preinstalled, you’ll be notified if your image is blocked, degraded, under-exposed, or redirected. It also offers autotracking 2 with click-and-track functionality for active object tracking. And an orientation aid enables dynamic text overlays with street names and a compass symbol for quick orientation. Additionally, where privacy must be kept, chameleon masking makes it possible to automatically change the color of the masking depending on the background color of the image.


Part number for ordering

NameAxis regionPart number
AXIS Q6358-LE No Midspan AR, AU, BR, CN, EU, JP, KR, UK, US 02977-301
AXIS Q6358-LE KR 02977-007
AXIS Q6358-LE AU 02977-006
AXIS Q6358-LE AR 02977-008
AXIS Q6358-LE UK 02977-003
AXIS Q6358-LE EU 02977-002
AXIS Q6358-LE JP 02977-005
AXIS Q6358-LE US 02977-004
AXIS Q6358-LE CN 02977-009

Technical Specifications

Property DescriptionProperty Value
Property descriptionProperty value
LightfinderLightfinder 2.0
Min illumination/ light sensitivity (Color)0.11 lux
Min illumination/ light sensitivity (B/W)0.001 lux
Image sensorCMOS
Image sensor size1/1.8"
Wide dynamic rangeForensic WDR
Signed OSYes
Secure bootYes
TPM
Built-in IRYes
OptimizedIRYes
Local storage (memory card slot)Yes
Operating temperature-50 to 55 °C
Outdoor ReadyYes
Vandal ratingIK10
IP ratingIP66,IP67
Designed for repaintYes
Autotracking versionAutotracking 2
Orientation aidorientation aid PTZ
Max video resolution3840x2160
Max frames per second50/60
Day and Night functionalityYes
Electronic image stabilizationYes
Focal length6.91 - 214.64 mm
Horizontal field of view58.5 - 2.3 °
Vertical field of view34.9 - 1.4 °
Optical zoom31
Pan range360 endless
Tilt range+20 to -90
Guard tourpreset position tour
Digital zoom12
ZipstreamYes
H.264Baseline, High, Main
H.265Yes
AV1On
Motion JPEGYes
Audio Support *Yes / -
Built-in microphone-
Audio detection
Active tamperingYes
Alarm inputs/outputs
PoE Class6
