AXIS Q7404 Video Encoder 4 Channels 0291-009

Brand: AXIS
Model: AXIS-Q7404
Weight: 796g
Dimensions: 151mm x 184mm x 35mm

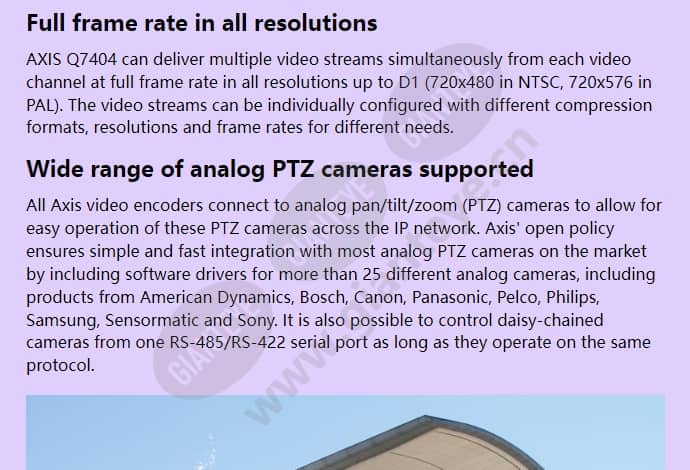

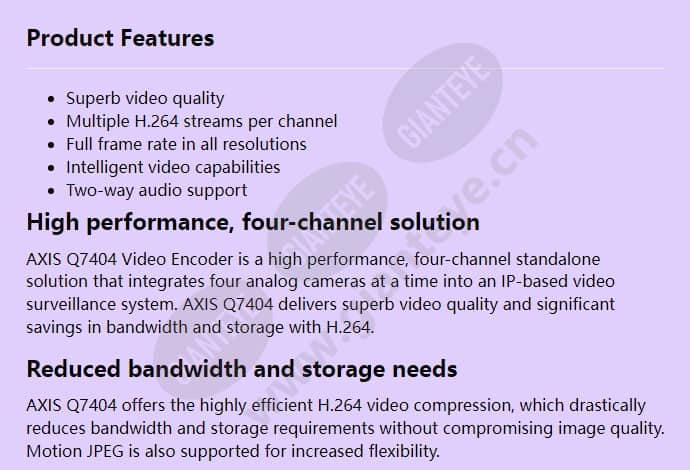

Superb video quality Multiple H.264 streams per channel Full frame rate in all resolutions Intelligent video capabilities Two-way audio support High performance, four-channel solution AXIS Q7404 Video Encoder is a high performance, four-channel standalone solution that integrates four analog cameras at a time into an IP-based video surveillance system. AXIS Q7404 delivers superb video quality and significant savings in bandwidth and storage with H.264. Reduced bandwidth and storage needs AXIS Q7404 offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility. Full frame rate in all resolutions AXIS Q7404 can deliver multiple video streams simultaneously from each video channel at full frame rate in all resolutions up to D1 (720x480 in NTSC, 720x576 in PAL). The video streams can be individually configured with different compression formats, resolutions and frame rates for different needs. Wide range of analog PTZ cameras supported All Axis video encoders connect to analog pan/tilt/zoom (PTZ) cameras to allow for easy operation of these PTZ cameras across the IP network. Axis' open policy ensures simple and fast integration with most analog PTZ cameras on the market by including software drivers for more than 25 different analog cameras, including products from American Dynamics, Bosch, Canon, Panasonic, Pelco, Philips, Samsung, Sensormatic and Sony. It is also possible to control daisy-chained cameras from one RS-485/RS-422 serial port as long as they operate on the same protocol. McCormick Place Chicago’s McCormick Place sees greater surveillance control over tradeshows and events with Axis video encoders
