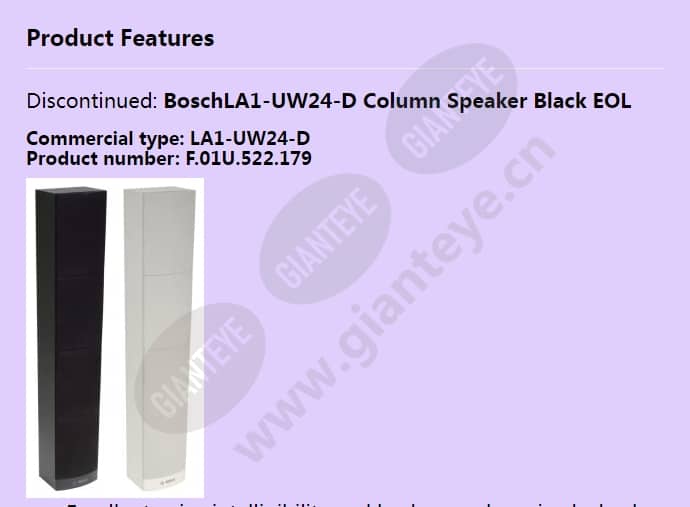

Bosch LA1-UW24-D Column Loudspeaker Black F.01U.522.179

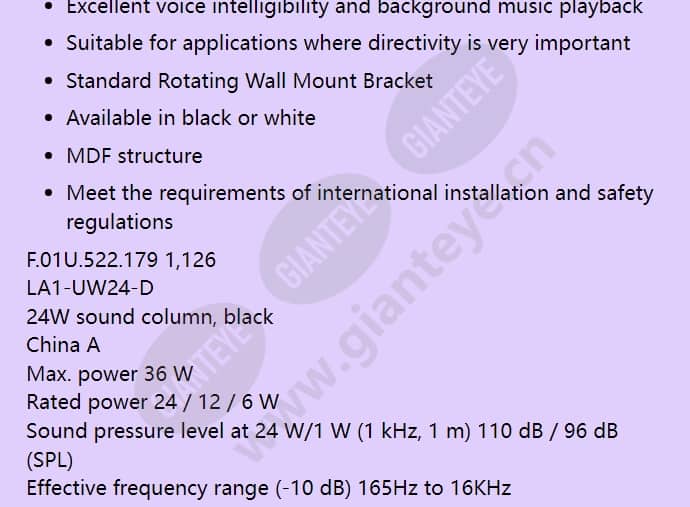

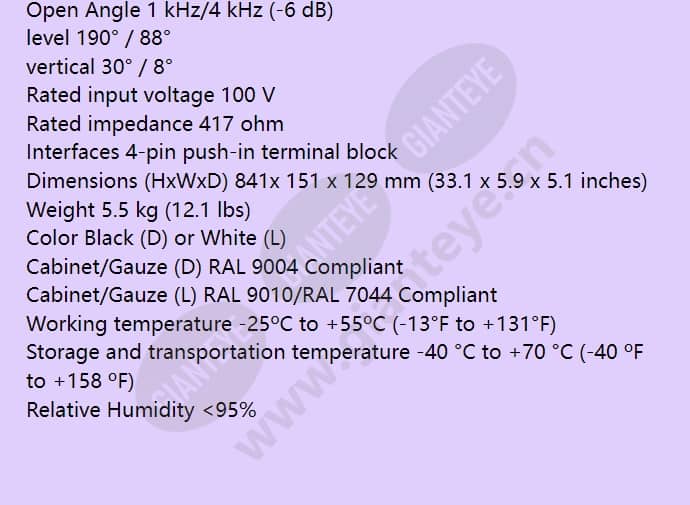

the requirements of international installation and safety regulations F.01U.522.179 1,126 LA1-UW24-D 24W sound column, black China A Max. power 36 W Rated power 24 / 12 / 6 W Sound pressure level at 24 W/1 W (1 kHz, 1 m) 110 dB / 96 dB (SPL) Effective frequency range (-10 dB) 165Hz to 16KHz Open Angle 1 kHz/4 kHz (-6 dB) level 190° / 88° vertical 30° / 8° Rated input voltage 100 V Rated impedance 417 ohm Interfaces 4-pin push-in terminal block Dimensions (HxWxD) 841x 151 x 129 mm (33.1 x 5.9 x 5.1 inches) Weight 5.5 kg (12.1 lbs) Color Black (D) or White (L) Cabinet/Gauze (D) RAL 9004 Compliant Cabinet/Gauze (L) RAL 9010/RAL 7044 Compliant Working temperature -25ºC to +55ºC (-13°F to +131°F) Storage and transportation temperature -40 °C to +70 °C (-40 ºF to +158 ºF) Relative Humidity <95%
