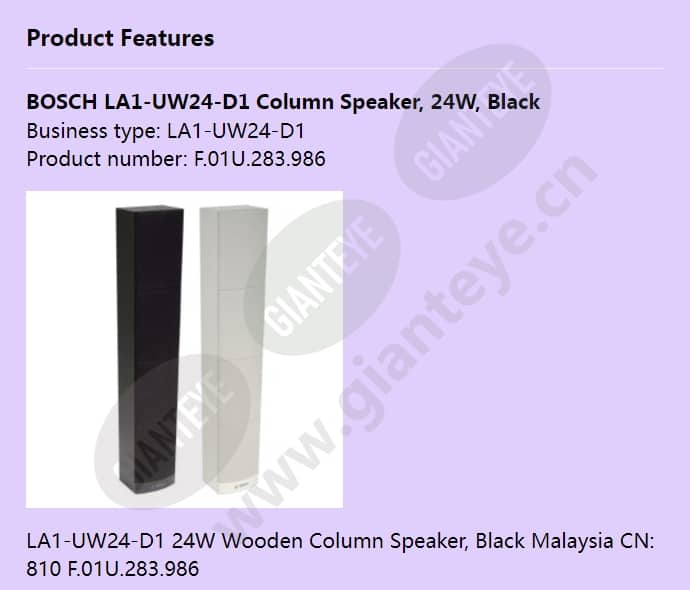

Bosch LA1-UW24-D1 Column Loudspeaker 24W Black F.01U.283.986

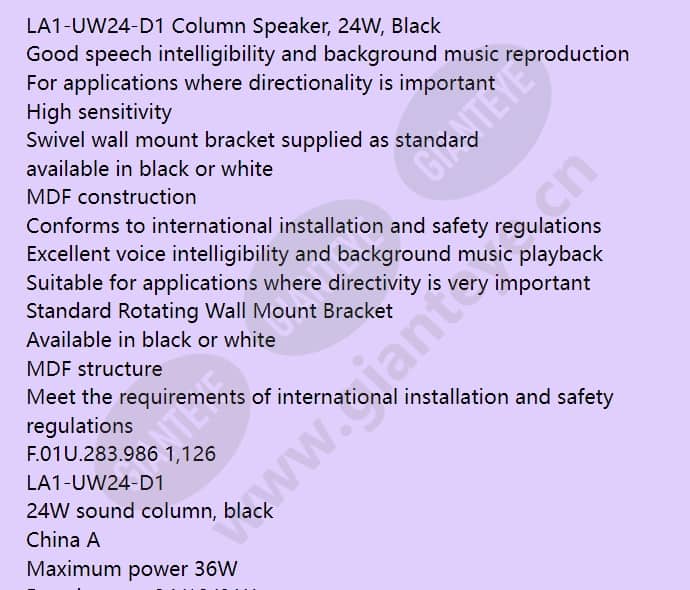

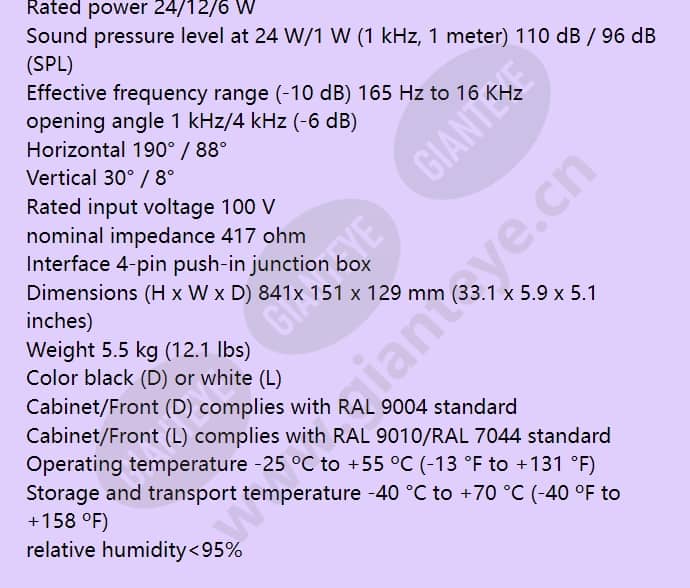

and safety regulations F.01U.283.986 1,126 LA1-UW24-D1 24W sound column, black China A Maximum power 36W Rated power 24/12/6 W Sound pressure level at 24 W/1 W (1 kHz, 1 meter) 110 dB / 96 dB (SPL) Effective frequency range (-10 dB) 165 Hz to 16 KHz opening angle 1 kHz/4 kHz (-6 dB) Horizontal 190° / 88° Vertical 30° / 8° Rated input voltage 100 V nominal impedance 417 ohm Interface 4-pin push-in junction box Dimensions (H x W x D) 841x 151 x 129 mm (33.1 x 5.9 x 5.1 inches) Weight 5.5 kg (12.1 lbs) Color black (D) or white (L) Cabinet/Front (D) complies with RAL 9004 standard Cabinet/Front (L) complies with RAL 9010/RAL 7044 standard Operating temperature -25 ºC to +55 ºC (-13 °F to +131 °F) Storage and transport temperature -40 °C to +70 °C (-40 ºF to +158 ºF) relative humidity <95%
