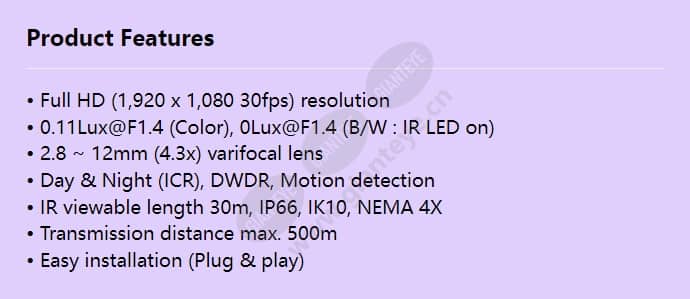

Samsung Hanwha SCO-6083R 1080p Analog HD IR Bullet Camera

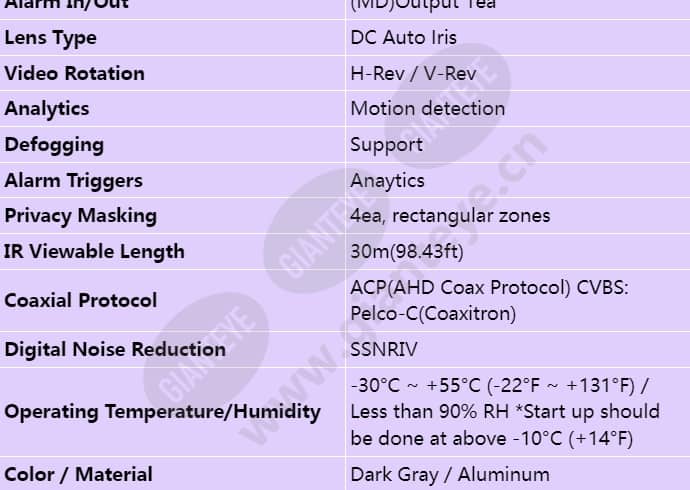

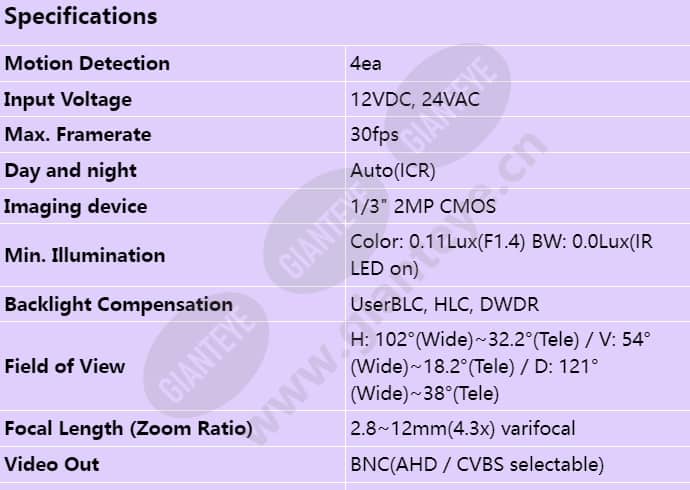

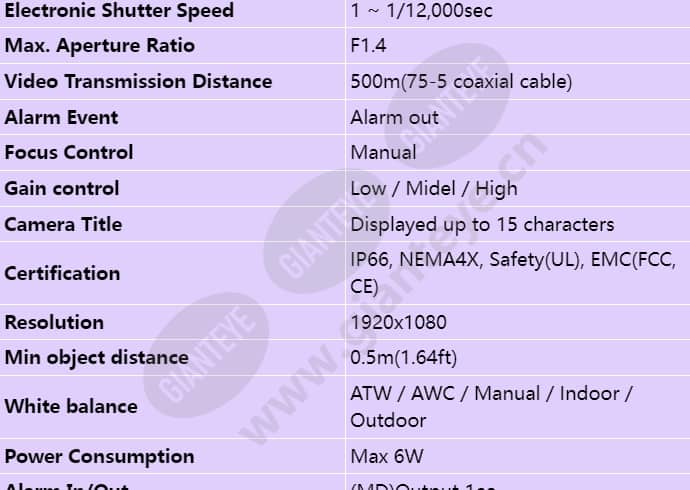

Day & Night Auto(ICR) Backlight Compensation UserBLC, HLC, DWDR Digital Noise Reduction SSNRⅣ Defog Support Motion Detection 4ea Privacy Masking 4ea, rectangular zones Gain Control Low / Midel / High White Balance ATW / AWC / Manual / Indoor / Outdoor Electronic Shutter Speed 1 ~ 1/12,000sec Video Rotation H-Rev / V-Rev Analytics Motion detection Alarm I/O (MD)Output 1ea Alarm Triggers Anaytics Alarm Events Alarm out IR Viewable Length 30m(98.43ft) Coaxial Protocol ACP(AHD Coax Protocol) CVBS: Pelco-C(Coaxitron) Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH *Start up should be done at above -10°C (+14°F) Certification IP66, NEMA4X, Safety(UL), EMC(FCC, CE) Input Voltage 12VDC, 24VAC Power Consumption Max 6W Color / Material Dark Gray / Aluminum
