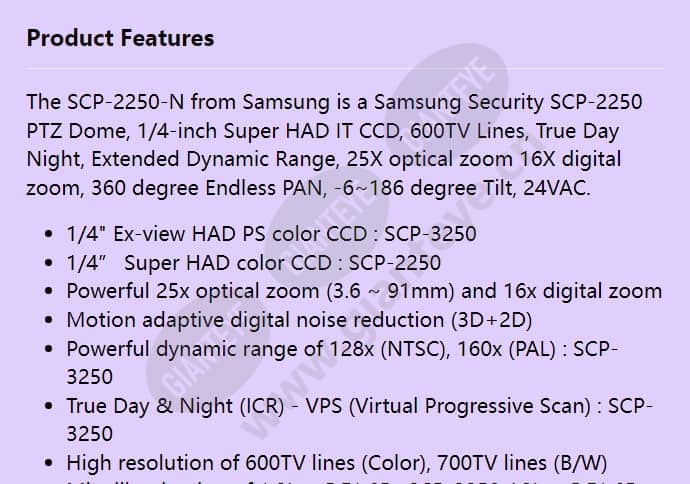

Samsung Hanwha SCP-2250H-N PTZ Dome Camera

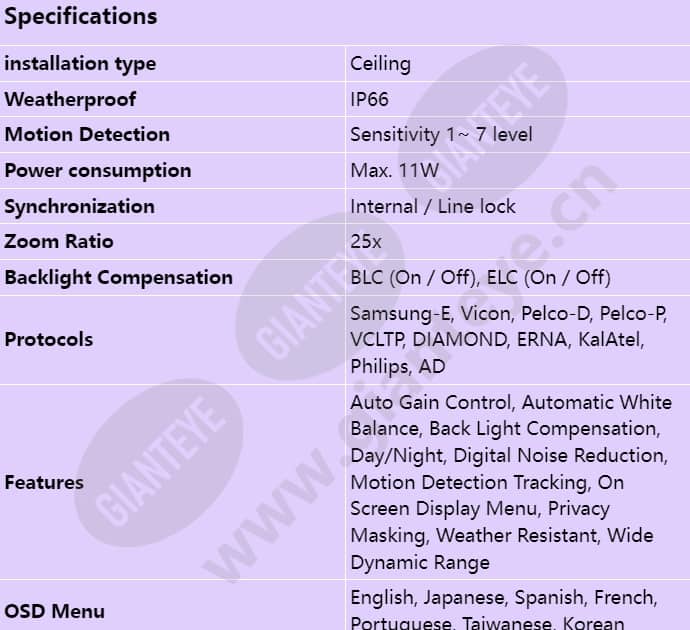

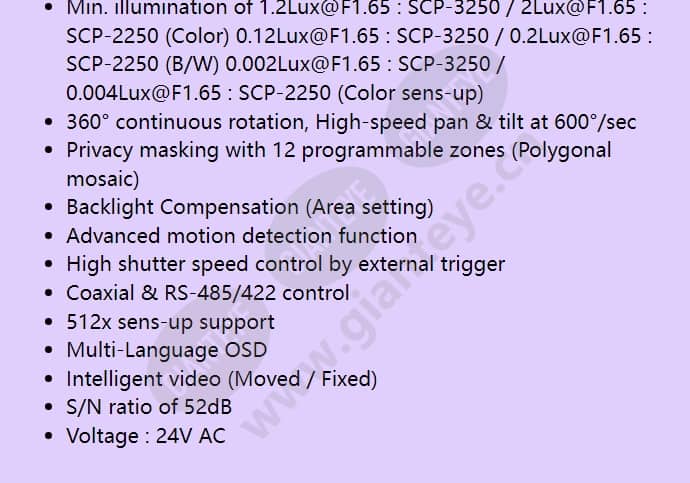

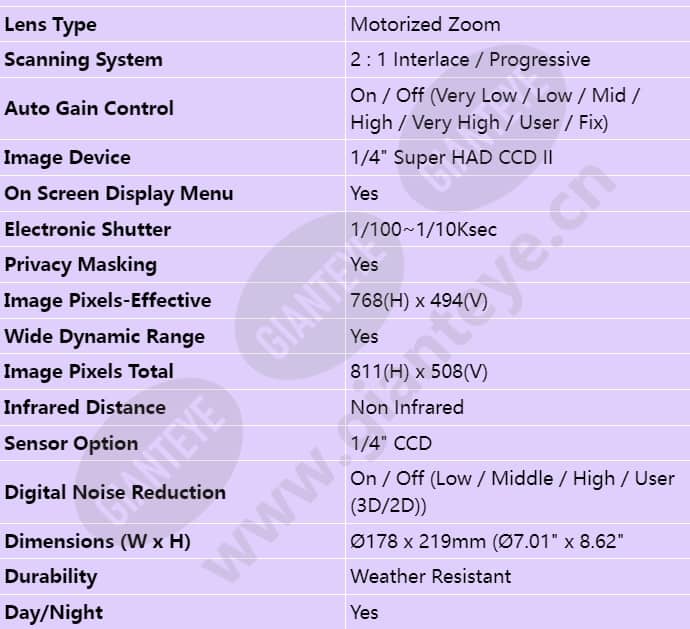

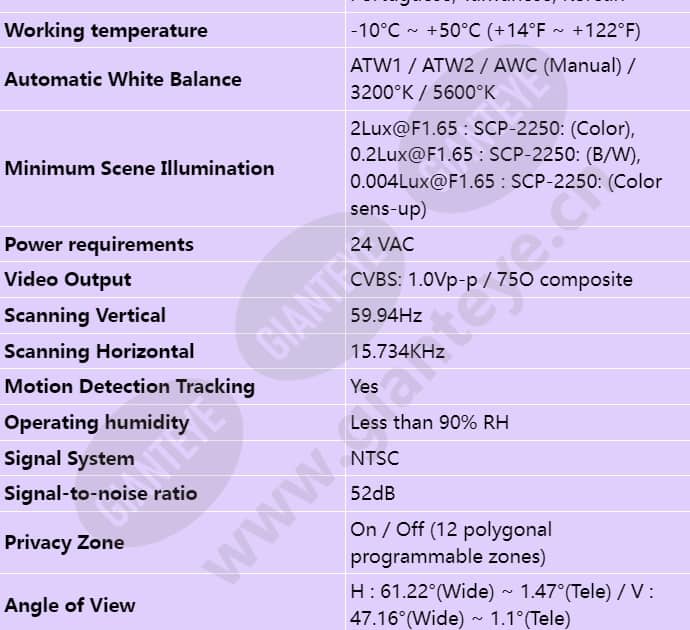

x H) Ø178 x 219mm (Ø7.01" x 8.62" Infrared Distance Non Infrared Sensor Option 1/4" CCD Image Pixels-Effective 768(H) x 494(V) S/N Ratio 52dB Protocols Samsung-E, Vicon, Pelco-D, Pelco-P, VCLTP, DIAMOND, ERNA, KalAtel, Philips, AD Privacy Zone On / Off (12 polygonal programmable zones) Power Requirements 24 VAC Power Consumption Max. 11W OSD Menu English, Japanese, Spanish, French, Portuguese, Taiwanese, Korean Operating Temperature -10°C ~ +50°C (+14°F ~ +122°F) Operating Humidity Less than 90% RH Minimum Scene Illumination 2Lux@F1.65 : SCP-2250: (Color), 0.2Lux@F1.65 : SCP-2250: (B/W), 0.004Lux@F1.65 : SCP-2250: (Color sens-up) Mount Type Ceiling On Screen Display Menu Yes Privacy Masking Yes Wide Dynamic Range Yes Motion Detection Tracking Yes Back Light Compensation Yes Day/Night Yes
