Samsung Hanwha SCV-2060 1/3 inch High Resolution Vandal-resistant Dome Camera

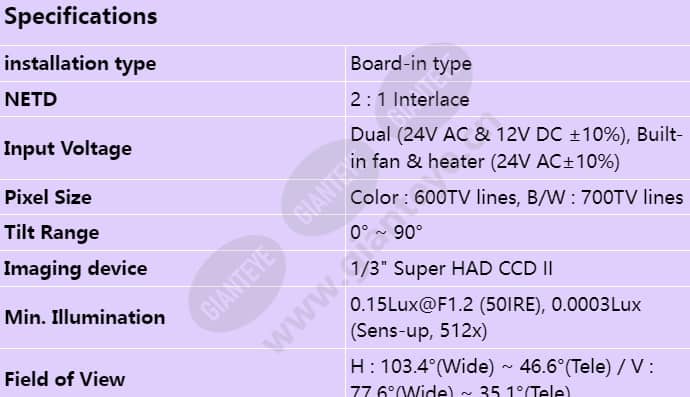

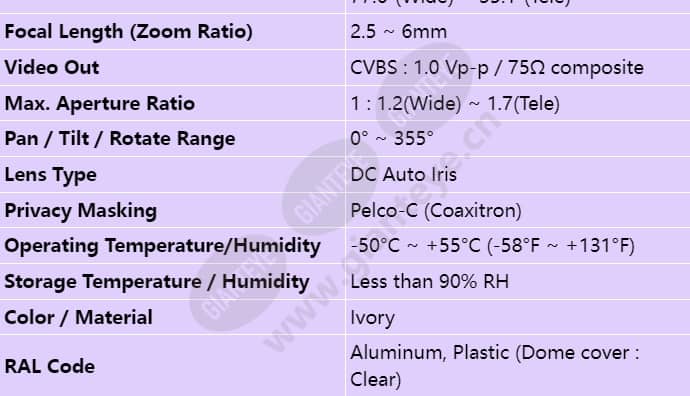

power Imaging Device 1/3" Super HAD CCD II NETD 2 : 1 Interlace Pixel Size Color : 600TV lines, B/W : 700TV lines Min. Illumination 0.15Lux@F1.2 (50IRE), 0.0003Lux (Sens-up, 512x) Video Out CVBS : 1.0 Vp-p / 75Ω composite Focal Length (Zoom Ratio) 2.5 ~ 6mm Max. Aperture Ratio 1 : 1.2(Wide) ~ 1.7(Tele) Angular Field of View H : 103.4°(Wide) ~ 46.6°(Tele) / V : 77.6°(Wide) ~ 35.1°(Tele) Lens Type DC Auto Iris Mount Type Board-in type Pan / Tilt / Rotate Range 0° ~ 355° Tilt Range 0° ~ 90° Privacy Masking Pelco-C (Coaxitron) Operating Temperature / Humidity -50°C ~ +55°C (-58°F ~ +131°F) Storage Temperature / Humidity Less than 90% RH Input Voltage Dual (24V AC & 12V DC ±10%), Built-in fan & heater (24V AC±10%) Color / Material Ivory RAL Code Aluminum, Plastic (Dome cover : Clear)
