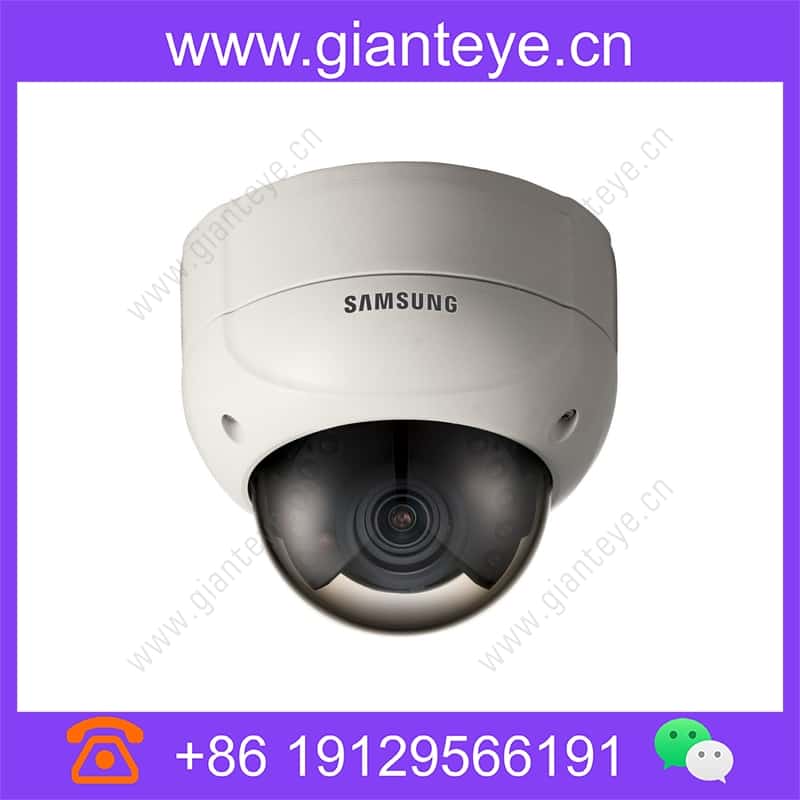

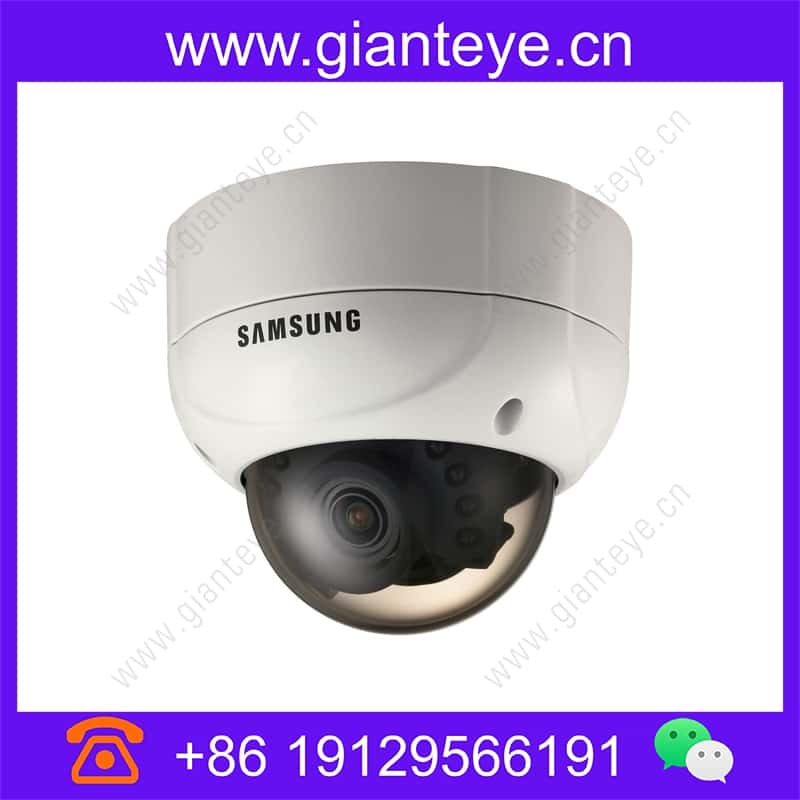

Samsung Hanwha SCV-2080R High Resolution IR LED Vandal-resistant Dome Camera

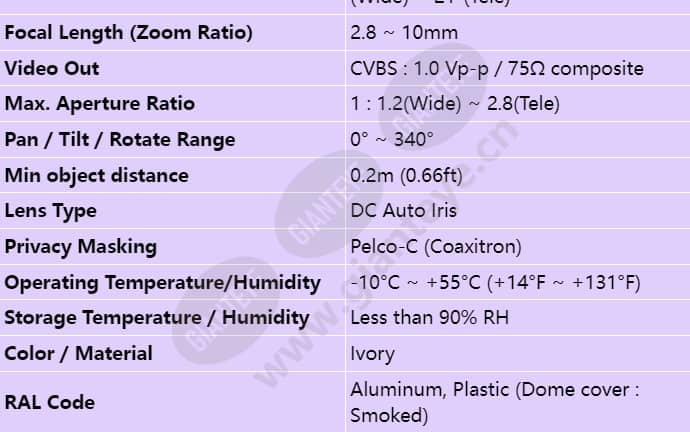

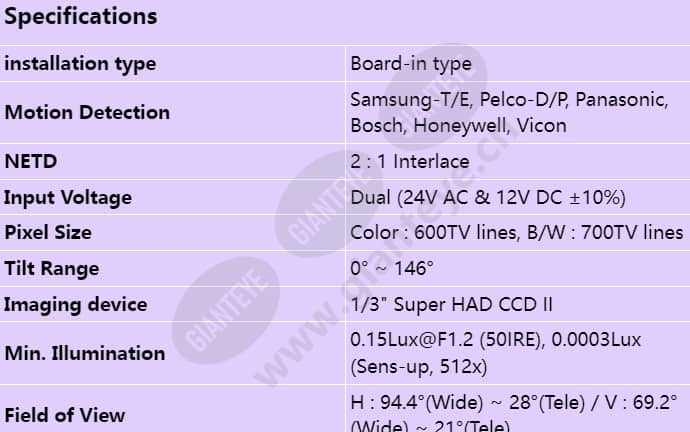

Size Color : 600TV lines, B/W : 700TV lines Min. Illumination 0.15Lux@F1.2 (50IRE), 0.0003Lux (Sens-up, 512x) Video Out CVBS : 1.0 Vp-p / 75Ω composite Focal Length (Zoom Ratio) 2.8 ~ 10mm Max. Aperture Ratio 1 : 1.2(Wide) ~ 2.8(Tele) Angular Field of View H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele) Min. Object Distance 0.2m (0.66ft) Lens Type DC Auto Iris Mount Type Board-in type Pan / Tilt / Rotate Range 0° ~ 340° Tilt Range 0° ~ 146° Motion Detection Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon Privacy Masking Pelco-C (Coaxitron) Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) Storage Temperature / Humidity Less than 90% RH Input Voltage Dual (24V AC & 12V DC ±10%) Color / Material Ivory RAL Code Aluminum, Plastic (Dome cover : Smoked)
