Samsung Hanwha SCV-2082R Premium Resolution IR Vandal-resistant Dome Camera

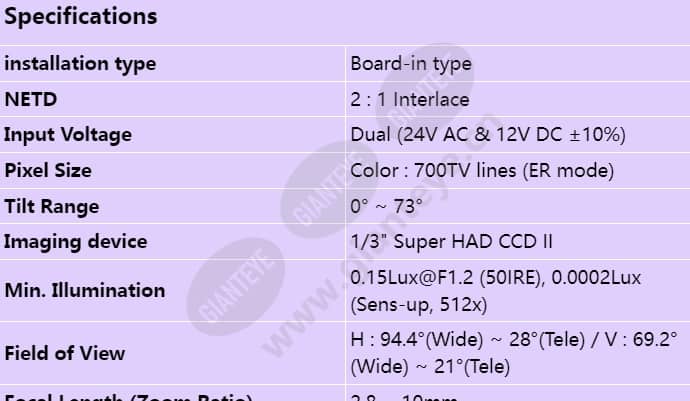

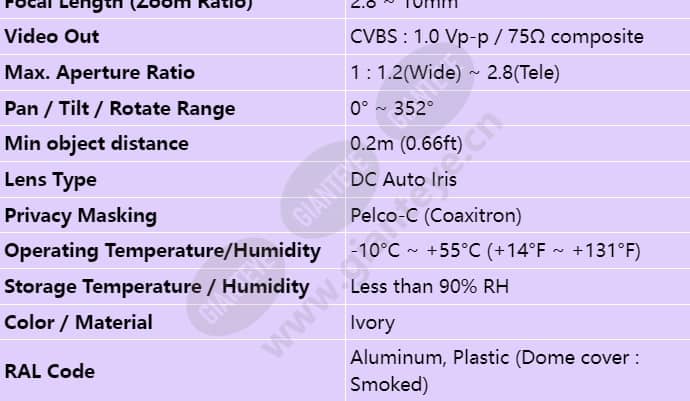

(Coaxitron), IP66 Grade Imaging Device 1/3" Super HAD CCD II NETD 2 : 1 Interlace Pixel Size Color : 700TV lines (ER mode) Min. Illumination 0.15Lux@F1.2 (50IRE), 0.0002Lux (Sens-up, 512x) Video Out CVBS : 1.0 Vp-p / 75Ω composite Focal Length (Zoom Ratio) 2.8 ~ 10mm Max. Aperture Ratio 1 : 1.2(Wide) ~ 2.8(Tele) Angular Field of View H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele) Min. Object Distance 0.2m (0.66ft) Lens Type DC Auto Iris Mount Type Board-in type Pan / Tilt / Rotate Range 0° ~ 352° Tilt Range 0° ~ 73° Privacy Masking Pelco-C (Coaxitron) Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) Storage Temperature / Humidity Less than 90% RH Input Voltage Dual (24V AC & 12V DC ±10%) Color / Material Ivory RAL Code Aluminum, Plastic (Dome cover : Smoked)
