Samsung Hanwha SCV-2120 12x High Resolution Vandal-resistant Dome Camera

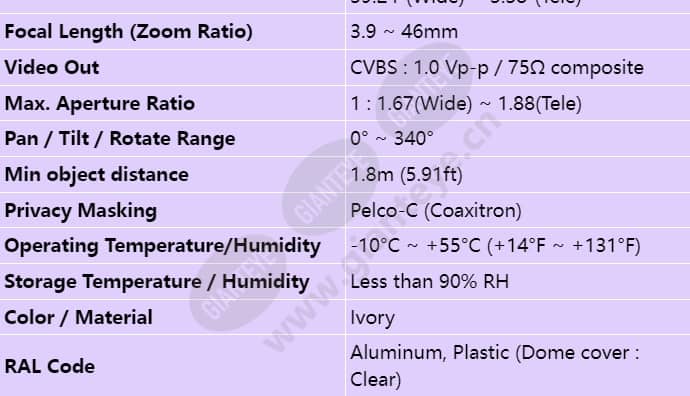

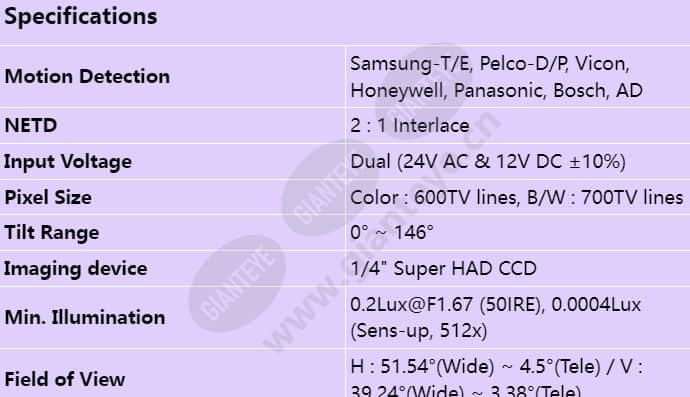

Super HAD CCD NETD 2 : 1 Interlace Pixel Size Color : 600TV lines, B/W : 700TV lines Min. Illumination 0.2Lux@F1.67 (50IRE), 0.0004Lux (Sens-up, 512x) Video Out CVBS : 1.0 Vp-p / 75Ω composite Focal Length (Zoom Ratio) 3.9 ~ 46mm Max. Aperture Ratio 1 : 1.67(Wide) ~ 1.88(Tele) Angular Field of View H : 51.54°(Wide) ~ 4.5°(Tele) / V : 39.24°(Wide) ~ 3.38°(Tele) Min. Object Distance 1.8m (5.91ft) Pan / Tilt / Rotate Range 0° ~ 340° Tilt Range 0° ~ 146° Motion Detection Samsung-T/E, Pelco-D/P, Vicon, Honeywell, Panasonic, Bosch, AD Privacy Masking Pelco-C (Coaxitron) Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) Storage Temperature / Humidity Less than 90% RH Input Voltage Dual (24V AC & 12V DC ±10%) Color / Material Ivory RAL Code Aluminum, Plastic (Dome cover : Clear)
