Samsung Hanwha XNP-C6403RW 2MP 40x AI PTZ Camera with built-in wiper

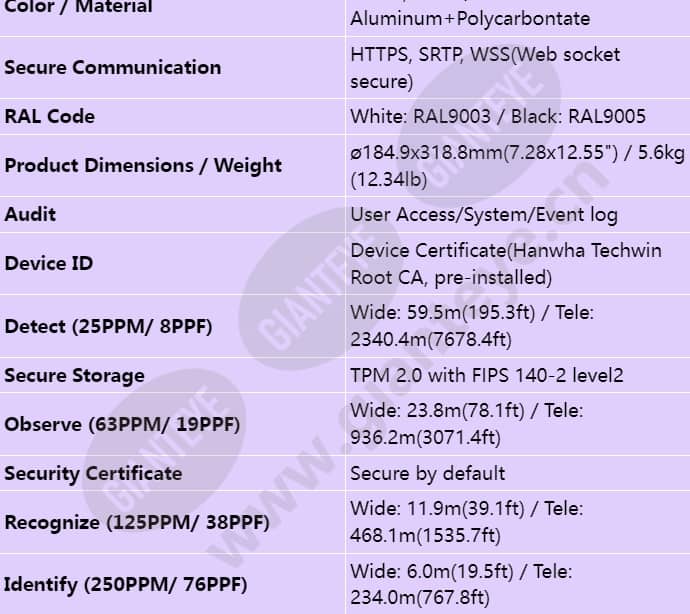

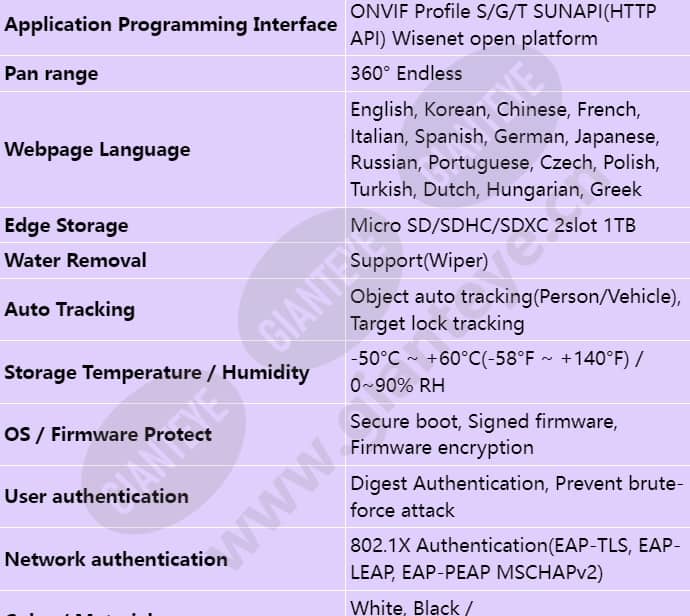

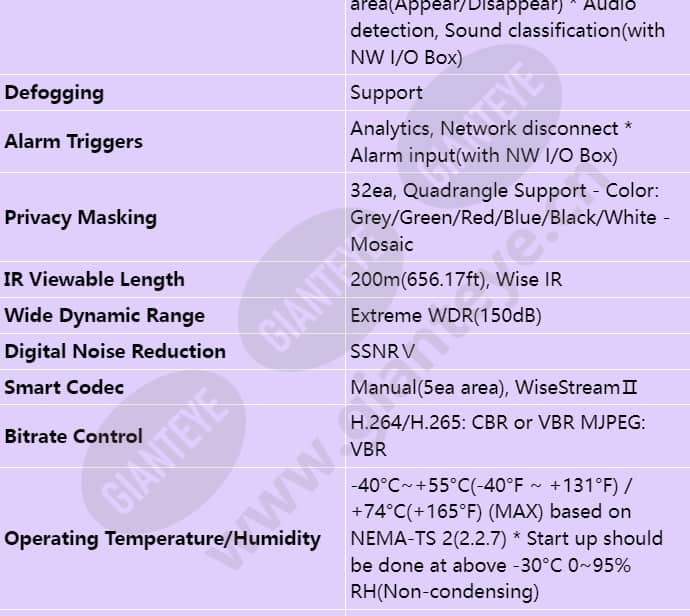

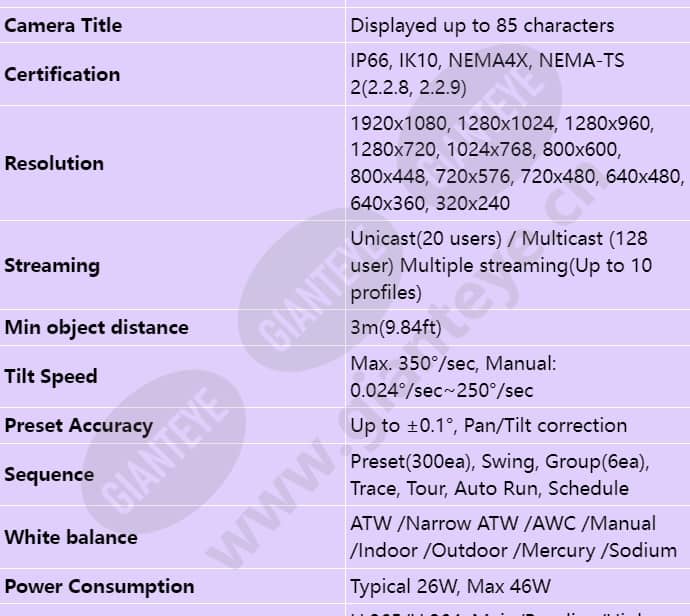

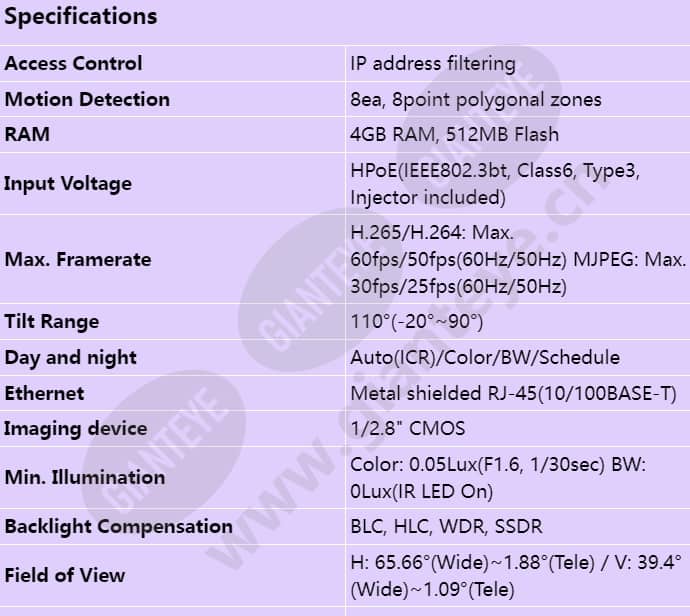

/ +74°C(+165°F) (MAX) based on NEMA-TS 2(2.2.7) * Start up should be done at above -30°C 0~95% RH(Non-condensing) Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / 0~90% RH Certification IP66, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9) Input Voltage HPoE(IEEE802.3bt, Class6, Type3, Injector included) Power Consumption Typical 26W, Max 46W Color / Material White, Black / Aluminum+Polycarbontate RAL Code White: RAL9003 / Black: RAL9005 Product Dimensions / Weight ø184.9x318.8mm(7.28x12.55") / 5.6kg (12.34lb) Detect (25PPM/ 8PPF) Wide: 59.5m(195.3ft) / Tele: 2340.4m(7678.4ft) Observe (63PPM/ 19PPF) Wide: 23.8m(78.1ft) / Tele: 936.2m(3071.4ft) Recognize (125PPM/ 38PPF) Wide: 11.9m(39.1ft) / Tele: 468.1m(1535.7ft) Identify (250PPM/ 76PPF) Wide: 6.0m(19.5ft) / Tele: 234.0m(767.8ft)
